Thermocouple Extension Cables – Ninomiya Fiber Glass 1-Pair (Round Type)

Features

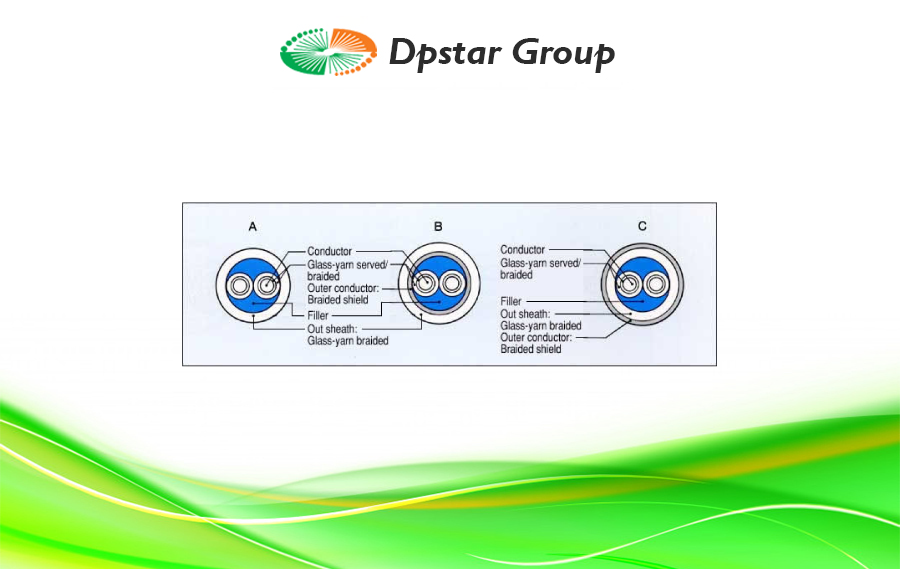

4 (2 pairs) elemental compensating wires are served and braided with glass-yarn　separately to be insulated, stranded together with inclusion after stranded in pairs,　shielded with tin-coated annealed copper wires (B), braided with glass-yarn, and　braided with stainless wires (C) for protection at the outermost.

Enquiry
Category:
Love0

4 (2 pairs) elemental compensating wires are served and braided with glass-yarn　separately to be insulated, stranded together with inclusion after stranded in pairs,　shielded with tin-coated annealed copper wires (B), braided with glass-yarn, and　braided with stainless wires (C) for protection at the outermost.

Specification

Parts No. Construction No. of pairs Conductor Insulation OD of pair mm OD of cabling mm Shield
thickness
mm		 Sheath
thickness
mm		 Finished
OD
mm
Standing
No./mm		 OD
mm		 Thickness
mm		 OD
mm
12/0.18x1P □X-H=GBR A 1 12/0.18 0.7 0.4 1.5 3 － 0.3 － 3.6
12/0.18x1P □X-H-IS=GBR B 1 12/0.18 0.7 0.4 1.5 3 0.3 0.3 － 4.2
12/0.18x1P □X-H-SOS=GBR C 1 12/0.18 0.7 0.4 1.5 3 － 0.3 0.3 4.2
7/0.3x1P □X-H=GBR A 1 7/0.3 0.9 0.4 1.7 3.4 － 0.3 － 4
7/0.3x1P □X-H-IS=GBR B 1 7/0.3 0.9 0.4 1.7 3.4 0.3 0.3 － 4.6
7/0.3x1P □X-H-SOS=GBR C 1 7/0.3 0.9 0.4 1.7 3.4 － 0.3 0.3 4.6
20/0.18x1P □X-H=GBR A 1 20/0.18 1 0.4 1.8 3.6 － 0.3 － 4.2
20/0.18x1P □X-H-IS=GBR B 1 20/0.18 1 0.4 1.8 3.6 0.3 0.3 － 4.8
20/0.18x1P □X-H-SOS=GBR C 1 20/0.18 1 0.4 1.8 3.6 － 0.3 0.3 4.8
30/0.18x1P □X-H=GBR A 1 30/0.18 1.2 0.4 2 4 － 0.3 － 4.6
30/0.18x1P □X-H-IS=GBR B 1 30/0.18 1.2 0.4 2 4 0.3 0.3 － 5.2
30/0.18x1P □X-H-SOS=GBR C 1 30/0.18 1.2 0.4 2 4 － 0.3 0.3 5.2
7/0.45x1P □X-H=GBR A 1 7/0.45 1.35 0.4 2.15 4.3 － 0.35 － 5
7/0.45x1P □X-H-IS=GBR B 1 7/0.45 1.35 0.4 2.15 4.3 0.3 0.35 － 5.6
7/0.45x1P □X-H-SOS=GBR C 1 7/0.45 1.35 0.4 2.15 4.3 － 0.35 0.3 5.6
4/0.65x1P □X-H=GBR A 1 4/0.65 1.57 0.4 2.37 4.74 － 0.35 － 5.5
4/0.65x1P □X-H-IS=GBR B 1 4/0.65 1.57 0.4 2.37 4.74 0.3 0.35 － 6.1
4/0.65x1P □X-H-SOS=GBR C 1 4/0.65 1.57 0.4 2.37 4.74 － 0.35 0.3 6.1
7/0.65x1P □X-H=GBR A 1 7/0.65 1.95 0.4 2.75 5.5 － 0.35 － 6.2
7/0.65x1P □X-H-IS=GBR B 1 7/0.65 1.95 0.4 2.75 5.5 0.3 0.35 － 6.8
7/0.65x1P □X-H-SOS=GBR C 1 7/0.65 1.95 0.4 2.75 5.5 － 0.35 0.3 6.8

Please fill in □ with a type (symbol) of a compensating cable to order.
We also manufacture outer shields for tin-coated annealed copper wires (OS) . Please contact us with any requests.
