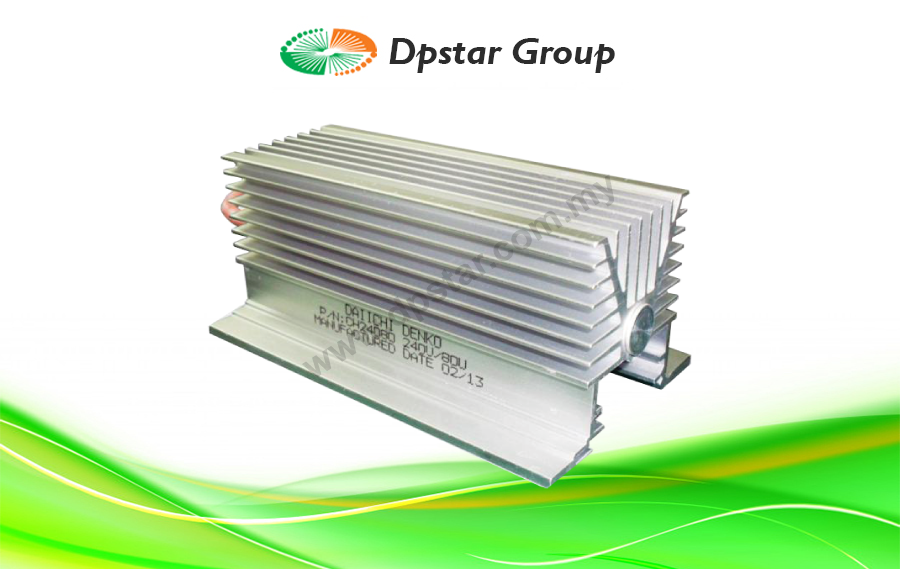

Daiichi Denko Anti-Condensation Heater – CH24060

Features

  • No thermostat is required.
  • Self regulated heating.
  • No moving parts to wear out.
  • Compact size and high watt density.
  • Uniform heat output.
  • Corrosion resistance aluminium.
  • Standard: IEC 60675
  • Easy mounting – All heater are simple to install on 35mm DIN rail.
Enquiry

Anti-condensation heater are suitable for installation in all enclosures and have been designed to protect equipment from water damage due to condensation. They are particularly important in cooler areas, or where the humidity is high. Relative air humidity of 65% and upwards, is considered to be problematic, if unaddressed, it can cause corrosion and failures of components such as relays, switch gear, PCBs and electromechanical assemblies. Mounting in the bottom part of the cabinet will increase efficiency. As for the position in relation to other components in the cabinet, a distance of at least 5cm to the sides and 3cm to the bottom is recommended.

Applications

  • Industrial Enclosure
  • Control and Monitoring Systems
  • Switch Cabinet
  • Panel Board
  • Free-standing electronic equipment & meters
  • Others

Specification

Rated Power Thermal Output 60W – 150W (others voltage and power rating available upon request)
Voltage 120VAC – 240VAC
Termination Silicone rubber (2 x 0.75mm²)
insulated cable
Profile Material Aluminum, natural anodized
Size 71 mm W x 55 mm H x 125 mm L71 mm W x 55 mm H x 200 mm L
Standard IEC 60675

Download

Daiichi Denko CH24060 – Anti-Condensation Heater_DpstarGroup
