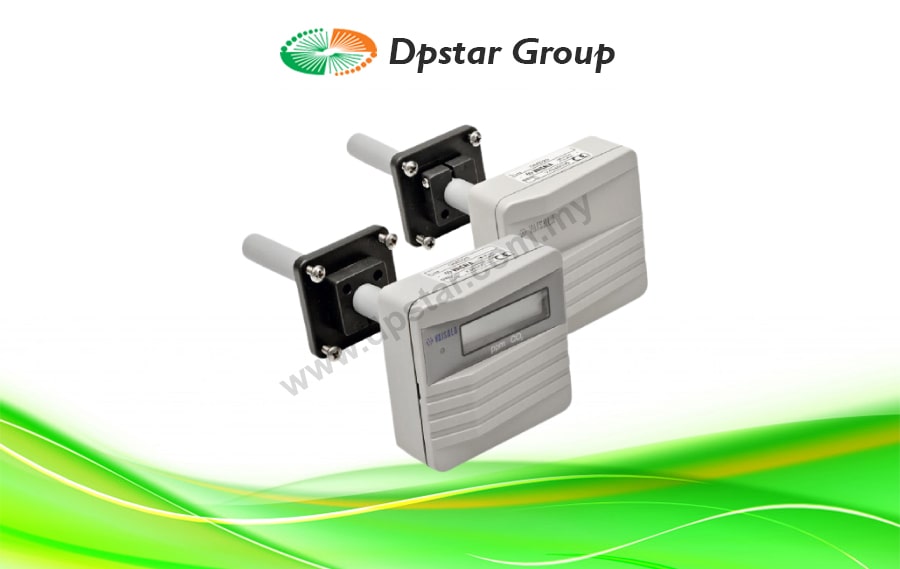

Vaisala GMD20 Series CO₂ Transmitter

Features

  • Versatile transmitters
  • Reliable measurement with sensor inside the duct
  • Incorporates Vaisala CARBOCAP sensor – the silicon-based NDIR sensor
  • Excellent long-term stability
  • Negligible temperature dependence
  • Ease of installation
  • Leak insensitive in-duct measurement
  • Five years recommended calibration interval
  • Warranty time 2 years
Enquiry
Category:

Dpstar is a leading supplier of environmental measurement sensors for temperature, relative humidity, pressure, dew point, CO2, and other environmental condition monitoring for industrial process application and research. Since the ’90s, we earned a reputation as a trusted partner to our clients through our commitment and dedication. We are an authorized distributor and supplier of measuring sensors solutions from renowned manufacturers Vaisala. Vaisala is a global leader in environmental and industrial measurement. Building on 80 years of experience, Vaisala provides observations for a better world. Vaisala is a reliable partner for customers around the world, offering a comprehensive range of innovative observation and measurement products and services.

The duct-mounted Vaisala CARBOCAP Carbon Dioxide Transmitter Series GMD20 are specially designed for demand-controlled ventilation (DCV). They are easy to install and require no maintenance. The GMD20 transmitters use the silicon-based Vaisala CARBOCAP Sensor. The simple structure and reference measurement capabilities make this Single-Beam, Dual-Wavelength NDIR sensor extremely stable and reliable. The CO2 concentration is measured inside the duct without risks for leaks or wrong flow direction affecting the measurement. In addition, the measurement accuracy is not affected by dust, water vapor, and most chemicals.  A 5-year warranty is valid for instruments purchased in 2021 and beyond. The GMD20 series transmitters can be used independently or incorporated into building energy management systems. The series consists of duct mount units GMD20 and GMD20D. Version D has a display. The duct units’ compact sensor head design fits inside the ventilation duct, eliminating the risk of leaking gaskets and measurement errors.

Dimensions

Key Benefits

Economical Choice

Using the GMD20 series transmitters ensures the best possible control of air quality and results in considerable savings in energy consumption, maintenance, and recalibration costs.

Vaisala CARBOCAP Technology

The GMD20 series transmitters use the silicon-based Vaisala CARBOCAP sensor. The simple structure and reference measurement capabilities make this single-beam, dual-wavelength NDIR sensor extremely stable and reliable. The temperature and flow dependencies of the sensor are negligible. In addition, the measurement accuracy is not affected by dust, water vapor, and most chemicals.

Versatile Transmitters

The GMD20 series transmitters can be used independently or incorporated into building energy management systems. The series consists of duct mount units GMD20 and GMD20D. Version D is equipped with a display. The compact sensor head design of the duct units fits inside the ventilation duct, eliminating the risk of leaking gaskets and measurement errors. In addition to the standard 0 … 20 mA, 4 … 20 mA, and 0 … 10 V outputs, there are two other options: one LonWorks interface and a relay output. The relay output is standard with the display units.

Improve Indoor Air at Minimal Energy Costs

The use of GMD20 series transmitters ensures the best possible control of air quality and results in considerable savings in energy consumption, maintenance, and recalibration costs.



Download

GMD20 Series CO₂ Transmitter – Vaisala_DpstarGroup
