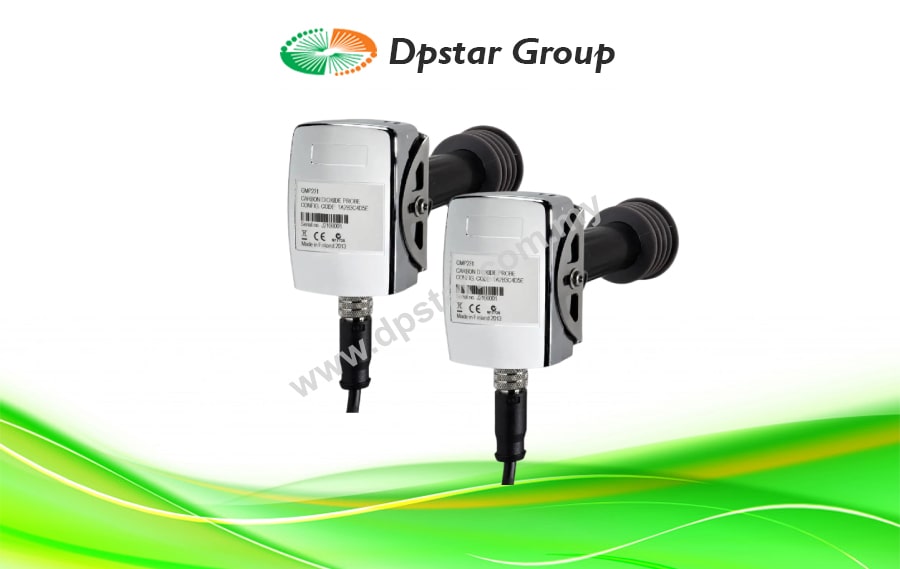

Vaisala GMP231 CO₂ Probe

Features

  • Maximum temperature durability +195 °C (+383 °F).
  • Incubator can be heat sterilized with probe in place, saving time and reducing risk of crosscontamination.
  • Heat durability and excellent long-term stability with next generation CARBOCAP sensor.
  • Designed for OEM use in CO2 incubators – installation options available.
  • CO2 sensor measurement optimized for 5 % CO2 measurement range up to 20 % CO2
  • 4-point traceable calibration for CO2..
Enquiry
Category:

Dpstar is a leading supplier of environmental measurement sensors for temperature, relative humidity, pressure, dew point, CO2, and other environmental condition monitoring for industrial process application and research. Since the ’90s, we earned a reputation as a trusted partner to our clients through our commitment and dedication. We are an authorized distributor and supplier of measuring sensors solutions from renowned manufacturers Vaisala. Vaisala is a global leader in environmental and industrial measurement. Building on 80 years of experience, Vaisala provides observations for a better world. Vaisala is a reliable partner for customers around the world, offering a comprehensive range of innovative observation and measurement products and services.

The Vaisala CARBOCAP Carbon Dioxide Probe GMP231 is designed to provide incubator manufacturers with accurate and reliable carbon dioxide measurements and sterilization durability at high temperatures, up to 180 °C. The GMP231 probe is based on Vaisala’s patented CARBOCAP technology and a new type of infrared (IR) light source.  The GMP231 probe’s sensor performance is optimized at 5 % CO2  but the sensor measures CO2 up to 20 % with high accuracy. The GMP231 is t’s installed through the incubator wall; only the IR sensor and optical components are exposed to the incubation environment.  In addition, the GMP231 can measure pressure and temperature for CO2 measurement compensation purposes, ensuring the product remains stable and accurate in all CO2 incubation conditions. The sensor is made of highly durable materials to achieve outstanding stability over both time and temperature. Since water vapor, dust, and most chemicals do not affect measurements, the GMP231 module is ideal for CO2 incubator environments.

Dimensions

Key Benefits

Lower Risk Of Cross-Contamination

The incubator can be sterilized with the GMP231 probe in place. There is no need to decontaminate the probe separately. In addition to reducing the risk of contamination, this also saves time.

Stable & Accurate

The materials used in the GMP231 and also the internal pressure and temperature measurements all contribute to the excellent stability and accuracy of the sensor.

Download

Vaisala GMP231 CO₂ Probe_DpstarGroup
