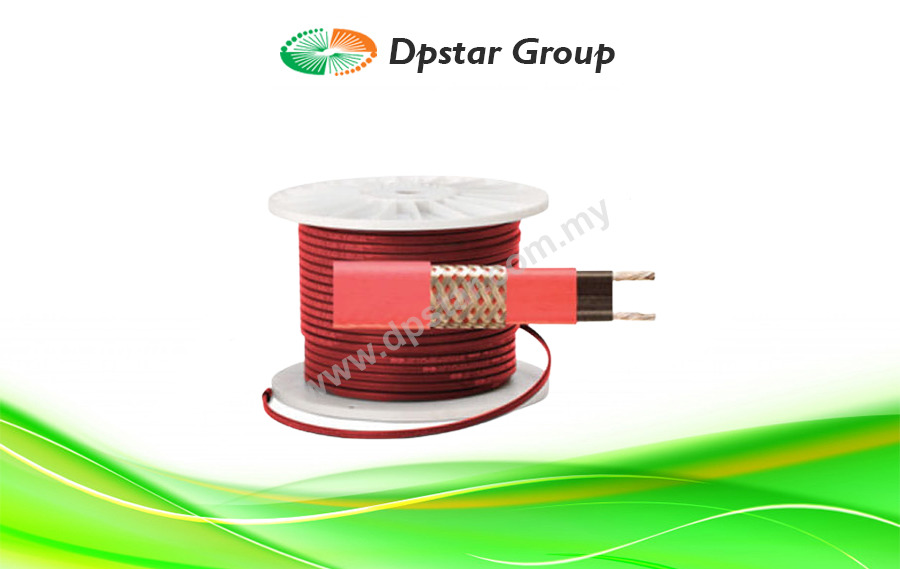

Chromalox SLL Series Long Line Heat Trace

Features

  • Exceeds limitations of parallel resistance cables.
  • Field splices can be performed easily in minutes with no scrap or wasted cold sections.
  • With lower installed cost than steam tracing, SLL features less maintenance expense and downtime.
  • Chromalox termination, splice, tee, and end seal kits reduce installation time.
Enquiry

Chromalox SLL Series Long Line cable provides safe, reliable heat tracing for process temperature maintenance and freeze protection of pipes, valves, tanks, and similar applications. Constructed of industrial grade 16, 14, 12 or 10 AWG buss wire with metal braid and fluropolymer overjacketing, SLL ensures operating integrity in most hostile industrial environments. The 450°F (232°C) maximum exposure temperature rating allows steam cleaning of process equipment with up to 300 psig steam.

  • 16, 14, 12, 10 AWG Buss Wire
  • Circuit Lengths up to 7,500 Feet (2,286m)
  • Minimum Install Temperature -40°F (-40°C)
  • Maximum Continuous Exposure Temperature, Power Off, 450°F (232°C)
  • Industrial Process Maintenance Applications
  • Industrial Freeze Protection Applications
  • Steam Cleanable on Process Equipment Up to 300 PSIG
  • Outputs up to 12 W/Ft.
  • 120 – 600 Volt from Stock
  • Approximate Size 3/8″W x 1/8″H
  • Minimum Bend Radius 1-1/8″
  • For Use on Metallic Pipes Only

Construction

A.  Twin 16, 14, 12, 10 AWG Copper Buss Wires — Provide reliable electrical current capability.

B. High-Temperature Fluropolymer Core Matrix — Flame retardant, electrically insulates the matrix and provides corrosion resistance.

C. High-Temperature Fluoropolymer Jacket Flame retardant, electrically insulates the matrix and provides corrosion resistance.

D. Metallic Braid — Provides additional mechanical protection in any environment and a positive ground path.

E. High-Temperature Fluoropolymer Overjacket — Corrosion-resistant, flame retardant overjacket is highly effective in hostile, aqueous, and chemically active environments. It also protects against abrasion and impact damage.

Specification

Ordering Information
