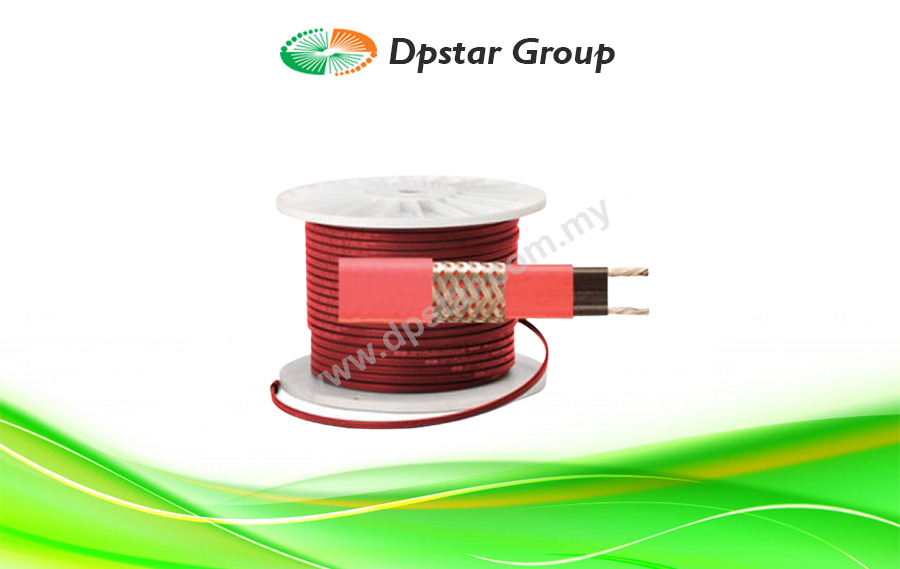

Chromalox HSRM Self-Regulating Medium Temperature

Features

  • Energy-efficient, self-regulating HSRM uses less energy when less heat is required.
  • Easy to install, HSRM can be cut to any length (up to max circuit length) in the field.
  • HSRM features lower installed cost than steam tracing, less maintenance expense, and less downtime.
  • HSRM can be overlapped without burnout, which simplifies heat tracing of in-line process equipment such as valves, elbows, and pumps.
  • Chromalox HL Connection Kits reduce installation time.
Enquiry

Chromalox HSRM self-regulating heating cable provides safe, reliable heat tracing for freeze protection of pipes, valves, tanks and similar applications. Constructed of industrial grade 16 AWG buss wire with a tinned copper braid and fluoropolymer overjacket, HSRM ensures operating integrity in Div. 1 hazardous environments. HSRM heating cable has a maximum maintenance temperature rating of 302°F (150°C) and a maximum exposure temperature of 420°F (215°C).

  • Self-Regulating, Energy Efficient
  • 16 AWG Buss Wire
  • Circuit Lengths to 750 Feet
  • Process Temperature Maintenance to 302°F (150°C)
  • Maximum Continuous Exposure Temperature, Power Off, 420°F (215°C)
  • Freeze Protection of Fire Protection System Piping
  • Available in 5, 8, 10, 15 and 20 Watts per Foot
  • 120 and 208-277 Volts Available
  • Division 1 Hazardous Locations
  • Approximate Size 3/8”W x 1/8”H
  • Minimum Bend Radius 1-1/8”
  • For Use on Metallic Pipes Only

Construction

A. Twin 16 AWG Copper Buss Wires— Provide reliable electric current capability.

B. Semiconductive Polymer Core Matrix— “Self-Regulating” component of the cable its electrical resistance varies with temperature. As process temperature drops, the core’s heat output increases; as process temperature rises, the heat output decreases.

C. Fluoropolymer Jacket— Flame-retardant electrically insulates the matrix and provides corrosion resistance.

D. Tinned Copper Braid— Provides additional mechanical protection in any environment and a positive ground path.

E. High-Temperature Fluoropolymer Overjacket— Corrosion resistant, flame retardant overjacket is highly effective in many environments. Protects against exposure to organic or corrosive solutions. The overjacket also protects against abrasion and impact damage.

Specification

Ordering Information
