Bending & Twisting Flexible Compensating Cables – Ninomiya VX-Super V

Features

“VX-super V” are VX (KCC) compensating cables used as lead wires of K (Chromel/Alumel) thermocouples which correspond with JIS C 1610-1995. This series is recommended to be used for wirings in moving parts of injection mold machines, robots and etc., because of its excellent flexibility for bending and twisting.

Enquiry
Category:
Love0

“VX-super V” are VX (KCC) compensating cables used as lead wires of K (Chromel/Alumel) thermocouples which correspond with JIS C 1610-1995. This series is recommended to be used for wirings in moving parts of injection mold machines, robots and etc., because of its excellent flexibility for bending and twisting.

Specification

Conductor Thin wires which VX (KCC) (copper nickel alloy for Copper-VX(KCC)) correspond with JIS C 1610-1995 and synthetic fiber are bound together. Excellent in flexibility.
Insulator and outer sheath Heat-resistant PVC is used for insulation, while bending and twisting flexible heat-resistant soft PVC is used for sheath. Color coding: red for + side and white for ? side of insulator; blue (JIS Section 2) for sheath.
Twin stranding Two insulators are stranded (twin stranding) and cotton is used as inclusion. This allows less adhesion, appropriate room for expansion inside the cable, and less burden to metal conductor.
Operating temperature -20℃ – +90℃

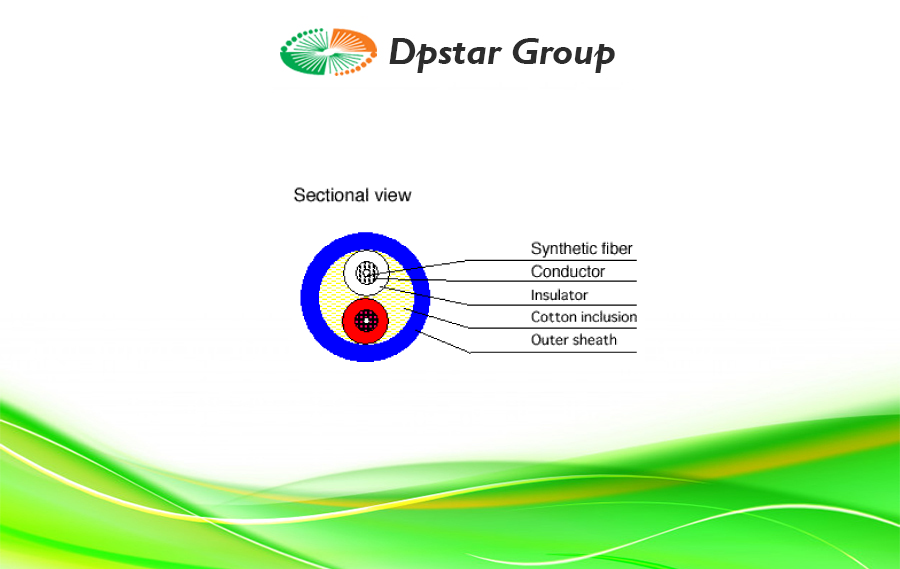

Construction
Sectional area nom. Conductor Insulator Twin stranding with cotton inclusion Coating Finished OD
mm２ No. of wires/Dia. of elemental wire
No./mm		 OD
mm		 Thickness
mm		 OD
mm		 OD
mm		 Thickness
mm		 OD
mm
0.5 45/0.12 1.2 0.5 2.2 4.4 0.8 6
Electrical Characteristics
Electromotive force Temperature tolerance
℃ 50 100 0℃～100℃
μV 2023 4096 　±100μＶ
Bending Test
Source No. of complete breaks
Ａ 45/0.12x1P VX-super V Bending and twisting flexible type 36,800
Ｂ 7/0.3x1P VX-G Parallel type (most commonly used) 350
Ｃ 30/0.18x1P vx-G-1S=VVR Shielded round type (standard product) 1,650
Ｄ 30/0.18x1P VX-G-IS=VV3R Soft PVC used for sheath material 3,080

Test method and equipment: PVC wire test (JIS C 3005, 18), bending test equipment
Test condition: Test type B (r=150mm, l=200mm) 20 rotations/1 min.
