PAC30Z Series is power regulator with a negligible warp in output waveform and extremely little noise. Since it is a 2-phase control, connection wiring is simple. Since it is an integral structure, installation work is simple. We have 9 types of rated current from 18 A to 300 A. An alarm output and a protective circuit are standard features. You can select a cover for prevention against electric shock.

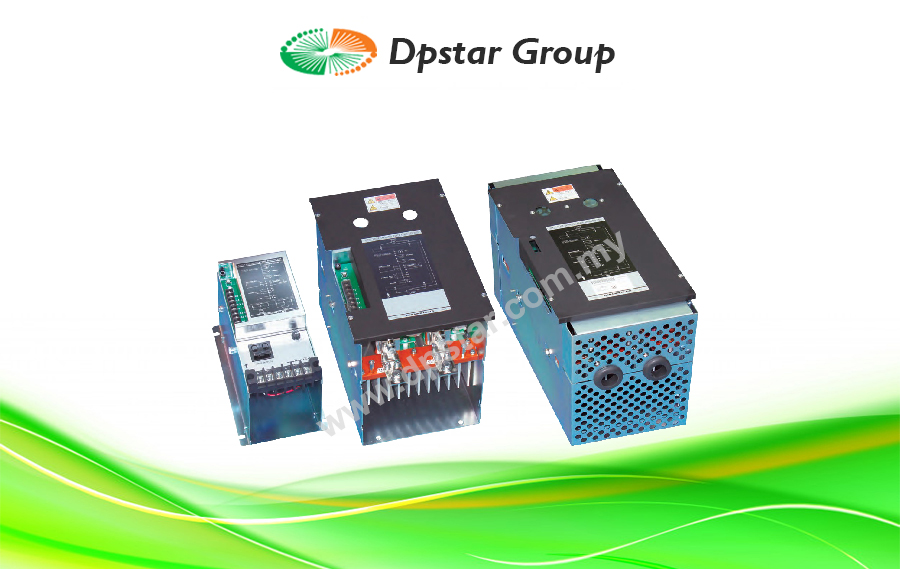

Three Phase Power Regulator – Shimaden PAC30Z Series
Features
- Easy Wiring With 2-Phase Control
- Low-Noise Design
- Wide Capacity Selection (18~135A)
- Alarm Output Standard Feature
Specification
| Control input | 4~20mA DC and contact common |
| Current capacity | 18A, 20A, 30A, 45A, 60A, 90A or 135A |
| Power Supply | 200~220V, 220~240V, 380~400V or 400~440V AC |
| Control Mode | 2-phase type zero voltage switching |
| Control Cycle | 2~4 sec. adjustable |
| Possible Load | Constant resistance loads |
| Power Control Range | 0~95% min |
| Output indication | Green LED |
| Power Adjuster | Internal installation as standard (External installation available as option) |
| Over-Current Protection | |
| Circuit protection | 20A, 30A, 45A / 200~240V AC, 18A / 380~440V AC |
| Rapid fuse type | 60A, 90A, 135A / 200~440V AC, 35A, 45A / 380~440V AC |
| Alarm Output | Output terminals ‘ON’ during over-current |
| Alarm Output Contact Capacity | 250V AC 1A / inductive load |
| Cooling Method | By natural air (18A~90A), fan cooling (135A) |
| Operating Ambient Temperature Range | -10~+50°C |
| Operating Ambient Humidity | 90% RH max. |
| Insulation Resistance | 500V DC 20MΩ min. between power supply terminals and chassis |
| 500V DC 20MΩ min. between power supply terminals and input terminals | |
| Dielectric Strength | |
| 200~240V AC type | 1 min. at 2000V AC between power supply terminals and chassis |
| 380~440V AC type | 1 min. at 2500V AC between power supply terminals and chassis |
| External Dimensions | See diagram on pages143 |
| Weight | 18~45A type: Approx. 5.3kg |
| 60~135A type: Approx. 12.0kg |
Ordering Information
| ITEM | CODE | SPECIFICATIONS | |||||||||||
| SERIES | PAC30Z | Zero Voltage Switching (3-Phase) | |||||||||||
| Control Input | 5 | 4~20mA DC or contact signal | |||||||||||
| 9 | Others (Please consult bofore ordering.) | ||||||||||||
| Current Capacity | Capacity | 200~220V | 220~240V | 380~400V | 400~440V | ||||||||
| 018 | 18A | – | – | 11.8kVA | 12.5kVA | ||||||||
| 020 | 20A | 7kVA | 7.7kVA | – | – | ||||||||
| 030 | 30A | 10kVA | 11kVA | 19kVA | 20kVA | ||||||||
| 045 | 45A | 15kVA | 16.5kVA | 29kVA | 30kVA | ||||||||
| 060 | 60A | 20kVA | 22kVA | 39kVA | 40kVA | ||||||||
| 090 | 90A | 30kVA | 33kVA | 59kVA | 60kVA | ||||||||
| 135 | 135A | 45kVA | 49.5kVA | 88kVA | 90kVA | ||||||||
| 200 | 200A | 70kVA | 77kVA | 133kVA | 140kVA | ||||||||
| 300 | 300A | 100kVA | 110kVA | 190kVA | 200kVA | ||||||||
| 999 | Others (Please consult bofore ordering.) | ||||||||||||
| Power Supply | 15- | 200 ~ 220V AC ±10% 50/60Hz | |||||||||||
| 16- | 220 ~ 240V AC ±10% 50/60Hz | ||||||||||||
| 17- | 380 ~ 400V AC ±10% 50/60Hz | ||||||||||||
| 18- | 400 ~ 440V AC ±10% 50/60Hz | ||||||||||||
| 99- | Others (Please consult bofore ordering.) | ||||||||||||
| Prevention Cover For Electrical Shock (Option) | 1 | With | |||||||||||
| 0 | Without | ||||||||||||
| External Power Adjuster (Option) | 0 | None (Internal standard) | |||||||||||
| 3 | With (B10k Ohm) | ||||||||||||
| 9 | Others (Please consult bofore ordering.) | ||||||||||||
| Control Indicator (Option) | 0 | Without | |||||||||||
| 1 | With (0~ 1mA DC, 0~ 10% scale) | ||||||||||||
| REMAKRS | 0 | Without | |||||||||||
| 9 | With (Please consult before ordering.) | ||||||||||||
