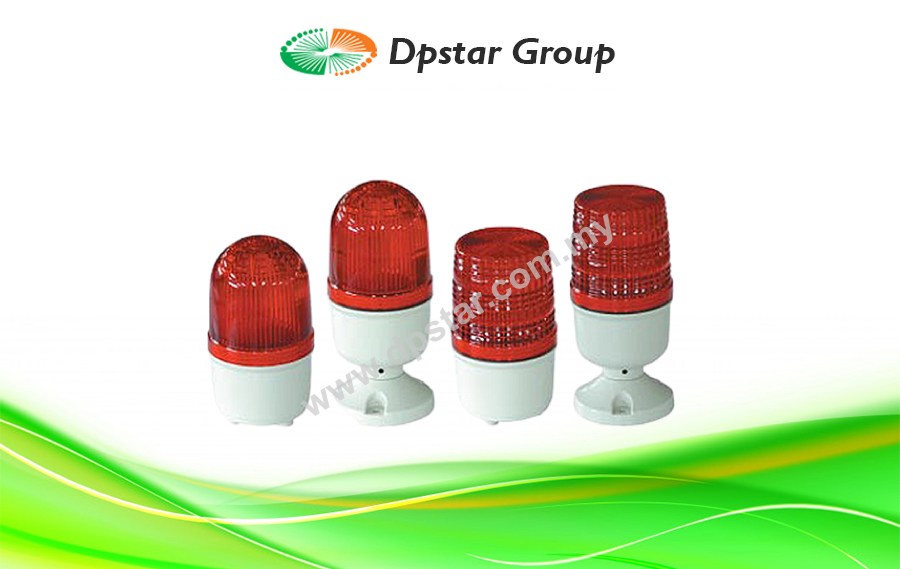

Warning Light – Hanyoung Nux SLB

Features

– Continuous light and buzzer selection by the external signal
– Long life expectancy by the HID LED light source
– Select Ø60 round type cap, rectangular type cap, direct installation, supporter mounting installation
– Economical price, simple installation structure
– Solid poly-carbonate material protective cap
– Degree of protection IP54

Enquiry
Categories: , , ,
Love0

Features

– Continuous light and buzzer selection by the external signal
– Long life expectancy by the HID LED light source
– Select Ø60 round type cap, rectangular type cap, direct installation, supporter mounting installation
– Economical price, simple installation structure
– Solid poly-carbonate material protective cap
– Degree of protection IP54

Specification

Model SLB060-RA , SLB060-PA
SLB060-PF		 SLB060-XA , SLB060-FA
SLB-060-FF
Appearance
Dimension Round type cap (Ø70) Rectangular type cap (Ø70)
Power supply voltage 24 V d.c/a.c, 100 – 240 V a.c 50 – 60 Hz
Power consumption Max 2 W (24 V d.c/a.c), Max 3.5 W (100 – 240 V a.c)
Flickering speed Approx 60 times/min
Light source LED
Buzzer sound
: PLAY :STOP ※ Please press button to listen buzzer
Buzzer 2 types of buzzer melodies (single melody, beeping), volume 80 ㏈ (1 m distance)
Material Protective cap: acryl resin, Body: ABS resin
Cap color Red, Yellow, Green
Degree of protection IP54

Ordering Code

Model Code Description
SLB –  Signal light
Dimension 060  Ø70 cap
Design
and
function		 RA  Round type cap supporter mounting installation  Only for Continuous light
XA  Rectangular type cap supporter mounting installation
PA  Round type cap direct installation
FA  Rectangular type cap direct installation
PF  Round type cap direct installation  Continuous light,
flashing light and buzzer
(selected by the external signal)
FF  Rectangular type cap direct installation
Power supply voltage C51  24 V d.c/a.c 50 – 60 Hz
A11  100 – 240 V a.c. 50 -60 Hz
Cap color R  Red
Y  Yellow
G  Green

Download

Hanyoung Nux SLB (Ø60) Signal Light LED type-DpstarGroup
