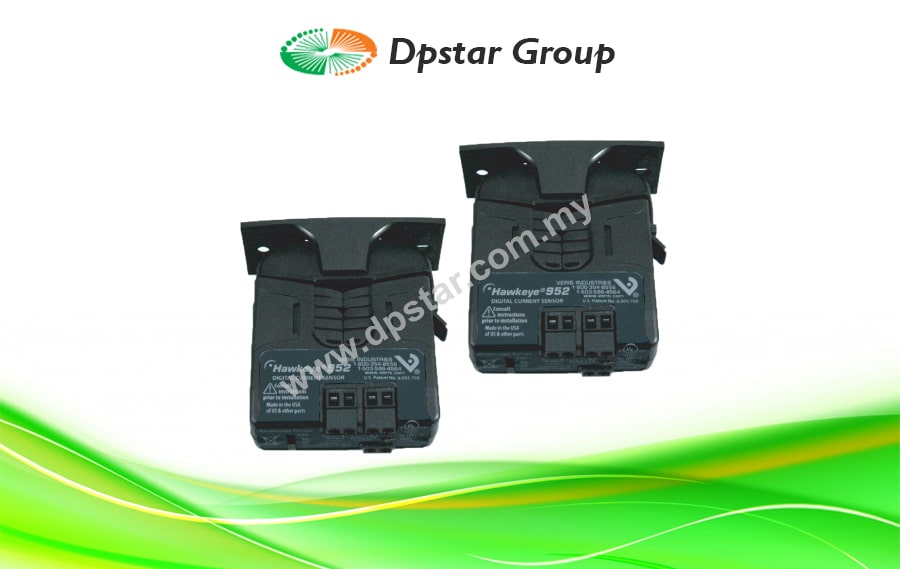

Veris H952 Current Transducer

Features

  • Self-powered analog current transducer with integral start/stop command relay
  • Reduces the number of installed components, saves time and space
  • Self-gripping, split-core design for fast retrofit installation, no need to remove conductor
  • Reduces installation charges – one device to install for start/stop and status
  • No external power required for current sensor
  • Selectable factory calibrated ranges up to 120 A for increased flexibility and resolution
  • Induced from monitored conductor sensor power
Enquiry
Category:
Love0

Veris Industries is an energy and environmental sensor partner that provides quality products for commercial HVAC and other automation applications. We offer complete lines of reliable, long-lasting innovative power monitoring products.

The Hawkeye H952 series provides accurate load trending information with a proportional 0 to 5 VDC output signal. This feature combined with an integrated command relay makes these products ideal for start/stop and status monitoring of motors. The relay is fully isolated from the current sensor and all relay connections are externally available for maximum flexibility.

Dimensional Drawing


Wiring Diagram

Applications

  • Load trending
  • Motor control
  • Fan/pump status

Specification

Model H952
Application Building Automation Systems
Current Measurement Accuracy  0 – 30 A | 0 – 60 A | 0 – 120 A
Current Sensor type Current Transducer, AC
Electrical Wiring Size  24 – 14 AWG (0.2 – 2.1 mm²)
Measurement Type  AC Current
Monitored Frequency Range 50 – 60 Hz
Monitored Wire Size 0.8″ (21 mm)
Mounting Split Core
Operating Humidity 10 – 90% RH, non-condensing
Operating Temperature 5 – 140 °F (-15 – 60 °C)
Output Specifications 0 – 5 VDC
Outputs Analog output | Relay
Product Certification UL | CE
Product Type Sensor
Range HX52 Series
Relay Coil Voltage 12 VDC
Relay Construction  Mechanical
Relay Contact Ratings Resistive: 5 A @ 250 VAC | Resistive: 5 A @ 30 VDC | Inductive: 2 A @ 250 VAC | Inductive: 2 A @ 30 VDC
Relay Poles/Throw SPST
Warranty 5 years

Download

Veris-H952-Current Transducer_DpstarGroup
