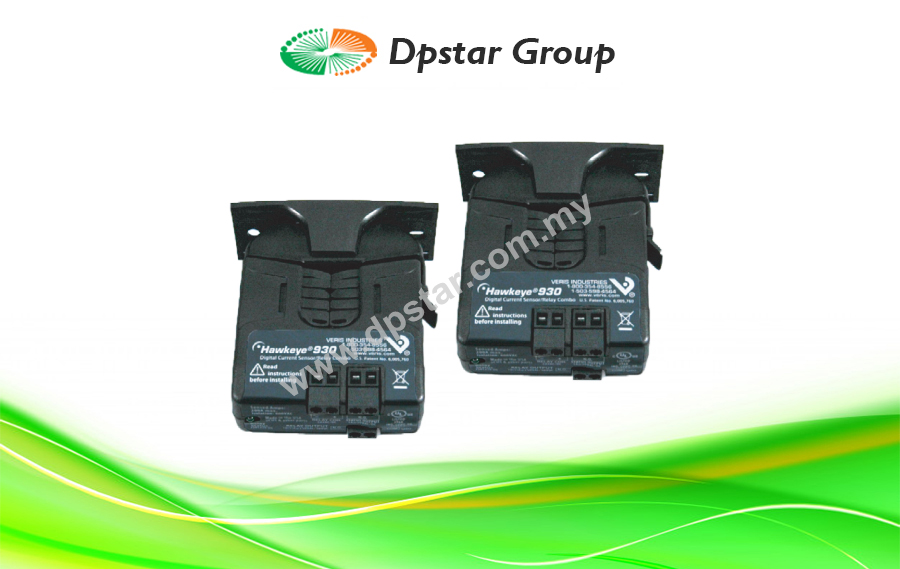

Veris H930 Current Switch

Features

  • On/off status and command relay in a single labor and space saving device
  • Detect belt loss – cost-effectively monitor start/stop, unit vents, fan coils, exhaust fans, and other loads where belt loss is not a concern
  • Easy setup – no calibration required easy setup and operation
  • No tubing necessary – easier to install than differential pressure switches
  • Induced from monitored conductor sensor power
Enquiry
Category:
Love0

Veris Industries is an energy and environmental sensor partner that provides quality products for commercial HVAC and other automation applications. We offer complete lines of reliable, long-lasting innovative power monitoring products.

The Hawkeye H930 relay combination series combines an on/off status sensor and command relay in one package, saving the labor, wire runs and space required to mount a separate relay. The switch and relay (not electrically connected) are in the same housing, saving space and cost. It is ideal for monitoring and controlling motors where belt loss is not a concern.

Dimensional Drawing

Wiring Diagram – Start/stop Monitoring of Fan/Pump Motors

Wiring Diagram – Relay Controlled Directly By Status Contacts

Applications

  • Monitoring direct-drive units, exhaust fans, and other fixed loads.
  • Monitoring on/off status of electrical loads.
  • Starting/stopping motors.

Specification

Model H930
Application Building Automation Systems
Current Measurement Range 1.5 – 200A
Current Sensor type Current Switch, AC
Electrical Wiring Size  24 – 14 AWG (0.2 – 2.1 mm²)
Measurement Type   AC Current
Monitored Frequency Range  50 – 60 Hz
Monitored Wire Size 0.8″ (21 mm)
Mounting Split Core
Operating Humidity 10 – 90% RH, non-condensing
Operating Temperature 5 – 140 °F (-15 – 60 °C)
Output Specifications N.O. 1 A @ 250 VAC
Outputs Switch output | Relay
Product Certification UL | CE
Product Type Sensor
Range HX30 Series
Relay Coil Voltage 24 VAC/DC
Relay Contact Ratings Resistive: 10 A @ 250 VAC | Resistive: 10 A @ 30 VDC | Inductive: 5 A @ 250 VAC | Inductive: 5 A @ 30 VDC
Relay Poles/Throw SPST
Setpoint Fixed
Warranty 5 years

Download

Veris-H930-Current Switch_DpstarGroup
