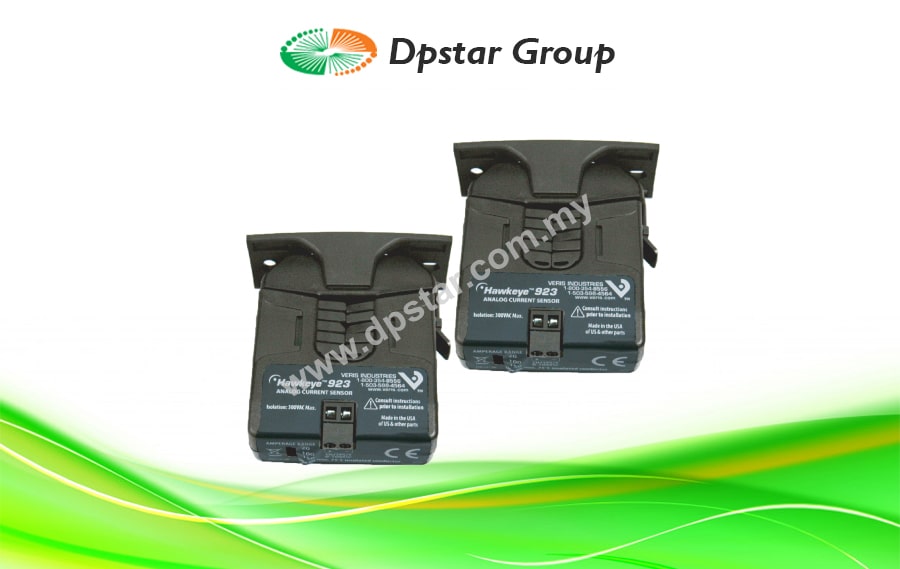

Veris H923 Current Transducer

Features

  • Self-powered analog current sensor simplifies installation
  • No external power required for sensor
  • Self-gripping, split-core design for fast retrofit installation, no need to remove conductor
  • Factory calibrated ranges for increased flexibility and resolution
  • No jumpers on unit, reduces installation error
  • Less to stock – one device does the work of three
  • Removable mounting bracket for installation flexibility
  • Added flexibility – bracket on H923 can be installed in three different configurations
  • 100% solid-state no moving parts to fail
  • Induced from monitored conductor sensor power
Enquiry
Category:
Love0

Veris Industries is an energy and environmental sensor partner that provides quality products for commercial HVAC and other automation applications. We offer complete lines of reliable, long-lasting innovative power monitoring products.

The Hawkeye 923 provide accurate load trending information with a proportional 0 to 10 VDC output signal. Slide switches provide easy field selection of monitored amperage range without jumpers.

Dimensional Drawing


Wiring Diagram

Applications

  • Load trending
  • Motor control
  • Positive proof of flow

Specification

Model H923
Application Building Automation Systems
Current Measurement Accuracy  ±2% of F.S. above 10% of F.S.
Current Measurement Range 0 – 30 A | 0 – 60 A | 0 – 120 A
Current Sensor type Current Transducer, AC
Electrical Wiring Size  24 – 14 AWG (0.2 – 2.1 mm²)
Measurement Type  AC Current
Monitored Frequency Range 50 – 60 Hz
Monitored Wire Size 0.8″ (21 mm)
Mounting Split Core
Operating Humidity 10 – 90% RH, non-condensing
Operating Temperature  5 – 140 °F (-15 – 60 °C)
Output Specifications 0 – 10 VDC
Outputs Analog output
Product Certification UL | CE
Product Type Sensor
Range HX23 Series
Relay Coil Voltage None
Relay Contact Ratings None
Relay Poles/Throw None
Warranty 5 years
