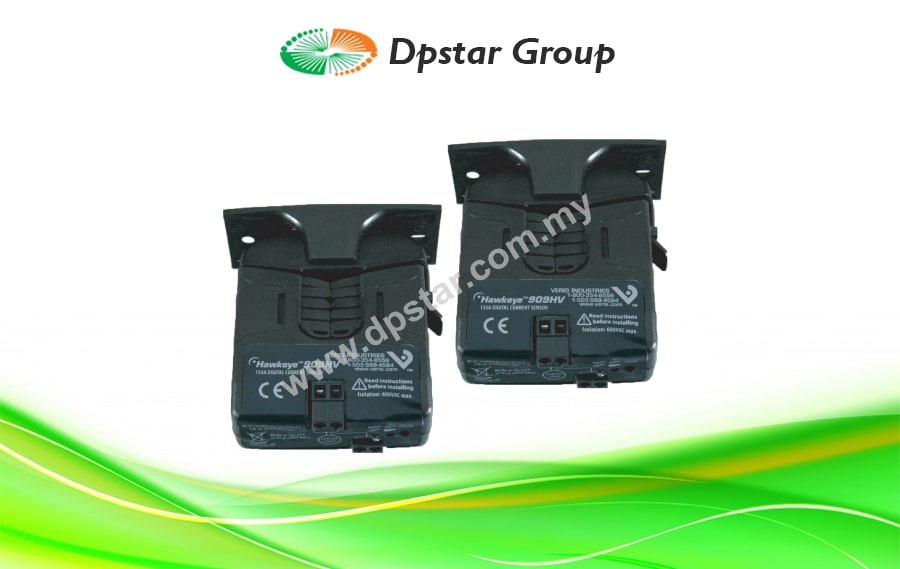

Veris H909HV Current Switch

Features

  • Versatility – removable mounting bracket optimizes field versatility
  • Adjustable trip point – precise current trip point setting
  • Induced from monitored conductor sensor power
Enquiry
Category:
Love0

Veris Industries is an energy and environmental sensor partner that provides quality products for commercial HVAC and other automation applications. We offer complete lines of reliable, long-lasting innovative power monitoring products.

Hawkeye H909HV offers high-performance current switches, ideal for line voltage loads. The devices are powered by the current being monitored. They are ideal for monitoring performance on unit vents, exhaust fans, recirculation pumps, and other fixed loads.

Dimensional Drawing

Wiring Diagram – Monitoring Fan/pump Motors For Positive Proof Of Flow

Applications

  • Detecting belt loss, coupling shear, mechanical failure, and interlocking loads.
  • Verifying lighting circuit and other electrical service run times.
  • Monitoring status of industrial process equipment.
  • Monitoring status of critical motors (compressor, fuel, etc.).
  • VFD output On/Off status.
  • Fan/pump status monitoring.

Specification

Model H909HV
Application Building Automation Systems
Current Measurement Range 2.5 – 135 A
Current Sensor type Current Switch, AC
Electrical Wiring Size 24 – 14 AWG (0.2 – 2.1 mm²)
Measurement Type AC Current
Monitored Frequency Range 50 – 60 Hz
Monitored Wire Size 0.8″ (21 mm)
Mounting Split Core
Operating Humidity 10 – 90% RH, non-condensing
Operating Temperature 5 – 140 °F (-15 – 60 °C)
Output Specifications N.O. 1 A @ 250 VAC
Outputs Switch output
Product Certification UL | CE
Product Type Sensor
Range HX09 Series
Relay Coil Voltage None
Relay Contact Ratings None
Relay Poles/Throw None
Setpoint Adjustable
Warranty 5 years

Download

Veris-H909HV-Current Switch_DpstarGroup
