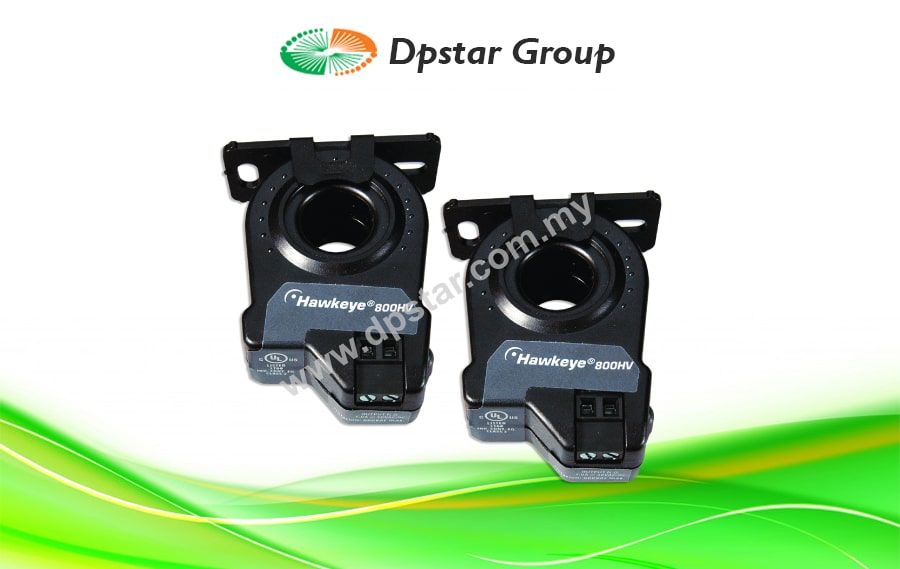

Veris H800-HV Current Switch

Features

  • Reliable – more reliable for status than relays across auxiliary contacts
  • Ideal for direct-drive units, unit vents, fan coil units, exhaust fans, and other fixed loads
  • Installation flexibility – removable mounting bracket provides installation flexibility
  • Induced from monitored current sensor power
  • On/off status for Variable frequency drive (VFD) outputs at 12 to 115 Hz, VFD systems generate fields that can disrupt electrical devices, ensure that these fields are minimized and are not affecting the sensor
Enquiry
Categories: ,
Love0

Veris Industries is an energy and environmental sensor partner that provides quality products for commercial HVAC and other automation applications. We offer complete lines of reliable, long-lasting innovative power monitoring products.

Hawkeye 800 on/off current switches provide a cost-effective solution for monitoring status on unit vents, exhaust fans, recirculation pumps and other fixed loads where belt loss is not a concern. Veris has applied new technology to the H800 model to achieve impressive improvement in turn-on levels.

Dimensional Drawing

Wiring Diagram – Unit Vent Heater Control

Applications

  • Electrical load status.
  • Direct-drive units, exhaust fans, process motors, and other fixed loads.
  • Lighting run times and status.
  • VFD output On/Off status.
  • Direct-Drive units, unit vents, fan coil units, exhaust fans, and other fixed loads.

Specification

Model H800-HV
Application Building Automation Systems
Current Measurement Range 0.75 – 200 A
Current Sensor type Current Switch, AC
Electrical Wiring Size  24 – 14 AWG (0.2 – 2.1 mm²)
Measurement Type  AC Current
Monitored Frequency Range 50 – 60 Hz
Monitored Wire Size 0.7″ (18 mm)
Mounting Solid Core
Operating Humidity 10 – 90% RH, non-condensing
Operating Temperature -40 – 122 °F (-40 – 50 °C)
Output Specifications N.O. 0.5A @ 250 VAC/DC
Outputs Switch output
Product Certification UL
Product Type Sensor
Range HX00 Series
Relay Coil Voltage None
Relay Contact Ratings None
Relay Poles/Throw None
Setpoint Fixed
Warranty  5 years

Download

Veris-H800-HV-Current Switch_DpstarGroup
