Veris H758 Current Switch

Features

  • Combined relay and status – combines command relay and fan/pump status sensor in a single, easy-to-install unit
  • Fan and pump status – detect belt loss and motor failure ideal for fan and pump status
  • Polarity insensitive status outputs – fast and easy installation
  • Two outputs – H948 feature a SPDT command relay control two outputs with a single relay
  • Added flexibility – bracket on H958 can be installed in three different configurations
  • Easy setup – relay and status LEDs
  • Induced from monitored conductor sensor power
Enquiry
Categories: ,
Love0

Veris Industries is an energy and environmental sensor partner that provides quality products for commercial HVAC and other automation applications. We offer complete lines of reliable, long-lasting innovative power monitoring products.

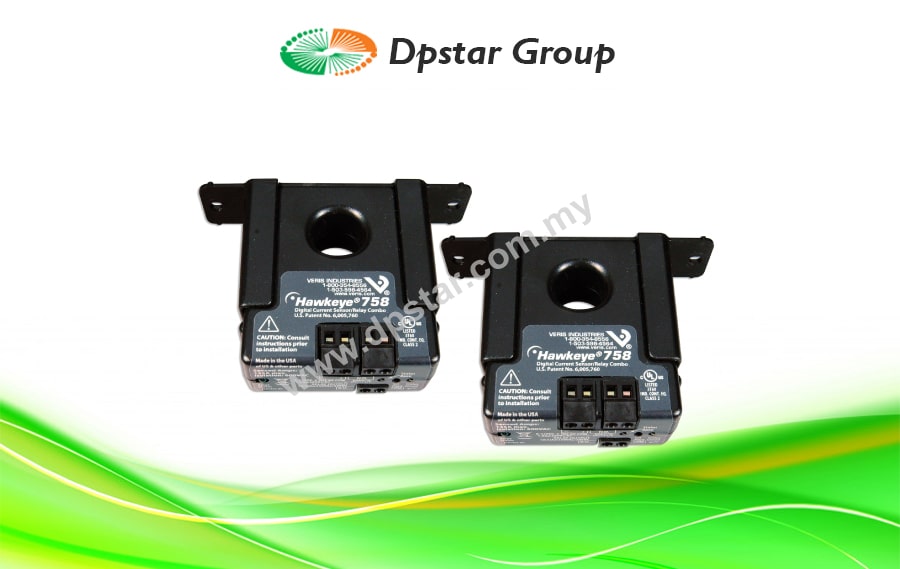

The Hawkeye H758 relay combination series is the ideal solution for the automation installer. These units combine a current switch and relay into a single package, reducing the space required for total control of fans and pumps. The current switch and relay operate independently of one another. These devices allow start/stop control and status monitoring with one device instead of two.

Benefits

  • Reduced charges from electrician
  • Relay and status LEDs for easy setup
  • Polarity insensitive status output
  • Adjustable setpoint for current sensor status
  • 5-year limited warranty

Dimensional Drawing

Wiring Diagram – Start/stop Monitoring of Fan /Pump Motors

Wiring Diagram – Relay Controlled Directly by Status Contacts

Applications

  • Starting/stopping and monitoring positive status of motors.
  • Detecting belt loss and coupling shear.

Specification

Model H758
Application Building Automation Systems
Current Measurement Range 1 – 135 A
Current Sensor type Current Switch, AC
Electrical Wiring Size  24 – 14 AWG (0.2 – 2.1 mm²)
Measurement Type  AC Current
Monitored Frequency Range 50 – 60 Hz
Monitored Wire Size 0.7″ (18 mm)
Mounting Solid Core
Operating Humidity 10 – 90% RH, non-condensing
Operating Temperature 5 – 140 °F (-15 – 60 °C)
Output Specifications N.O. 1 A @ 30 VAC/DC
Outputs Switch output | Relay
Product Certification UL
Product Type Sensor
Range HX58 Series
Relay Coil Voltage 12 VDC
Relay Construction   Mechanical
Relay Contact Ratings Resistive: 10 A @ 250 VAC | Resistive: 10 A @ 30 VDC | Inductive: 5 A @ 250 VAC | Inductive: 5 A @ 30 VDC
Relay Poles/Throw SPST
Setpoint Adjustable
Warranty 5 years
