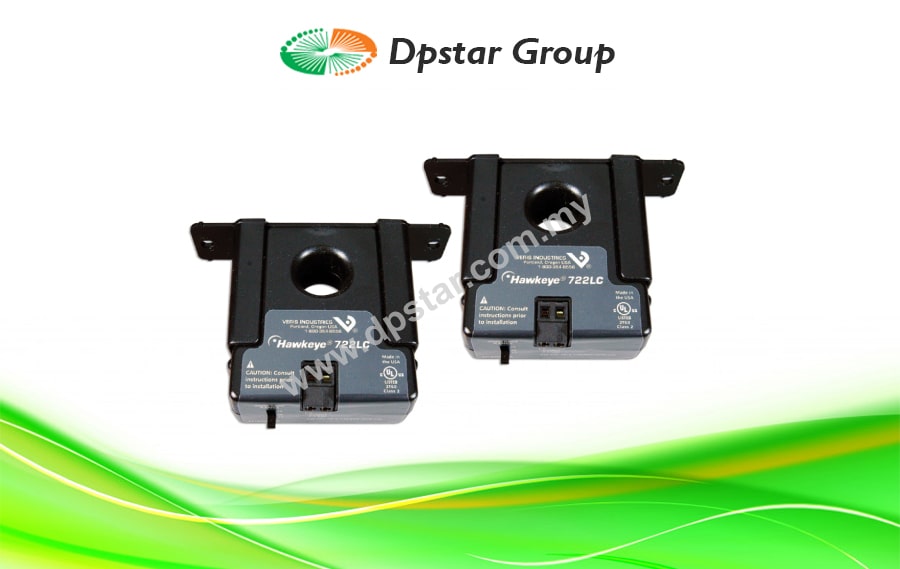

Veris H722LC Current Transducer

Features

  • Self-powered analog current sensor simplifies installation
  • No external power required for sensor
  • Factory calibrated ranges for increased flexibility and resolution
  • No jumpers on unit, reduces installation error
  • New construction – economical solid-core models feature adjustable bracket for easy alignment
  • Induced from monitored conductor sensor power
Enquiry
Category:
Love0

Veris Industries is an energy and environmental sensor partner that provides quality products for commercial HVAC and other automation applications. We offer complete lines of reliable, long-lasting innovative power monitoring products.

The Hawkeye 722LC provides accurate load trending information with a proportional 0 to 5 VDC output signal. Slide switches provide easy field selection of monitored amperage range without jumpers.

Dimensional Drawing

Wiring Diagram

Applications

  • Load trending
  • Motor control
  • Positive proof of flow

Specification

Model H722LC
Application Building Automation Systems
Current Measurement Accuracy  ±2% of F.S. or 0.4 A, whichever is greater, above 10% of F.S.
Current Measurement Range 0 – 10 A | 0 – 20 A | 0 – 40 A
Current Sensor type Current Transducer, AC
Electrical Wiring Size  24 – 14 AWG (0.2 – 2.1 mm²)
Measurement Type  AC Current
Monitored Frequency Range 50 – 60 Hz
Monitored Wire Size 0.7″ (18 mm)
Mounting Solid Core
Operating Humidity 10 – 90% RH, non-condensing
Operating Temperature 5 – 140 °F (-15 – 60 °C)
Output Specifications 4 – 20 mA
Outputs Analog output
Product Certification UL | CE
Product Type Sensor
Range HX22 Series
Relay Coil Voltage None
Relay Contact Ratings None
Relay Poles/Throw None
Warranty 5 years

Download

Veris-H722LC-Current Transducer_DpstarGroup
