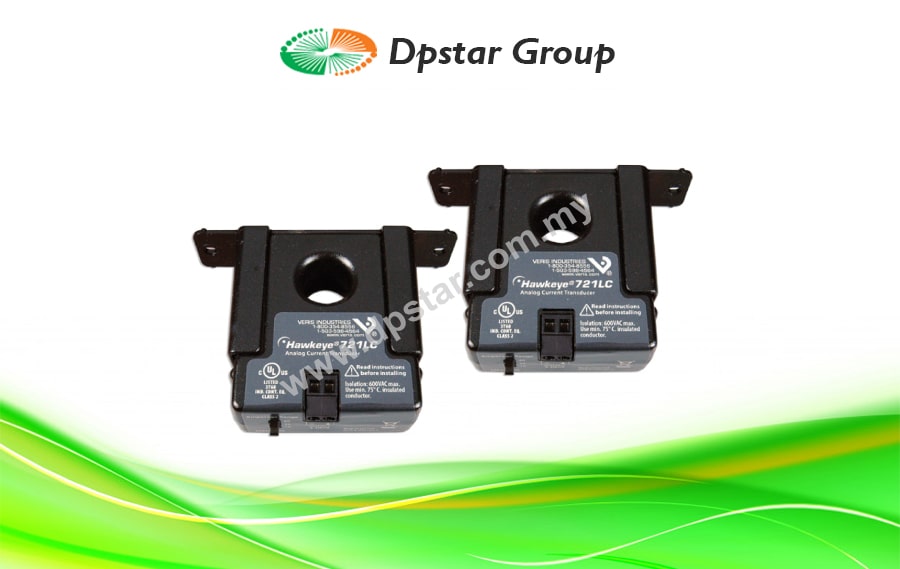

Veris H721LC Current Transducer

Features

  • Power the sensor, and receive the signal with only 2-wires, lower cabling and commissioning costs than with traditional 3-wire sensors
  • Economical solid-core features adjustable bracket for easy alignment
  • Factory calibrated switch-selectable ranges for high resolution and installation ease
  • Three field-selectable ranges per unit, fewer versions to choose from, stock, and install
  • Removable mounting bracket for installation flexibility
  • 100% solid-state no moving parts to fail
  • 30 mA at 12 to 30 VDC sensor power
Enquiry
Category:
Love0

Veris Industries is an energy and environmental sensor partner that provides quality products for commercial HVAC and other automation applications. We offer complete lines of reliable, long-lasting innovative power monitoring products.

Hawkeye Relay Combination Series high voltage output current switches are the ideal solution for the automation installer. These units combine a current switch and relay into a single package, reducing the space required for total control of fans and pumps. The integrated current switch and relay operate independently of one another. All relay connections are externally available for maximum flexibility. These products perform the functions of start/stop and status monitoring with one device instead of two.

The Hawkeye H721LC provides accurate load trending information with a proportional 4 to 20 mA output signal. Preset slide switches provide easy field setup of sensed amperage range with no need for jumpers.

Dimensional Drawing


Wiring Diagram

Applications

  • Load trending
  • Motor control
  • Positive proof of flow

Specification

Model H721LC
Application Building Automation Systems
Current Measurement Accuracy  ±2% of F.S. or 0.4 A, whichever is greater, above 10% of F.S.
Current Measurement Range 0 – 10 A | 0 – 20 A | 0 – 40 A
Current Sensor type Current Transducer, AC
Electrical Wiring Size  24 – 14 AWG (0.2 – 2.1 mm²)
Measurement Type  AC Current
Monitored Frequency Range 50 – 60 Hz
Monitored Wire Size 0.7″ (18 mm)
Mounting Solid Core
Operating Humidity 10 – 90% RH, non-condensing
Operating Temperature 5 – 140 °F (-15 – 60 °C)
Output Specifications 4 – 20 mA
Outputs Analog output
Product Certification UL | CE
Product Type Sensor
Range HX21 Series
Relay Coil Voltage None
Relay Contact Ratings None
Relay Poles/Throw None
Warranty 5 years

Download

Veris-H721LC-Current Transducer_DpstarGroup
