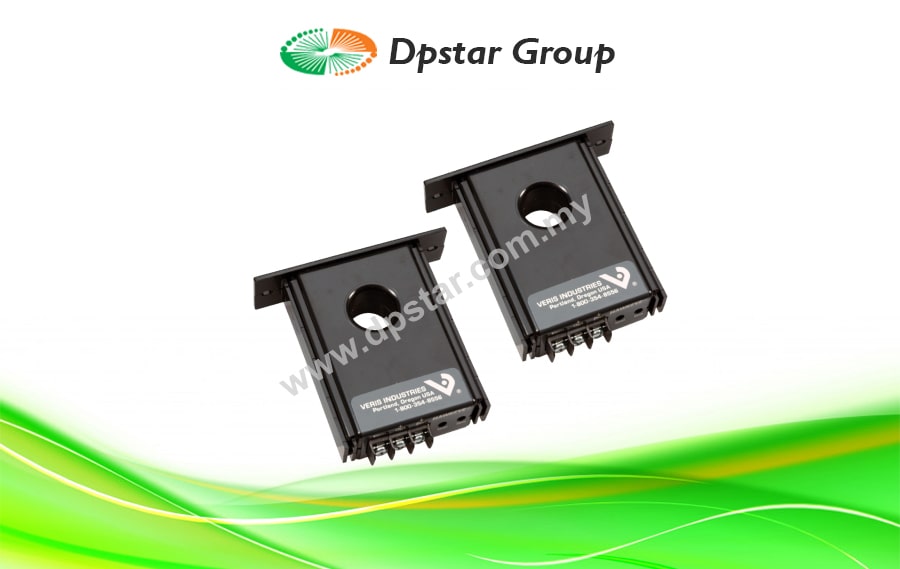

Veris H720 Current Transducer

Features

  • Suitable for load side monitoring of VFDs
  • Adjustable zero and span for precise scaling
  • Accurate to 0.5% of full scale
  • LED status, LED relay power
Enquiry

Veris Industries is an energy and environmental sensor partner that provides quality products for commercial HVAC and other automation applications. We offer complete lines of reliable, long-lasting innovative power monitoring products.

Hawkeye 720 current monitoring devices provide unique solutions for accurately monitoring status of motors controlled by variable frequency drives. The H720 analog output corresponds to current in the monitored conductor from 10 to 80 Hz.

Dimensional Drawing


Wiring Diagram

Applications

  • Monitoring positive status on motors controlled by variable frequency drives
  • Replacing pressure switches
  • Measuring current and load trending

Specification

Model H720
Application Building Automation Systems
Current Measurement Accuracy  ±1 A
Current Measurement Range 0 – 200 A
Current Sensor type Current Transducer, VFD
Electrical Wiring Size  24 – 14 AWG (0.2 – 2.1 mm²)
Measurement Type  AC Current | VFD
Monitored Frequency Range 50 – 60 Hz
Monitored Wire Size 0.7″ (18 mm)
Mounting Solid Core
Operating Humidity 10 – 90% RH, non-condensing
Operating Temperature 5 – 140 °F (-15 – 60 °C)
Output Specifications 4 – 20 mA
Outputs Analog output
Product Certification UL
Product Type Sensor
Range VFD Series
Relay Coil Voltage None
Relay Contact Ratings None
Relay Poles/Throw None
Warranty 5 years
