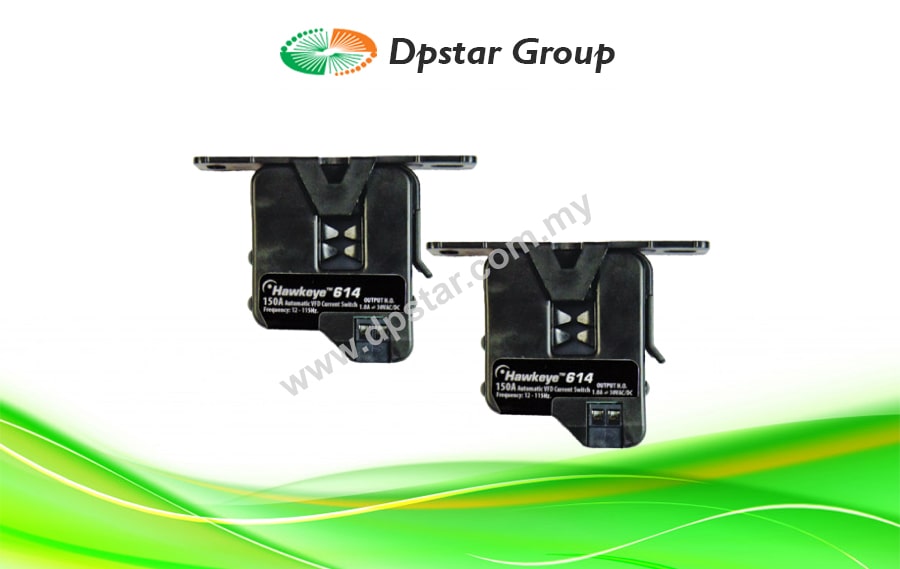

Veris H614 Current Switch

Veris Industries is an energy and environmental sensor partner that provides quality products for commercial HVAC and other automation applications. We offer complete lines of reliable, long-lasting innovative power monitoring products.

The Hawkeye H614 is a microprocessor-based, self-learning, self-calibrating current-sensitive switching device designed for use with VFD systems. At initial power-up, the H614 automatically learns the average current on the line with no action required by the installer. Once a current is learned, the switch monitors for changes in current greater than +/-20% of the learned load. When calibrated for a given VFD system, the H614 is tolerant of gradual drifts in frequency due to expected conditions, such as an accumulation of debris in a filter, while still detecting a sudden drop due to a potential abnormal system condition (e.g., belt loss or other mechanical failure).

Dimensional Drawing

Wiring Diagram

Applications

• Monitoring fans, pumps, motors, and other electrical loads for proper operation
• Detecting belt loss and motor failure…ideal for fan and pump status
• Verifying lighting circuit loads
• Monitoring critical motors (compressor, fuel, etc.)
• Monitoring industrial process equipment status (OEM)
