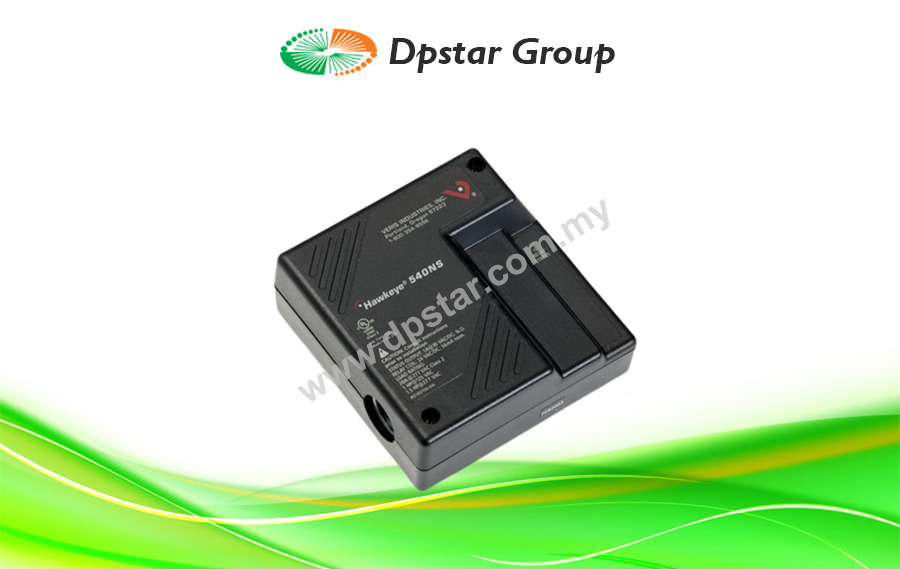

Veris H540NS Current Monitor Relay

Features

  • Remote mounted current status sensor and command relay without HOA switch
  • Combines status sensor, command relay in a single series circuit one line connection for three devices
  • Gang box mounting – mounts directly onto gang box, flush to existing enclosures and standalone
  • SPST relay is field-selectable for NO or NC operation
  • 1 hp at 120 VAC and 1.5 hp at 277 VAC one product for all fractional HP motor control and status applications
  • Induced from monitored conductor sensor power
  • Relay power LED
Enquiry
Category:
Love0

Veris Industries is an energy and environmental sensor partner that provides quality products for commercial HVAC and other automation applications. We offer complete lines of reliable, long-lasting innovative power monitoring products.

The Hawkeye 5xx series combines an industrial-grade load switching relay, current status switch in an easy-to-install remote enclosure making the series ideal for monitoring, directly controlling, and troubleshooting the control wiring of fractional horsepower motors. The relay, current sensor are combined in a series circuit. Once a 500 is wired in series between the power source and motor, all three components are installed. The housing provides physical separation and multiple wiring exits to isolate control and high voltage wiring. A 500 can be mounted directly on 2 or 4 gang junction boxes, nippled to a field enclosure, or stand-alone.

Dimensional Drawing

Wiring Diagram

Applications

  • Monitoring status and controlling small motor loads that are not driven by a motor starter or contactor
  • Exhaust fans
  • Unit ventilators
  • Fan terminal units
  • Fan coil units
  • Recirculating pumps

Specification

Model H540NS
Application Building Automation Systems
Current Measurement Range  0.25 – 15 A
Current Sensor type Current Transducer, AC, with Relay
Electrical Wiring Size  24 – 14 AWG (0.2 – 2.1 mm²)
Hand-Off-Auto  No
Measurement Type  AC Current
Monitored Wire Size 50 – 60 Hz
Mounting 4 x 4 Box
Operating Humidity 10 – 90% RH, non-condensing
Operating Temperature 5 – 122 °F (-15 – 50 °C)
Output Specifications N.O. 1 A @ 30 VAC/DC
Outputs Switch output | Relay
Product Certification UL
Product Type Sensor
Range Motor Control Series
Relay Coil Voltage 24 VAC/DC
Mechanical
Relay Contact Ratings Resistive: 15 A @ 277 VAC | Motor: 1 H.P. @ 120 VAC | Motor: 1.5 H.P. @ 277 VAC
Relay Poles/Throw SPST
Setpoint Fixed
Warranty 5 years
