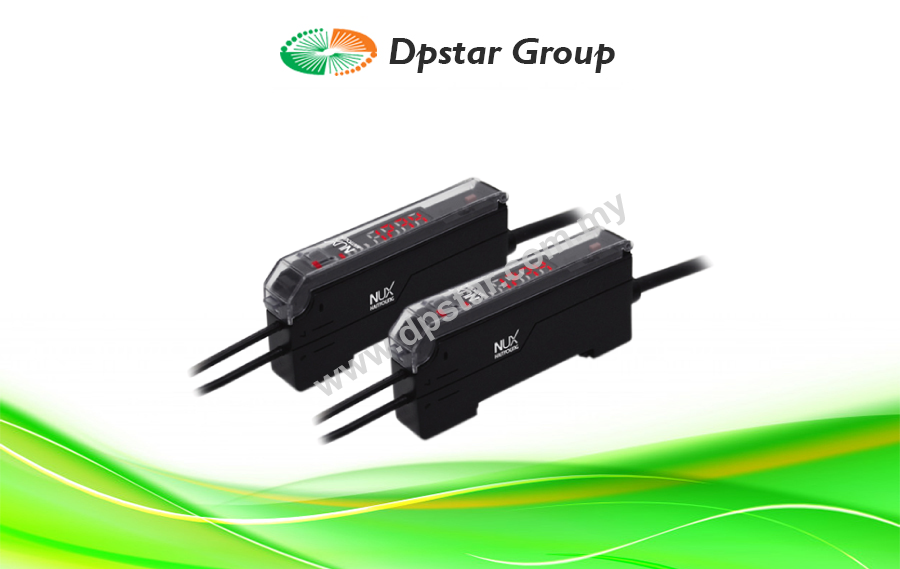

Various Functions Digital Fiber Sensor – Hanyoung PFD Series

Features

  • 7 segments 4 digits LED display
  • Set up delay output time (1~9999 ms)
  • Set up sensitivity by using auto teaching
  • Detect mark/counter/tachometer function (multi type)
Enquiry
Category:
Love0

Fiber Unit
Model : PFD Series

  • 7 segments 4 digits LED display
  • Set up delay output time (1~9999 ms)
  • Set up sensitivity by using auto teaching
  • Detect mark/counter/tachometer function (multi type)

Specification

Type Digital Multi Control Type
General purpose Multi function
Appearance
Model NPN PFD-RGN PFD-RMN
PNP PFD-RGP PFD-RMP
Rated Voltage 12 – 24 V d.c ± 10 % (Ripple 10 % Max.)
Current Consumption 50 mA Max.
Output Main Open collector output, 100 mA (Supplied voltage Max. 30 V, Residual voltage Max. 0.5 V)
Subsidiary Open collector output, 100 mA (Supplied voltage Max. 30 V, Residual voltage Max 0.5 V)
External Input Teaching / Auto teaching Teaching / Auto teaching / Reset input
Operating mode Light On / Dark On output
Normal output, ON DELAY, OFF DELAY, ON/OFF DELAY output
On/Off Delay 0 ~ 9999 ms
Light source Red emitting diode / 660 nm
Protection circuit Reverse polarity protection, Overcurrent protection
Response time Max. 700 µs Max. 1 ms
LED indicator 7 points status LED, 4 Digits FND
Sensitivity control Auto-teaching, Manual
Additional functions Brightness control 180。 Turning indication
Display time set, Zero Reset, Initial reset, Lock function
Ambient illumination Sunlignt : 10,000 Lux Max., Incandescent lamp : 3,000 Lux Max.
Ambient temperature Operating : -10 °C ~+55 °C , Storage : -25 °C ~ +70 °C (Without freezing)
Ambient humidity 35 ~ 85 % R.H.
Vibration Resistance 10-55 Hz(Cycle for 1 minute),Double amplitude : 1.5 mm, in each direction X•Y•Z for 2 hours
Shock Resistance 500 m/²s (About 50 G), X·Y·Z each direction for 3 times
Dielectric Strength 1500 V a.c (50/60 Hz) for 1 minute
Insulation Resistance Min. 20 MΩ (at 500 V d.c)
Connection Method For DIN Rail attachment Flying lead 1.5 m
5 P
Accessory Bracket

Ordering Code

Model Code Information
PFD – 10 bit A/D, 4Digit display
Light source R Red LED
Use G General purpose(MARK)
M Multi type(MARK / RPM / COUNTER)
External output N NPN Open collector
P PNP Open collector
