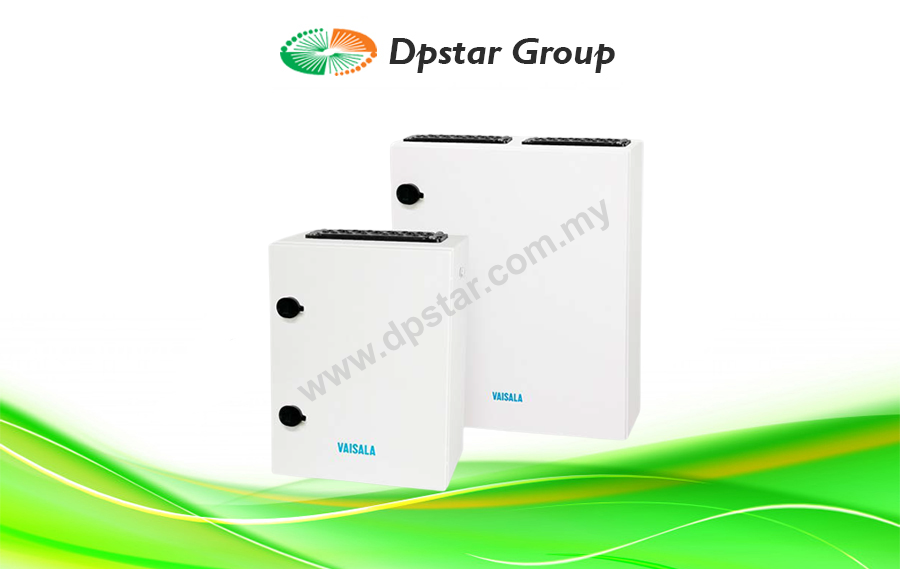

Vaisala CAB100 CMS Industrial Cabinet

Features

  • Measurement options include differential pressure and analog inputs for a variety of parameters.
  • Analog inputs can be made intrinsically safe with a safety barrier or galvanic isolator.
  • Reporting via viewLinc is compliant with FDA, Annex 11, GxP, and GAMP.
  • Networking options include PoE and/or a multiport Ethernet adapter.
  • Large cabinets feature an integrated 24 VDC / 2.5 A power supply.
  • Small cabinets have the option of integrated power supply, or Power over Ethernet.
Enquiry
Category:
Love0

Dpstar is a leading supplier of environmental measurement sensors for temperature, relative humidity, pressure, dew point, CO2, and other environmental condition monitoring for industrial process application and research. Since the ’90s, we earned a reputation as a trusted partner to our clients through our commitment and dedication. We are an authorized distributor and supplier of measuring sensors solutions from renowned manufacturers Vaisala. Vaisala is a global leader in environmental and industrial measurement. Building on 80 years of experience, Vaisala provides observations for a better world. Vaisala is a reliable partner for customers around the world, offering a comprehensive range of innovative observation and measurement products and services.

Vaisala CMS Industrial Cabinet CAB100 integrates Vaisala’s world-class instruments for monitoring differential pressure and other parameters into a simple, preconfigured instrument panel. In combination with the Vaisala viewLinc Enterprise Server Software, the cabinet provides pre-installed real-time monitoring of your critical environments.

Easy Data Collection with Quality & Compliance

Cabinets are configurable to your application requirements, with options for differential pressure transmitters, analog inputs for the connection of remote transmitters, and safety barriers or galvanic isolators for hazardous areas that require intrinsically safe devices. CAB100 enables you to combine differential pressure and other transmitters with data loggers in a single enclosure for centralized monitoring and reliable alarming.

Configured for Your Cleanroom

CAB100 is designed to ensure regulatory compliance in multiple cleanroom applications, including pharmaceutical, healthcare, biotechnology, medical device, aerospace, automotive, and semiconductor manufacturing. Select from two cabinet sizes: small and large. Small cabinets can contain up to four analog inputs which can also be intrinsically safe or four differential pressure transmitters. Large cabinets can accommodate up to 12 differential pressure transmitters and up to 32 analog input channels with intrinsically safe options. Communication is achieved over Ethernet to the viewLinc server database. CAB100 is an ideal solution for many monitoring applications, providing device protection, economy, and serviceability. The lockable metal enclosure protects the measurement instruments from tampering and accidental damage.

The Benefits of Centralization

It is often impossible or impractical to run power or network cables to each desired point of measurement. With CAB100 you can centralize and economize by running a single power and network cable to the cabinet to support numerous transmitters, while also reducing the number of network adapters needed. The centralization of measurement devices also simplifies serviceability. With multiple transmitters and data loggers located together, regular maintenance activities like calibration are easy and efficient.

Specification

Cabinet Size Small (model CAB100A)
Large (model CAB100B)		 400 × 300 × 200 mm (15.75 × 11.81 × 7.87 in)
600 × 500 × 200 mm (23.62 × 19.69 × 7.87 in)
Power Power supply Within cabinet: 24 VDC / 2.5 A
To cabinet: 110 … 240 VAC
Power over Ethernet 1) Power over Ethernet, with loop power, without fan
Analog Channels 4 … 32 channels 4 … 20 mA
Safety Barrier 1 … 16 pieces 1 barrier per channel
Galvanic Isolator 1 … 12 pieces 1 isolator per channel
Differential Pressure 1 … 12 pieces ±60 Pa or ±0.25 in H2O
Ethernet Communication Large cabinet Up to 2 serial-to-Ethernet devices via RJ45 (DIGI PortServer TS4)
Small cabinet Vaisala vNet Ethernet interface for DL series data loggers with PoE option via RJ45 connector
Ethernet Ethernet switch +4 PoE IEEE 802.3af/at
Standards EN/IEC61326-1 (Basic electromagnetic environment) EN55032 Class B
IEC/UL/EN 61010-1
IP66/NEMA 4 (large CAB100) / IP54 (small CAB100)
Safety listed in USA and Canada 2)
