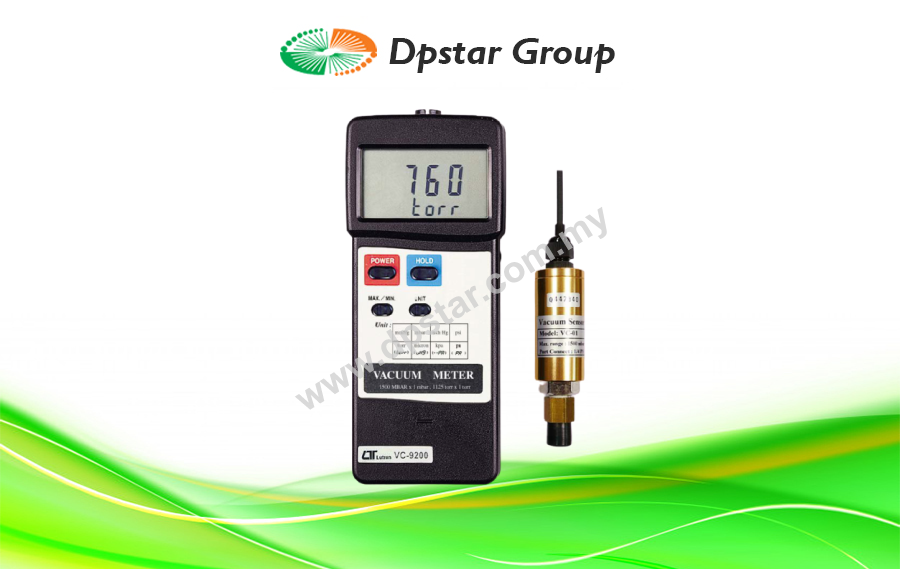

Vacuum meter – Lutron VC-9200

Features

1125 torr x 1 torr, 1500 mbar x 1 mbar.
Units : torr, mm Hg, micron, KPa, Pa, inch Hg, psi.
RS232, Hold, Record ( Max., Min. ).
Heavy duty vacuum sensor used for air, oil gas.
Application : Automobile, Industrial, laboratory, heating, ventilation, medical hospital.

Categories: Test Instruments, Lutron ~ Test Instruments, Thiết bị test, Vacuum Meter

Vacuum Meter
Model : VC-9200

1125 torr x 1 torr, 1500 mbar x 1 mbar.
Units : torr, mm Hg, micron, KPa, Pa, inch Hg, psi.
RS232, Hold, Record ( Max., Min. ).
Heavy duty vacuum sensor used for air, oil gas.
Application : Automobile, Industrial, laboratory, heating, ventilation, medical hospital.

Specification

Display	61 mm x 34 mm supper large LCD display. 15 mm ( 0.6″ ) digit size.
Display units	8 kind display units : torr, mm Hg, micron, mbar, KPa, Pa, inch Hg, psi.
Circuit	Microprocessor LSI circuit.
Function	Data hold, memory ( max., min.)
Sensor probe	• Separate probe, easy operation. • Heavy duty sensor uesed for vacuum measurement of air, oil gas liquid.
Data hold	By push button.
Data record	Record maximum & minimum readings.
Data output	RS 232 PC serial interface.
Sampling time	Approx. 0.8 second.
Power off	Auto shut off, saves battery life, or manual off by push button.
Operating temperature	0 to 50°C( 32 to 122°F).
Operating humidity	Less than 80% R.H.
Power supply	006P DC 9V battery(heavy duty).
Power current	Approx. DC 6.0 mA.
Pressure Port Connector	1/4″ PS
Weight	• Instrument : 220 g/0.48 LB• Sensor probe : 175 g/0.39 LB.
Dimension	• Meter : 180 x 72 x 32 mm ( 7.1 x 2.8 x 1.3 inch )• Sensor probe : 90 mm x 30 mm Dia
Accessories included	• Sensor probe…………………..1 PC. • Instruction manual…………….1 PC. • Hard carrying case…………. 1 PC
Optional accessories	• Data acquisition software ( Windows version ), SW-U801-WIN. • RS232 cable, UPCB-01 • USB cable, USB-01
