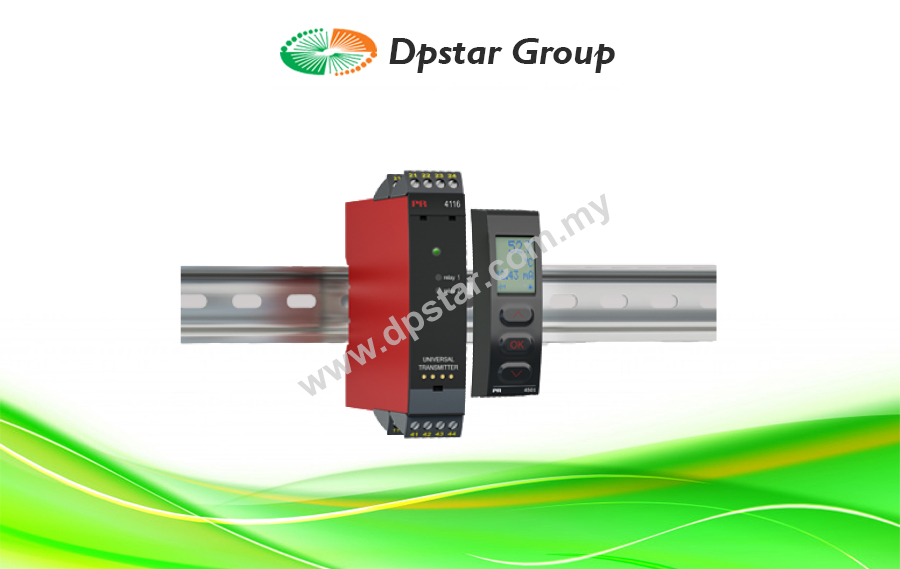

ENVIRONMENTAL CONDITIONS |
Operating temperature |
-20°C to +60°C |
Storage temperature |
-20°C to +85°C |
Calibration temperature |
20…28°C |
Relative humidity |
< 95% RH (non-cond.) |
Protection degree |
IP20 |
MECHANICAL SPECIFICATIONS |
Dimensions (HxWxD) |
109 x 23.5 x 104 mm |
Dimensions (HxWxD) w/ 4501/451x |
109 x 23.5 x 116 / 131 mm |
Weight approx. |
175 g |
Weight incl. 4501 / 451x (approx.) |
190 g / 205 g |
Wire size |
0.13…2.08 mm2 AWG 26…14 stranded wire |
Screw terminal torque |
0.5 Nm |
Vibration |
IEC 60068-2-6 |
2…13.2 Hz |
±1 mm |
13.2…100 Hz |
±0.7 g |
COMMON SPECIFICATIONS |
Supply |
|
Supply voltage, universal |
21.6…253 VAC, 50…60 Hz or 19.2…300 VDC |
Fuse |
400 mA SB / 250 VAC |
Max. required power |
≤ 2.5 W |
Max. power dissipation |
≤ 2.5 W |
Isolation voltage |
|
Test voltage |
2.3 kVAC |
Working voltage |
250 VAC (reinforced) / 500 VAC (basic) |
Response time |
|
Temperature input (0…90%, 100…10%) |
≤ 1 s |
mA / V input (0…90%, 100…10%) |
≤ 400 ms |
Auxiliary supplies |
|
2-w. supply (term. 44…43) |
25…16 VDC / 0…20 mA |
Programming |
PR 45xx |
Signal dynamics, input |
24 bit |
Signal dynamics, output |
16 bit |
Signal / noise ratio |
Min. 60 dB (0…100 kHz) |
Accuracy |
Better than 0.1% of sel. range |
EMC immunity influence |
< ±0.5% of span |
Extended EMC immunity: NAMUR NE21, A criterion, burst |
< ±1% of span |
INPUT SPECIFICATIONS |
RTD input |
|
RTD type |
Pt10/20/50/100/200/250; Pt300/400/500/1000; Ni50/100/120/1000; Cu10/20/50/100 |
Cable resistance per wire |
50 Ω (max.) |
Sensor current |
Nom. 0.2 mA |
Effect of sensor cable resistance (3-/4-wire) |
< 0.002 Ω / Ω |
Sensor error detection |
Yes |
Short circuit detection |
< 15 Ω |
Linear resistance input |
|
Linear resistance min….max. |
0 Ω…10000 Ω |
Potentiometer input |
|
Potentiometer min….max. |
10 Ω…100 kΩ |
TC input |
|
Thermocouple type |
B, E, J, K, L, N, R, S, T, U, W3, W5, LR |
Cold junction compensation (CJC) via ext. sensor in 5910 |
20…28°C ≤ ±1°C, -20…20°C / 28…70°C ≤ 2°C |
CJC via int. mounted sensor |
±(2.0°C + 0.4°C * Δt) |
Δt = |
Internal temp.-ambient temp. |
Sensor error detection |
Yes |
Sensor error current: When detecting / else |
Nom. 2 μA / 0 μA |
Current input |
|
Measurement range |
0…23 mA |
Programmable measurement ranges |
0…20 and 4…20 mA |
Input resistance |
Nom. 20 Ω + PTC 50 Ω |
Sensor error detection: Loop break 4…20 mA |
Yes |
Voltage input |
|
Measurement range |
0…12 VDC |
Programmable measurement ranges |
0/0.2…1, 0/1…5, 0/2…10 VDC |
Input resistance |
Nom. 10 MΩ |
OUTPUT SPECIFICATIONS |
Current output |
|
Signal range |
0…23 mA |
Programmable signal ranges |
0…20/4…20/20…0/20…4 mA |
Load (@ current output) |
≤ 800 Ω |
Load stability |
≤ 0.01% of span / 100 Ω |
Sensor error indication |
0 / 3.5 / 23 mA / none |
NAMUR NE43 Upscale/Downscale |
23 mA / 3.5 mA |
Output limitation, on 4…20 and 20…4 mA signals |
3.8…20.5 mA |
Output limitation, on 0…20 and 20…0 mA signals |
0…20.5 mA |
Current limit |
≤ 28 mA |
Voltage output |
|
Signal range |
0…10 VDC |
Programmable signal ranges |
0/0.2…1; 0/1…5 ; 0/2…10; 1…0.2/0; 5…1/0; 10…2/0 V |
Load (@ voltage output) |
≥ 500 kΩ |
Relay output |
|
Relay functions |
Setpoint, Window, Sensor error, Latch, Power and Off |
Max. voltage |
250 VAC / VDC |
Max. current |
2:00 AM |
Max. AC power |
500 VA |
Max. DC current, resistive load ≤ 30 VDC |
2 ADC |
Max. DC current, resistive load > 30 VDC |
See manual for details |
OBSERVED AUTHORITY REQUIREMENTS |
EMC |
2014/30/EU |
LVD |
2014/35/EU |
RoHS |
2011/65/EU |
EAC |
TR-CU 020/2011 |
APPROVALS |
c UL us, UL 508 / C22.2 No. 14 |
E231911 |
FM |
3025177 |
DNV-GL Marine |
TAA0000101 |
EU RO Mutual Recognition Type Approval |
MRA000000Z |
SIL |
Hardware assessed for use in SIL applications |
