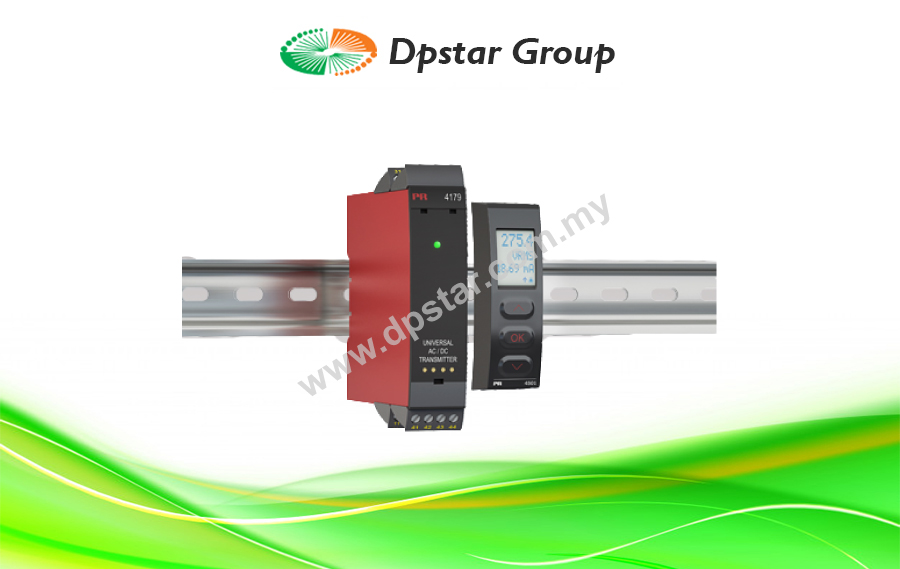

ENVIRONMENTAL CONDITIONS |
Operating temperature |
-20°C to +60°C |
Storage temperature |
-20°C to +85°C |
Calibration temperature |
20…28°C |
Relative humidity |
< 95% RH (non-cond.) |
Protection degree |
IP20 |
Installation in |
Pollution degree 2 & meas. / overvoltage cat. II |
MECHANICAL SPECIFICATIONS |
Dimensions (HxWxD) |
109 x 23.5 x 104 mm |
Dimensions (HxWxD) w/ 4501/451x |
109 x 23.5 x 116 / 131 mm |
Weight approx. |
155 g |
Weight incl. 4501 / 451x (approx.) |
170 g / 185 g |
DIN rail type |
DIN EN 60715/35 mm |
Wire size |
0.13…2.08 mm2 AWG 26…14 stranded wire |
Screw terminal torque |
0.5 Nm |
Vibration |
IEC 60068-2-6 |
2…13.2 Hz |
±1 mm |
13.2…100 Hz |
±0.7 g |
COMMON SPECIFICATIONS |
Supply |
|
Supply voltage, universal |
21.6…253 VAC, 50…60 Hz or 19.2…300 VDC |
Max. required power |
≤ 1.8 W nom. |
Internal power dissipation |
≤ 2.5 W |
Isolation voltage |
|
Test voltage |
2.3 kVAC |
Working voltage |
250 VAC (reinforced) / 500 VAC (basic) |
Response time |
|
Response time (0…90%, 100…10%) |
< 0.75 s |
Programming |
PR 45xx |
Signal dynamics, input |
20 bit |
Signal dynamics, output |
18 bit |
Signal / noise ratio |
> 60 dB |
Output referred common mode rejection ratio |
0.02 ppm / VHz |
Accuracy |
Better than 0.3% of selected range* |
EMC immunity influence |
< ±0.5% of span* |
Extended EMC immunity: NAMUR NE21, A criterion, burst |
< ±1% of span* |
of span |
= of selected standard range |
INPUT SPECIFICATIONS |
Current input |
|
Signal range |
0…5 AAC / 40…400 Hz |
Maximum input limit |
6.00 AAC @ 40°C |
Programmable measurement ranges |
0…0.5; 0…1; 0…2.5 & 0…5 AAC |
Custom configurable signal range |
0…5 AAC /40…400 Hz |
Min. measurement range (span) |
0.5 AAC |
Input resistance |
Nom. < 0.07 Ω |
Voltage input |
|
Signal range |
0…300 VAC / 40…400 Hz |
Programmable measurement ranges |
0…0.5, 0…1, 0…2.83, 0…5, 0…120, 0…230 & 0…300 VAC |
Custom configurable signal range |
0…300 VAC / 40…400 Hz |
Min. measurement range (span) |
0.5 VAC |
Input resistance |
Nom. 3 MΩ || 100 pF |
OUTPUT SPECIFICATIONS |
Active unipolar and bipolar mA output |
|
Programmable ranges |
0…20, 4…20 and S4…20 mA ±10 and ±20 mA |
|
Direct or Inverted Action |
Load (@ current output) |
≤ 800 Ω |
V-curve function, active signals, 100-0-100% |
20-0-20 mA |
Passive 2-wire mA output |
|
Programmable ranges |
0…20 and 4…20 mA Direct or Inverted action |
V-curve function, 100-0-100% |
20-0-20 mA |
External loop supply |
3.5…30 V |
Current output |
|
Signal range |
0…23 mA (unipolar) -23…+23 mA (bipolar) |
Current limit |
≤ 28 mA (unipolar) ± 28 mA (bipolar) |
Load stability |
≤ 0.001% of span / 100 Ω |
Response time, programmable |
0.0…60.0 s |
Voltage output |
|
Programmable signal ranges |
0/0.2…1; 0/1…5 ; 0/2…10; 1…0.2/0; 5…1/0; 10…2/0 V ±1, ±5 and ±10 V |
|
Direct or Inverted action |
V-curve function, 100-0-100% |
1-0-1, 5-0-5 and 10-0-10 V |
Load (@ voltage output) |
≥ 500 kΩ |
Response time, programmable |
0.0…60.0 s |
OBSERVED AUTHORITY REQUIREMENTS |
EMC |
2014/30/EU |
LVD |
2014/35/EU |
RoHS |
2011/65/EU |
EAC |
TR-CU 020/2011 |
APPROVALS |
c UL us, UL 508 / C22.2 No. 14 |
E248256 |
SIL |
Hardware assessed for use in SIL applications |
NB |
|
* / ** |
For custom configurable signal ranges, general accuracy and EMC specifications are 0.3% of full scale |
