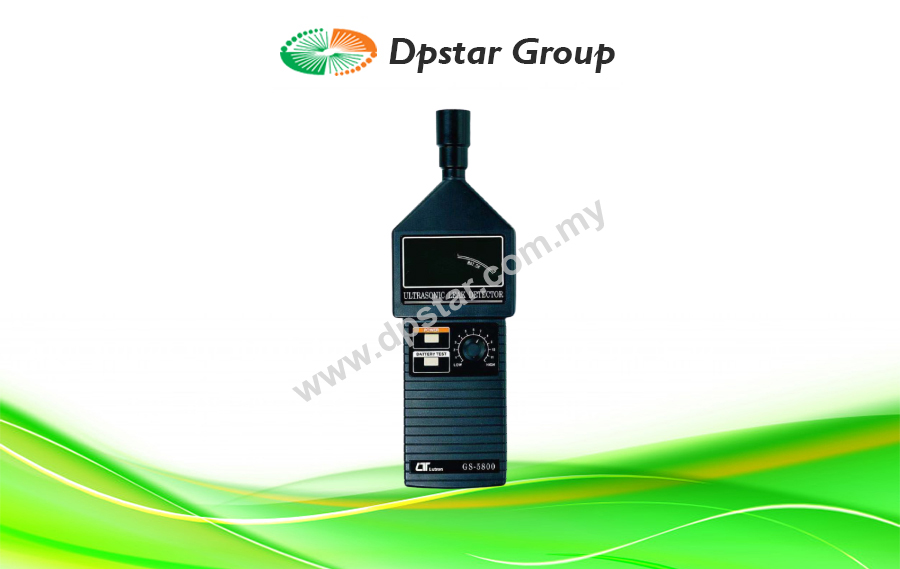

Ultrasonic Leakage Detector – Lutron GS-5800

Features

Application : Air leaks around door & window gaskets & seals, Conduit & pipe identification, Windshield leaks…
Bar LED to show the leakage level.
Size : 255 x 70 x 28 mm

Categories: Test Instruments, Lutron ~ Test Instruments, Thiết bị test, Ultrasonic Leakage Detector, Ultrasonic Transmitter

Ultrasonic Leakage Detector
Model : GS-5800

Application : Air leaks around door & window gaskets & seals, Conduit & pipe identification, Windshield leaks…
Bar LED to show the leakage level.
Size : 255 x 70 x 28 mm

Specification

Sensitivity for Leakage Indicator	Bar LED display panel & audible tone. * The LED display indicator of the detector is a relative measurement only.
Frequency Response	20 KHz to 100 KHz.
Power Supply	DC 9V battery. 006P, MN1604 ( PP3 ) or equivalent, Alkaline or heavy duty type battery.
Power Consumption	Approx. DC 34 mA.
Operating Temp.	0 °C to 50°C ( 32 °F to 122°F ).
Operating Humidity	Less than 80% RH.
Weight	Approx. 260 g/0.57 LB ( including battery ).
Size	HWD 255 x 70 x 28 mm ( 10.0 x 2.8 x 1.1 inch ).
Accessories Included	• Operational manua l………………………………………………..1 PC. • Rubber bottle plug with plastic tubing………………………1 PC. • 1/2 inch PVC pipe…………………………………………………..1 PC. • Hard carrying case………………………………………………….1 PC.
Optional Accessory	Earphone, Model : EA-100

Download

Lutron GS-5800 – Ultrasonic Leakage Detector-DpstarGroup
