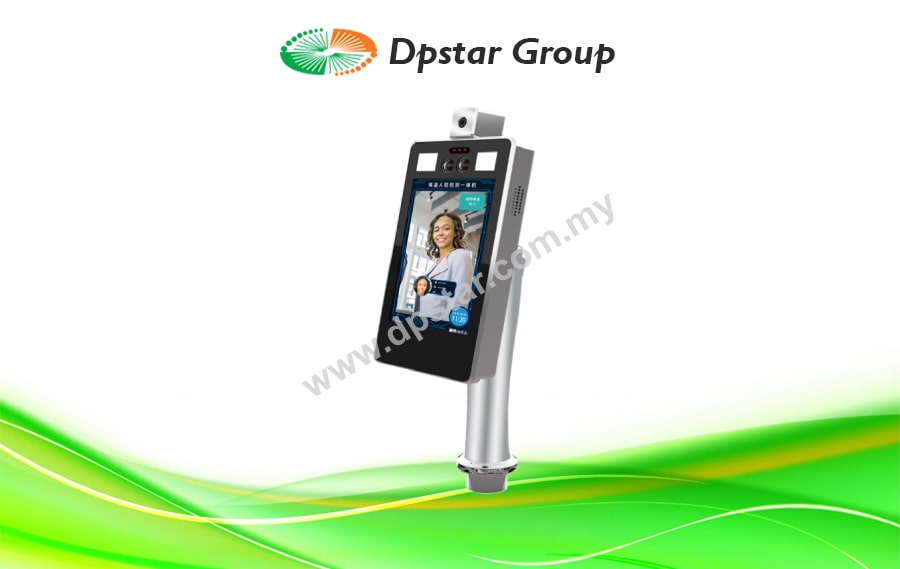

Thermscan Temperature Scanner With Built-in Facial Recognition

Features

– Thermometry Range：34°C-42°C
– Accuracy：±0.3°C
– Thermometry Time：≤1s
– Distance：30-45cm [Matrix Forehead]
– Embedded Linux OS
– Living Face Detection & Recognition
– 10000 Face Library, Voice Broadcast
– 4G / WIFI / GPS optional
– ID / IC Card Reader optional
– Alarm Output / Wagen Output
– Real-time Temperature Display, High Temperature Alarm
– Face Recognition + Temperature Record can be checked, store no less than 10W records
– Support Stranger ID Card Verification Pass

Enquiry
Category:
Love0

Dpstar Group has launched a new product which is Thermscan Temperature Scanner with Built-In scanner for facial recognition and the facial recognition systems launched is to help early prevention of virus spread in any organization. This device can be an attendance machine for HR department to keep track and is also a health monitor in the same system.

Specification

Display
Dimensions 7″ full-angle IPS LCD screen
Resolution 1280 x 720
Camera
Type Dual Camera
Sensor 1/2.8″ SONY starlight CMOS
Resolution 1080P @ 30fps
Lens 3.6mm x 2
Temp. Measurement
Measuring Area Forehead
Temperature Range 34°C to 42°C
Measuring Distance 0.3 to 0.45m
Accuracy ± 0.3°C
Response Time ≤ 1 sec
Face Recognition
Detection type AI Built In Facial Recognition
Detection distance 0.3 to 1.3m, support
detection target size
filter adjustment
Recognize face size Pupils distance ≥ 60 pixels;
Face pixel ≥150 pixels
Data capacity Built-in ≤ 10000 faces;
support black/white list
Posture Within 20° angle
Occlusion Ordinary glasses or hair will not affect recognition function.
Facial expression Regular expression
Detection time ≤ 1 sec
Face exposure Support
Local exposure Support storage of 100,000 records, Face capture accuracy ≥99%
Recognition area Full image, Area of interest
Upload Method TCP, FTP, HTTP, API function calling upload
Network Functions
Network protocol IPv4, TCP/IP, NTP, FTP, HTTP
Interface Protocol ONVIF, RTSP
Authorization Username and password
Event linkage TF card storage, FTP upload, alarm output linkage, Wiegand
output linkage, voice broadcast
System Upgrade Support remote upgrade
Other –
Accessories
Secondary lighting IR light, LED white light
Identification Module – Support built-in IC card B49reader module (Optional)
– Support built-in ID card reader module (Optional)
Audio output Match identification, high temperature (Alarm)
Network Module Support built-in 4G module (Optional)
Interface
Network Interface RJ45 10M/100M Network
Adaptation
Alarm Input 2 channels
Alarm Output 2 channels
RS485 Interface Yes
TF Card Slot Supports up to 128G of local storage
USB Yes
Wiegand Interface Support Wiegand 26, 34, 66 protocols
Reset Button Yes
Sim Card Slot Optional
General
Operating Temperature -20°C to 60°C
Relative Humidity 0% to 90%
Protection Level IP66
Power Supply 12 VDC
Power dissipation (maximum) ≤ 12 W
Dimensions (mm) 406mm(H) x 120mm(W)
Installation Method Wall mount / Stand mount / Barrier
