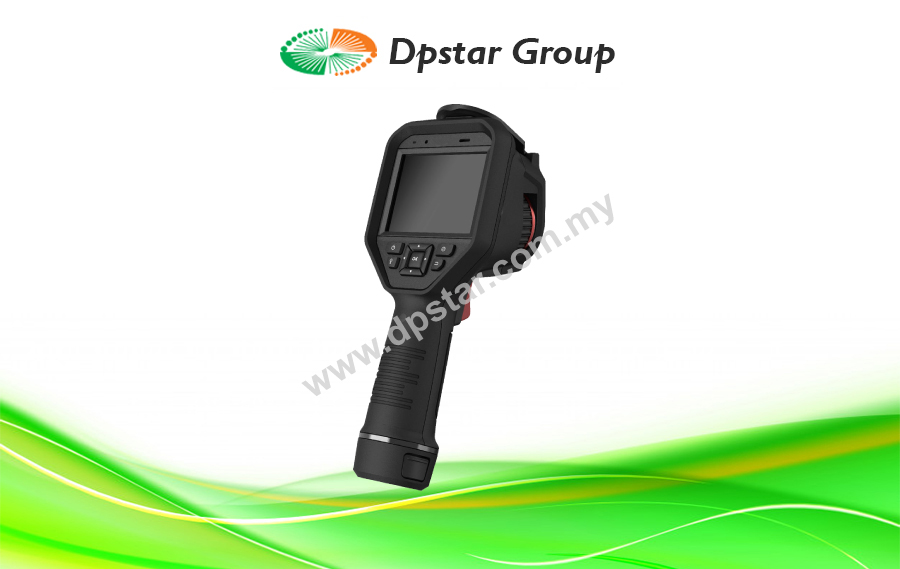

Thermographic Handheld Camera

Features

– 160 × 120 resolution (thermal), and 8 MP resolution (optical)
– Thermographic accuracy up to ±0.5 °C
– Display fusion of thermal view and optical view
– 640 × 480 resolution 3.5” LCD touch display
– Support live view on PC, mobile device or external monitor
– Support audio intercom
– Support color highlight alarm and audio alarm

Enquiry
Category:
Love0

The handheld thermal camera, specially designed for body temperature measurement. It’s equipped with a 160×120 resolution thermal detector. It is capable to discover and track people with higher body temperature among the crowded public area, it can be widely used in places such as customs, airport, school and hospital for inspection and quarantine.

Specification

Parameter Image sensor Uncooled Focal Plane Arrays
Resolution 25Hz: 160 × 120
Pixel Pitch 17μm
Response waveband 8μm to 14μm
Thermal Module NETD < 40 mk (@ 25 °C,F#=1.0)
Field of View 25° × 18.7°
Focal length 6.2 mm (Manual focus)
IFOV 2.74 mrad
Aperture F 1.1
Optical Module Picture Resolution Configurable: 2 MP, 5 MP, 8 MP
Video Resolution 640 × 480
Image Display Monitor 640 × 480 resolution 3.5’’ LCD touch display
Palettes Black hot, White hot, Red hot, Rainbow, Ironbow,
Fusion, Rain
Digital Zoom Thermal：1×, 2×, 4×
Thermal / Optical Thermal/Optical/Fusion image/Picture in picture
Picture in Picture Support Thermal View in Optical View
Fusion Support (Thermal View and Optical View Combined)
Record Video Support on-board video recording
Thermography Rules Max. Temperature; Min. Temperature; Center
Temperature; Custom Point/Line/Area Thermography
Range 30°C to 45°C
Accuracy ±0.5°C
Battery Battery Type Dismountable and rechargeable Li-ion Battery
Battery Operating Time 5 hours in normal temperature, with Wi-Fi, Bluetooth, and supplement light off.
4 hours in normal temperature, with Wi-Fi, Bluetooth, and supplement light on.
Storage Built-in memory module (16 G)
Photo Thermal/Optical/Fusion image
Video Thermal/Optical/Fusion image
Wi-Fi Support
Text Comment Support
Voice Comment Support
Language English
General Power 5 VDC/2 A
Power Consumption Max. 4.5 W
Hardware Interface Type-C Interface
Working Temperature 15°C to 35 °C
Protection level IP54
Drop Test Height 2 m (6.56 feet)
Dimension 244 mm × 100 mm × 104 mm (9.6 ″ × 3.9 ″ × 4.1 ″)
Weight With Battery: 653 g (1.44 lb)
Without Battery: 511 g (1.13 lb)
