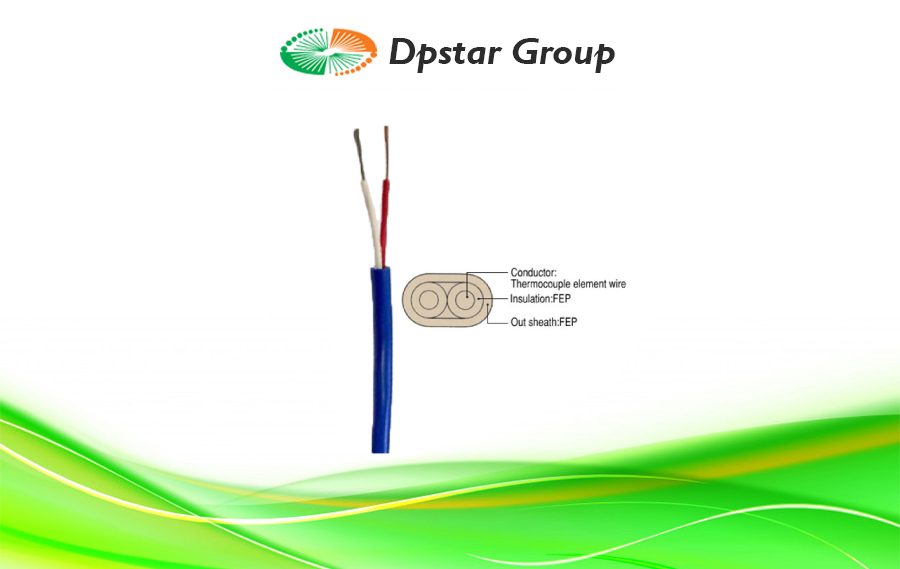

Ninomiya Fluorocarbon-resin Duplex Insulated Thermocouple Wire

Features

Duplex-insulated thermocouple wires insulated and sheathed with fluorocarbon-resin FEP. FEP is an ideal insulation material with various excellent properties such as electrical properties, heat-resistance, cold-resistance, oil-resistance, chemical-resistance, etc. This series can be used in a wide range of temperatures from -250℃ to +200℃. Duplex insulated thermocouple wires insulated and sheathed with fluorocarbon-resin PFA are also available. PFA type also can be used in a wide range of temperature from -200℃ to +260℃, and having properties equivalent to the FEP type.

Enquiry
Categories: ,
Love0

Duplex-insulated thermocouple wires insulated and sheathed with fluorocarbon-resin FEP. FEP is an ideal insulation material with various excellent properties such as electrical properties, heat-resistance, cold-resistance, oil-resistance, chemical-resistance, etc. This series can be used in a wide range of temperatures from -250℃ to +200℃. Duplex insulated thermocouple wires insulated and sheathed with fluorocarbon-resin PFA are also available. PFA type also can be used in a wide range of temperature from -200℃ to +260℃, and having properties equivalent to the FEP type.

Specification

Parts No. Conductor Insulation Parts OD mm Sheath
thickness mm		 Finished OD mm Conductor resistance Ω/m Color
OD mm Thickness mm OD mm Insulation Sheath
+ –
0.1 x1P  K-6F 0.1 0.15 0.4 0.4×0.8 0.2 0.8×1.2 123.5 Red White Blue
0.2 x1P  K-6F 0.2 0.15 0.5 0.5×1.0 0.2 0.9×1.4 30.9 Red White Blue
0.32 x1P  K-6F 0.32 0.15 0.62 0.62×1.24 0.2 1.0×1.6 12.1 Red White Blue
0.65 x1P  K-6F 0.65 0.2 1.05 1.05×2.1 0.2 1.5×2.5 2.95 Red White Blue
0.1 x1P  E-6F 0.1 0.15 0.4 0.4×0.8 0.2 0.8×1.2 150.2 Red White Purple
0.2 x1P  E-6F 0.2 0.15 0.5 0.5×1.0 0.2 0.9×1.4 37.6 Red White Purple
0.32 x1P  E-6F 0.32 0.15 0.62 0.62×1.24 0.2 1.0×1.6 14.7 Red White Purple
0.65 x1P  E-6F 0.65 0.2 1.05 1.05×2.1 0.2 1.5×2.5 3.56 Red White Purple
0.1 x1P  J-6F 0.1 0.15 0.4 0.4×0.8 0.2 0.8×1.2 78.3 Red White Yellow
0.2 x1P  J-6F 0.2 0.15 0.5 0.5×1.0 0.2 0.9×1.4 19.6 Red White Yellow
0.32 x1P  J-6F 0.32 0.15 0.62 0.62×1.24 0.2 1.0×1.6 7.64 Red White Yellow
0.65 x1P  J-6F 0.65 0.2 1.05 1.05×2.1 0.2 1.5×2.5 1.7 Red White Yellow
0.1 x1P  T-6F 0.1 0.15 0.4 0.4×0.8 0.2 0.8×1.2 64.6 Red White Brown
0.2 x1P  T-6F 0.2 0.15 0.5 0.5×1.0 0.2 0.9×1.4 16.2 Red White Brown
0.32 x1P  T-6F 0.32 0.15 0.62 0.62×1.24 0.2 1.0×1.6 6.17 Red White Brown
0.65 x1P  T-6F 0.65 0.2 1.05 1.05×2.1 0.2 1.5×2.5 1.5 Red White Brown

Download

Ninomiya Fluorocarbon Resin Duplex Insulated Thermocouple Wire-DpstarGroup
