Thermocouple Extension Cables – Ninomiya Silicon 1-Pair (Flat Type)

Features

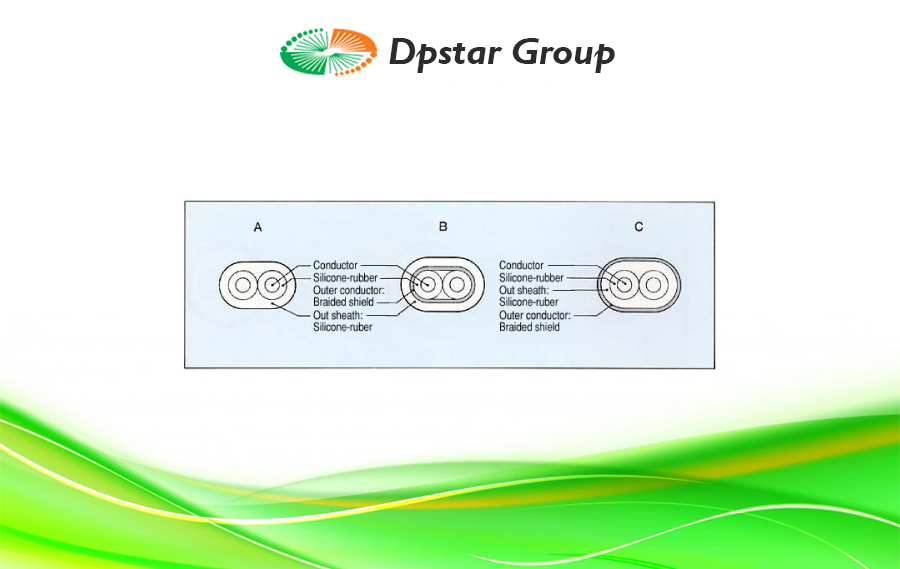

2 elemental compensating wires are insulated with silicone separately, bound in parallel, shielded with tin-coated annealed copper wires (B), coated with silicone, and braided with stainless wires (C) for protection at the outermost.

Enquiry
Category:
Love0

2 elemental compensating wires are insulated with silicone separately, bound in parallel, shielded with tin-coated annealed copper wires (B), coated with silicone, and braided with stainless wires (C) for protection at the outermost.

Specification

Parts No. Construction No. of pairs Conductor Insulation OD of pair mm OD of cabling mm Shield
thickness
mm		 Sheath
thickness
mm		 Finished
OD
mm
Standing
No./mm		 OD
mm		 Thickness
mm		 OD
mm
12/0.18x1P □X-SR A 1 12/0.18 0.7 0.35 1.4 1.4×2.8 － 0.6 － 2.6×4.0
12/0.18x1P □X-SR-IS B 1 12/0.18 0.7 0.35 1.4 1.4×2.8 0.3 0.6 － 3.2×4.6
12/0.18x1P □X-SR-SOS C 1 12/0.18 0.7 0.35 1.4 1.4×2.8 － 0.6 0.3 3.2×4.6
7/0.3x1P □X-SR A 1 7/0.3 0.9 0.5 1.9 1.9×3.8 － 0.7 － 3.3×5.2
7/0.3x1P □X-SR-IS B 1 7/0.3 0.9 0.5 1.9 1.9×3.8 0.3 0.7 － 3.9×5.8
7/0.3x1P □X-SR-SOS C 1 7/0.3 0.9 0.5 1.9 1.9×3.8 － 0.7 0.3 3.9×5.8
20/0.18x1P □X-SR A 1 20/0.18 1 0.45 1.9 1.9×3.8 － 0.7 － 3.3×5.2
20/0.18x1P □X-SR-IS B 1 20/0.18 1 0.45 1.9 1.9×3.8 0.3 0.7 － 3.9×5.8
20/0.18x1P □X-SR-SOS C 1 20/0.18 1 0.45 1.9 1.9×3.8 － 0.7 0.3 3.9×5.8
30/0.18x1P □X-SR A 1 30/0.18 1.2 0.5 2.2 2.2×4.4 － 0.8 － 3.8×6.0
30/0.18x1P □X-SR-IS B 1 30/0.18 1.2 0.5 2.2 2.2×4.4 0.3 0.8 － 4.4×6.6
30/0.18x1P □X-SR-SOS C 1 30/0.18 1.2 0.5 2.2 2.2×4.4 － 0.8 0.3 4.4×6.6
7/0.45x1P □X-SR A 1 7/0.45 1.35 0.6 2.55 2.55×5.1 － 1 － 4.6×7.1
7/0.45x1P □X-SR-IS B 1 7/0.45 1.35 0.6 2.55 2.55×5.1 0.3 1 － 5.2×7.7
7/0.45x1P □X-SR-SOS C 1 7/0.45 1.35 0.6 2.55 2.55×5.1 － 1 0.3 5.2×7.7
4/0.65x1P □X-SR A 1 4/0.65 1.57 0.6 2.77 2.77×5.54 － 1 － 4.8×7.5
4/0.65x1P □X-SR-IS B 1 4/0.65 1.57 0.6 2.77 2.77×5.54 0.3 1 － 5.4×8.1
4/0.65x1P □X-SR-SOS C 1 4/0.65 1.57 0.6 2.77 2.77×5.54 － 1 0.3 5.4×8.1
7/0.65x1P □X-SR A 1 7/0.65 1.95 0.6 3.15 3.15×6.3 － 1 － 5.2×8.3
7/0.65x1P □X-SR-IS B 1 7/0.65 1.95 0.6 3.15 3.15×6.3 0.3 1 － 5.8×8.9
7/0.65x1P □X-SR-SOS C 1 7/0.65 1.95 0.6 3.15 3.15×6.3 － 1 0.3 5.8×8.9

Please fill in □ with a type (symbol) of a compensating cable to order.
We also manufacture outer shields for tin-coated annealed copper wires (OS). Please contact us with any requests.
Our silicone-rubber compensating cables are well received in the market, because of their purpose-specific constructions/structures. Please contact us with any requests.
