14 (7 pairs) elemental compensating wires are insulated with PVC separately, stranded together after stranded in pairs, shielded with tin-coated annealed copper wires (B) or copper tape (C), and coated with PVC at the outermost.
Thermocouple Extension Cables – Ninomiya PVC Cable 7-Pairs (Round Type)
Features

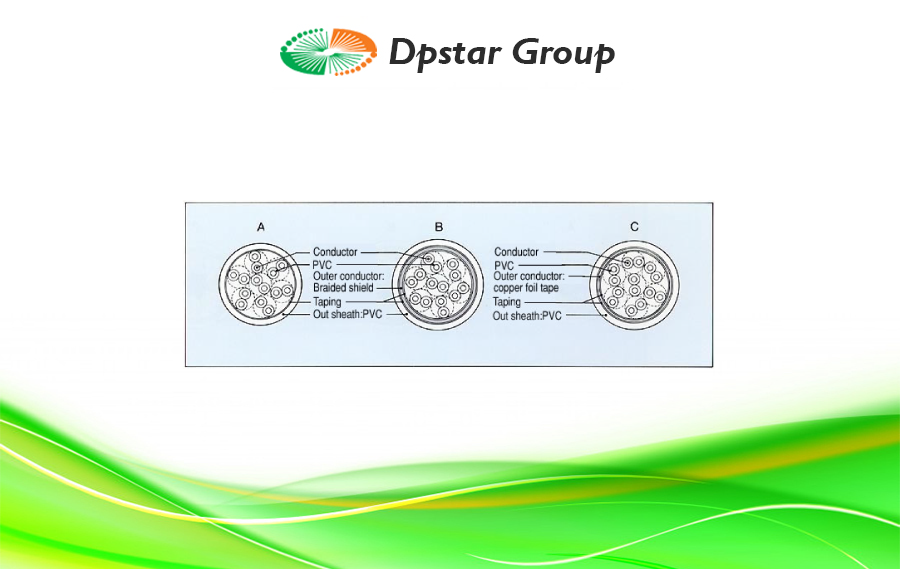

14 (7 pairs) elemental compensating wires are insulated with PVC separately, stranded together after stranded in pairs, shielded with tin-coated annealed copper wires (B) or copper tape (C), and coated with PVC at the outermost.
Specification
| Parts No. | Construction | No. of pairs | Conductor | Insulation | OD of pair mm | OD of cabling mm | Shield thickness mm |
Sheath thickness mm |
Finished OD mm |
||
| Standing No./mm |
OD mm |
Thickness mm |
OD mm |
||||||||
| 12/0.18x7P □X-G=V■T | A | 7 | 12/0.18 | 0.7 | 0.4 | 1.5 | 3 | 7.8 | － | 1 | 9.9 |
| 12/0.18x7P □X-G-IS=V■T | B | 7 | 12/0.18 | 0.7 | 0.4 | 1.5 | 3 | 7.8 | 0.3 | 1 | 10.6 |
| 7/0.3x7P □X-G=V■T | A | 7 | 7/0.3 | 0.9 | 0.5 | 1.9 | 3.8 | 9.9 | － | 1.2 | 12.4 |
| 7/0.3x7P □X-G-IS=V■T | B | 7 | 7/0.3 | 0.9 | 0.5 | 1.9 | 3.8 | 9.9 | 0.3 | 1.2 | 13.1 |
| 20/0.18x7P □X-G=V■T | A | 7 | 20/0.18 | 1 | 0.5 | 2 | 4 | 10.4 | － | 1.2 | 12.9 |
| 20/0.18x7P □X-G-IS=V■T | B | 7 | 20/0.18 | 1 | 0.5 | 2 | 4 | 10.4 | 0.3 | 1.4 | 13.6 |
| 30/0.18x7P □X-G=V■T | A | 7 | 30/0.18 | 1.2 | 0.5 | 2.2 | 4.4 | 11.4 | － | 1.4 | 14.3 |
| 30/0.18x7P □X-G-IS=V■T | B | 7 | 30/0.18 | 1.2 | 0.5 | 2.2 | 4.4 | 11.4 | 0.3 | 1.4 | 15 |
| 7/0.45x7P □X-G=V■T | A | 7 | 7/0.45 | 1.35 | 0.5 | 2.35 | 4.7 | 12.2 | － | 1.6 | 15.8 |
| 7/0.45x7P □X-G-TIS=V■T | C | 7 | 7/0.45 | 1.35 | 0.5 | 2.35 | 4.7 | 12.2 | 0.1 | 1.6 | 16.4 |
| 4/0.65x7P □X-G=V■T | A | 7 | 4/0.65 | 1.57 | 0.6 | 2.77 | 5.54 | 14.4 | － | 1.6 | 18 |
| 4/0.65x7P □X-G-TIS=V■T | C | 7 | 4/0.65 | 1.57 | 0.6 | 2.77 | 5.54 | 14.4 | 0.1 | 1.6 | 18.6 |
| 7/0.65x7P □X-G=V■T | A | 7 | 7/0.65 | 1.95 | 0.6 | 3.15 | 6.3 | 16.4 | － | 1.8 | 20.4 |
| 7/0.65x7P □X-G-TIS=V■T | C | 7 | 7/0.65 | 1.95 | 0.6 | 3.15 | 6.3 | 16.4 | 0.1 | 1.8 | 21 |
| Please fill in □ with a type of a compensation cable (first two alphabets of the symbol) to order. Please fill in ■ with symbols of an insulator and a PVC:Regular PVC = V, Flame retardant heat-resistant PVC = V1, Soft PVC = V3 We also manufacture inner shields with aluminum-Mylar drain wires (AIS). Please contact us with any requests. |
