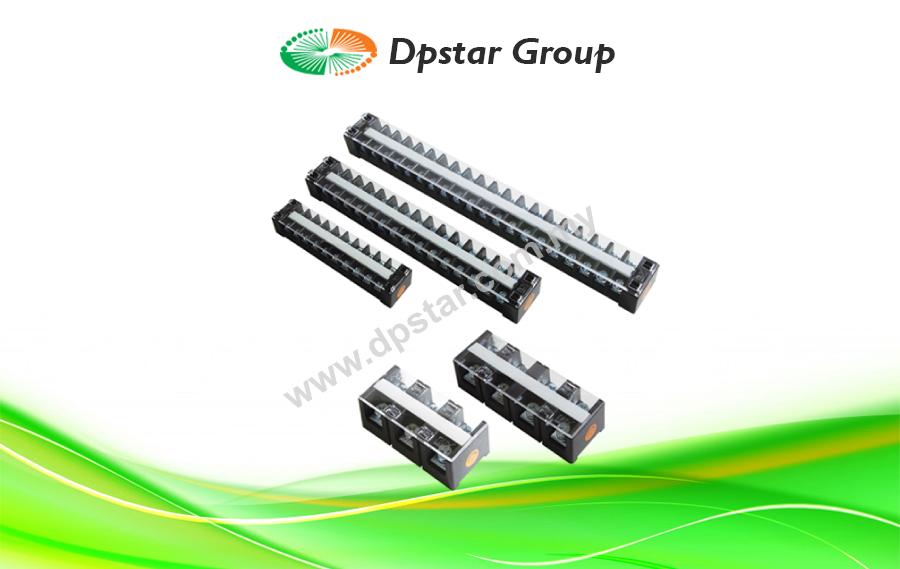

Terminal Block – Hanyoung Nux HYT Series

Features

Various polarities for each current capacity so easy selection
Body of Phenolic resin (60 – 500 A) and ABS flame retardancy resin (10 – 30 A)
Because the bolt and plate are made as heat treatment and rust-proof treatment, it has excellent electrical and mechanical characteristic
Standard product of rated current
Simple installation

Category: Terminal Block

HYT Series

Various polarities for each current capacity so easy selection
Body of Phenolic resin (60 – 500 A) and ABS flame retardancy resin (10 – 30 A)
Because the bolt and plate are made as heat treatment and rust-proof treatment, it has excellent electrical and mechanical characteristic
Standard product of rated current
Simple installation

Specification

Model		HYT – 10	HYT – 20	HYT – 30	HYT – 60	HYT – 100
Rated current		10 A	20 A	30 A	60 A	100 A
Terminal block screw		M3	M4		M6	M7
Fixing hole		Ø3.5	Ø5	Ø5.2	Ø5	Ø5.5
Thread spacing		9.6mm	11.8mm	15.5mm (*3010: 13.4mm)	28mm	34.6mm
Rated insulation voltage		600 V
Insulation resistance		min 100 MΩ
Dielectric strength		2500 V a.c for 1 min (between the recharging part and non-recharging part)
Ambient temperature		-20 ~ 55 ℃
Ambient humidity		45 – 80 % R.H.

Model		HYT – 150	HYT – 200	HYT – 300	HYT – 400	HYT – 500
Rated current		150 A	200 A	300 A	400 A	500 A
Terminal block screw		M9		M10		M12
Fixing hole		Ø7		Ø8.5
Thread spacing		1503: 38.3mm 1504: 37.5mm	45.mm	3003: 51.5mm 3004: 50.3mm	4003: 51.mm 4004: 50.3mm	68.9mm
Rated insulation voltage		600 V
Insulation resistance		min 100 MΩ
Dielectric strength		2500 V a.c for 1 min (between the recharging part and non-recharging part)
Ambient temperature		-20 ~ 55 ℃
Ambient humidity		45 – 80 % R.H.

Ordering Code

Model	Code		Description
HYT-			Fixing type terminal block (Han Young Terminal Block)
Rated current	10		10 : 10 A, 20 : 20 A, 30 : 30 A, 60 : 60 A, 100 : 100 A, 150 : 150 A, 200 : 200 A, 300 : 300 A, 400 : 400 A, 500 : 500 A
	20
	30
Number of polarity(P)		3	Different polarities for each rated current (Please refer to the specification of each rated current)
		4
		6
		10
