SD24 Series is high functionality-type indicator of high precision ±0.1% FS + 1 digit, 1/1000°C display (Pt 0.000–30.000 °C). Peak hold, bottom hold, display hold function, external 2-point control input are standard features.

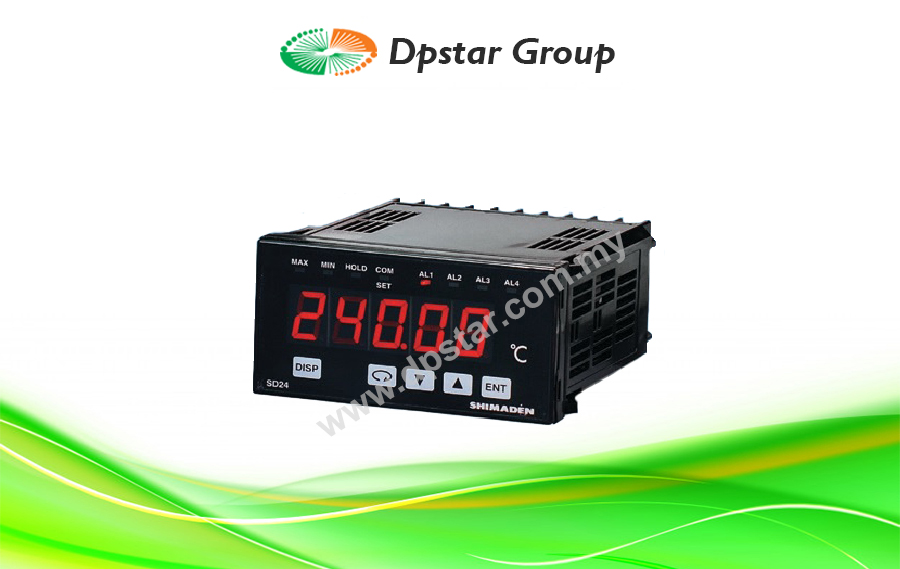

Temperature Indicator – Shimaden SD24 Series
Features
- High Accuracy ±0.1% FS+1 digit
- 1/1000 ºC Resolution Indication Possible (Pt input 0.000 – 30.000 ºC)
- 3 Display Modes (Peak Hold, Bottom Hold, Display Hold)
- External Control Input (2 points) as a Standard Feature
- C contact (2 points) or a contact (4 points) can be selected for alarm output.
- Analog Output Hold Function (Hold Display Value Output)
- Communication Function RS-485/RS-232C
(Shimaden Standard Protcol/MODBUS) - Linear Approximation Operation Function (Voltage/Current Input only)
- Dust-proof and drip-proof structure: IP66 equivalent
Ordering Information
| ITEM | CODE | SPECIFICATIONS | ||||||||||||||
| SERIES | SD24- | DIN 48×96 Temperature Indicator, DI 2 points | ||||||||||||||
| INPUT | 8 | Universal-input Input resistance: 500 kΩ minimum • Thermocouple • R.T.D.: Pt100/JPt100 |
Refer to “Measuring Range Codes” for details of input type and measuring range. |
|||||||||||||
| • Voltage (mV): -10 – 10, 0 – 10, 0 – 20, 0 – 50, 10 – 50, 0 – 100, -100 – 100 mV DC |
Voltage mV, V, Current mA range Scaling Possible (inverse scaling possible) Range: -9999 – 30000 units Span: 10 – 40000 units |
|||||||||||||||
| 6 | Voltage (V) Input resistance: 500 kΩ minimum -1 – 1, 0 – 1, 0 – 2, 0 – 5, 1 – 5, 0 – 10, -10 – 10 V DC |
|||||||||||||||
| 4 | Current (mA) Receiving impedance: 250 Ω 0 – 20, 4 – 20 mA DC |
|||||||||||||||
| POWER SUPPLY | 90- | 100 – 240V AC±10%, (50/60 Hz) | ||||||||||||||
| 08- | 24 V AC (50/60 Hz)/DC±10% | |||||||||||||||
| ALARM (OPTION) | 0 | None | ||||||||||||||
| 1 | Individually set/output 4 points (a contact) | |||||||||||||||
| 2 | Individually set/output 2 points (c contact) | |||||||||||||||
| ANALOG OUTPUT/ CONMMUNICATION FUNCTION (OPTION) |
00 | None | ||||||||||||||
| 03 | 0 – 10 mV DC Output resistance: 10 Ω | Scaling Possible (inverse scaling possible) (within measuring range) |
||||||||||||||
| 04 | 4 – 20 mA DC Resistive load: 300 Ω max. | |||||||||||||||
| 06 | 0 – 10 V DC Load current: 2 mA max. | |||||||||||||||
| 50 | RS-485 | |||||||||||||||
| 70 | RS-232C | |||||||||||||||
| SENSOR DC POWER SUPPLY (OPTION) | 0 | Without | ||||||||||||||
| 1 | With 24 V DC 50 mA | |||||||||||||||
| REMARKS | 0 | Without | ||||||||||||||
| 9 | With | |||||||||||||||
