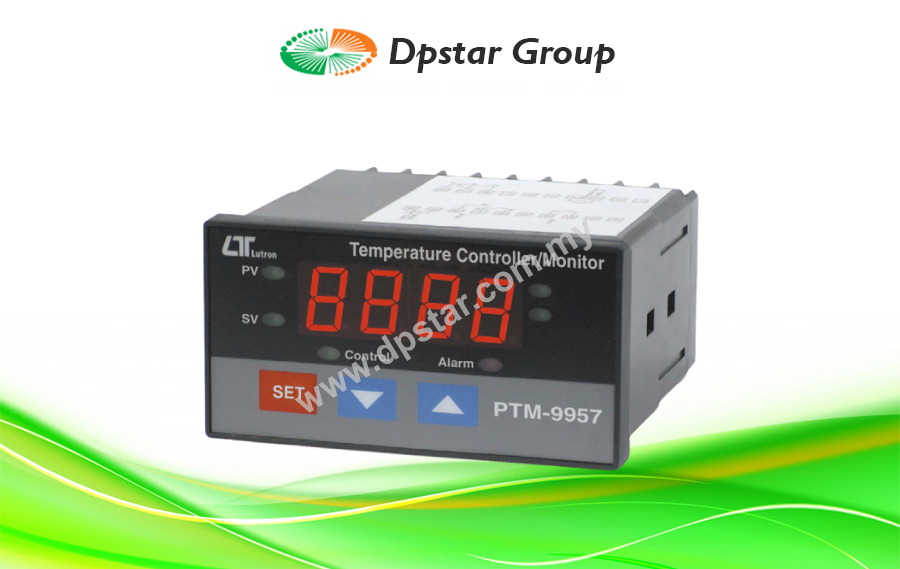

Temperature Controller/Monitor – Lutron PTM-9957

Temperature Controller/Monitor
Model : PTM-9957

• Temperature sensor : type K/J/T/E/R/S thermocouple, Pt 100 ohm.
• Type K range : -100 to 1300 oC, oC/oF.
  1. Type J range : -100 to 1200 oC, oC/oF.
  2. Type T range : -100 to 400 oC, oC/oF.
  3. Type E range : -100 to 900 oC, oC/oF.
  4. Type R range : 0 to 1700 oC, oC/oF.
  5. Type S range : 0 to 1500 oC, oC/oF.
  6. Pt 100 ohm range : -199 to 850 oC, oC/oF.
• Resolution :
  1. 0.1 degree (< 1000 degree)
  2. 1 degree (≥1000 degree)
•  Control setting, Hi/Lo alarm setting.
• Control relay output, alarm relay output.
• Power : 90 ACV to 264 ACV, 50/60 Hz.
• RS-232/USB computer interface.
• DIN size : 96 x 48 mm. Depth : 107 mm.
• Optional type K probe : TP-01, TP-02A, TP-03, TP-04, TP-05.
• Optional Pt probe : TP-100B.
• Optional USB cable, USB-01.
• Optional data acquisition software, SW-U801-WIN, SW-E802.
