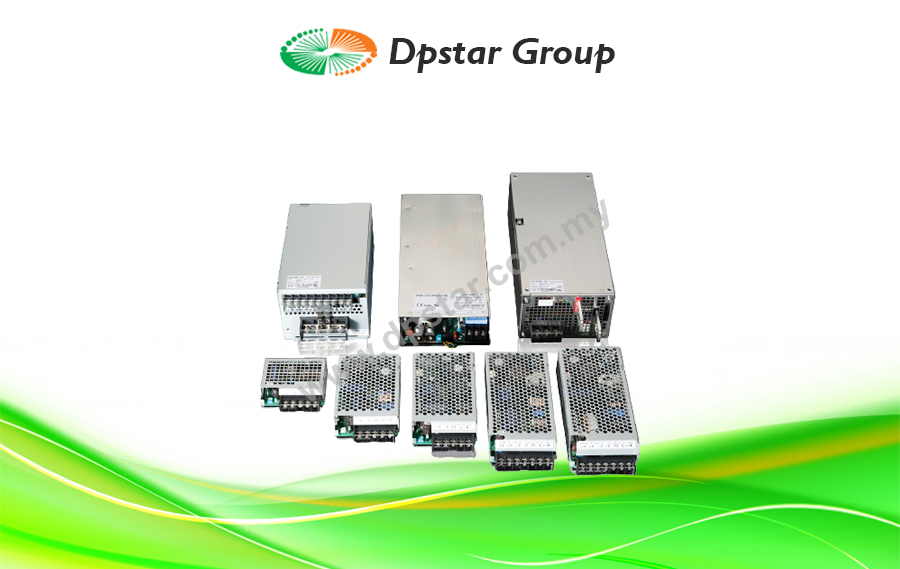

Switching Mode Power Supply – Fine Suntronix CSF1500

Features

  • Wide Input voltage range (free voltage or auto selection).
  • Over Voltage Protection (except for 15W).
  • Over Current Protection.
  • 4 Year Warranty.
Enquiry
Categories: ,
Love0

Dpstar Group is a Malaysia power supply system supplier specializing in AC/DC power supply and switching mode power supply systems. The CSF series switching mode power supplies provide efficient power conversion and stable power supply with minimal noise and ripple.

A switched-mode power supply (SMPS) is an electronic circuit that converts power using switching devices that are turned on and off at high frequencies, and storage components such as inductors or capacitors to supply power when the switching device is in its non-conduction state. Switching power supplies have high efficiency and are widely used in a variety of electronic equipment, including computers and other sensitive equipment requiring stable and efficient power supply. A switched-mode power supply is also known as a switch-mode power supply or switching-mode power supply.

Block Diagram

Dimension

Specification

Model CSF600 CSF1000 CSF1500
Input Voltage, Frequency AC100-240V(AC85~264V or DC120-370V),
50/60Hz Universal Input
Output Voltage/
Current		 3.3V 100A – –
5V 100A – 240A
9V 66.5A – 150A
12V 50A 60A 125A
15V 40A 50A 100A
24V 25A 40A 63A
48V 12.5A 21A 32A
Input Current [A]
(lo=100%)		 110V 7.2 12 16
220V 3.6 6 7.8
Efficiency [%] 110V 81 typ 88 typ 86 typ
220V 84 typ 88 typ 90 typ
Power Factor 110V 0.98 0.98 0.98
220V 0.93 0.95 0.95
Operating Temp And Humid -10~+70°C (Required Derating), 20~90% RH (Non-Condensing)
Safety Regulation UL, C-UL, CE, CB
Size (W×H×D/mm) 120×52×190 127×41×295 126.5×82×280
Weight (g) 2000 1500 3800

Download

Fine Suntronix CSF1500 Switching Mode Power Supply_DpstarGroup
