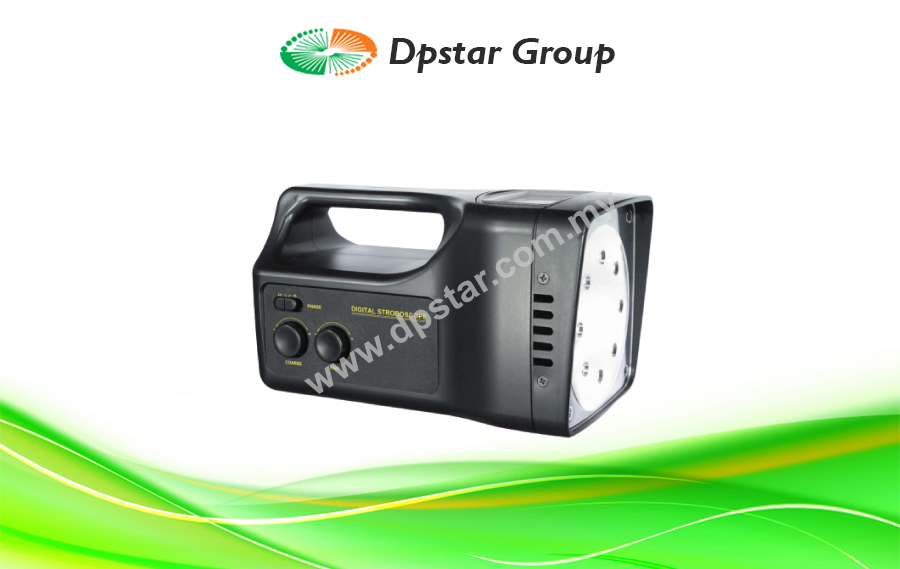

Stroboscopes – Lutron DT-2199

Features

Stroboscope use high intensity LED array.
LCD display with back light.
Stroboscope range : 100 to 99,999 RPM.
Power supply : Batteries, 1.5 V (UM-1, D) x 4 PCs.
AC/DC adapter is optional.

Categories: Test Instruments, Lutron ~ Test Instruments, Thiết bị test, Stroboscopes

Stroboscope, Battery Power, LED Array
Model : DT-2199

Stroboscope use high intensity LED array.
LCD display with back light.
Stroboscope range : 100 to 99,999 RPM.
Power supply : Batteries, 1.5 V (UM-1, D) x 4 PCs.
AC/DC adapter is optional.

Specification

Display	5 digits ( 0 to 99999 ) LCD display.
Circuit	Exclusive one-chip design microprocessor LSI circuit.
Measurement	FPM ( rotation per minute ).
Sampling Time	Approx. 1 second.
Calibration	Crystal time base and microprocessor circuit, no external calibration process required.
Operating Temperature	0 to 50 ℃ ( 32 to 122℉ )
Humidity	Less than 80% R.H.
Power Supply	DC 1.5 V, UM-1 (D type) battery x 4 PCs * DC 9V adapter input is built, AC/DC adapter is opional, not in included.
Power Consumption Weight Dimensions	• Stroboscope ( 3600 FPM ) : DC 160 mA.• 800 g ( 1.76 LB ). 21 cmx12 cmx12 cm (8.3″x4.8″x4.8″).
Accessories Included	Operation manual……………………………………………………1 PC.
Optional Accessories	ACV 110V, 220/230V to DC 9V adapter.
