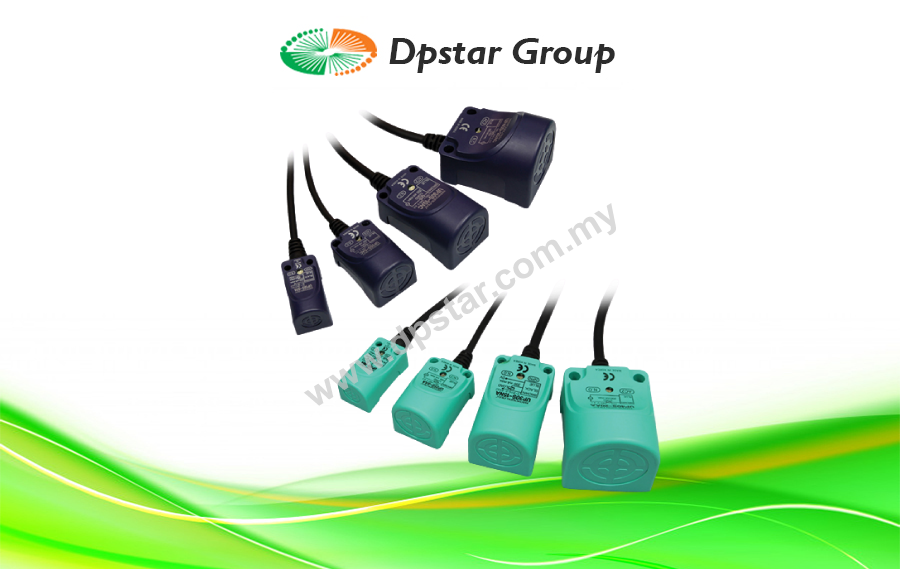

Square Type Proximity Sensor - Hanyoung Nux UP

Specification

Inductive D.C 3 wire type

Model	NPN	UP18S-5N	UP18S-8N	UP25S-5N	UP25S-8N	UP25S-12N	UP30S-10N	UP30S-15N	UP40S-20N
	PNP	UP18S-5P	UP18S-8P	UP-25S5P	UP25S-8P	UP25S-12P	UP30S-10P	UP30S-15P	UP40S-20P
	Size	Side length 18mm		Side length 25mm			Side length 30mm		Side length 40mm
Standard sensing object (mm)		Iron 18X18X1	Iron 25X25X1	Iron 25X25X1	Iron 30X30X1	Iron 35X35X1	Iron 30X30X1	Iron 45X45X1	Iron 60X60X1
Sensing distance		5 mm	8 mm	5 mm	8 mm	12 mm	10 mm	15 mm	20 mm
Setting distance		0~4.0 mm	0~6.4 mm	0~4.0 mm	0~6.4 mm	0~9.6 mm	0~8.0 mm	0~12.0 mm	0~16.0 mm
Hysteresis		Less than 10% of sensing distance
ponse frequency		500 Hz	350 Hz	500 Hz	350 Hz	250 Hz	300 Hz	200 Hz	150 Hz
Power supply voltage		12~24 V d.c (Usable voltage range 5 – 35 V d.c)
Control output	Open/Close capacitance	200 mA Max. (Resistive load)
Control output	Residual voltage	Max 1.5 V
Current consumption		Max 6 mA
Operation indication		Red LED
Protective circuit		Power reversely connected protective circuit, Surge protective circuit and over current protective
Degree of protection		IP 67 (IEC standard)
Connection structure		Cable type (standard cable length 2m), Relay connector type
Material		Case : PBT resin, Cable holder : Polyester elastomer
Weight	Cable type	approx. 60g	approx. 60g	approx. 80g	approx. 80g	approx. 80g	approx. 90g	approx. 90g	approx. 110g
Weight	Relay connector type	approx. 20g	approx. 20g	approx. 40g	approx. 40g	approx. 40g	approx.60g	approx. 60g	approx. 80g

Inductive D.C 2 wire type

Model	NPN	UP18S-5T	UP18S-8T	UP25S-5T	UP25S-8T	UP25S-12T	UP30S-10T	UP30S-15T	UP40S-20T
	PNP	UP18S-5U	UP18S-8U	UP25S-5U	UP25S-8U	UP25S-12U	UP30S-10U	UP30S-15U	UP40S-20U
	Size	Side length 18 mm		Side length 25mm			Side length 30mm		Side length 40mm
Standard sensing object (mm)		Iron 18X18X1	Iron 25X25X1	Iron 25X25X1	Iron 30X30X1	Iron 35X35X1	Iron 30X30X1	Iron 45X45X1	Iron 50X50X1
Sensing distance		5 mm	8 mm	5 mm	8 mm	12 mm	10 mm	15 mm	20 mm
Setting distance		0~4.0 mm	0~6.4 mm	0~4.0 mm	0~6.4 mm	0~9.6 mm	0~8.0 mm	0~12.0 mm	0~16.0 mm
Hysteresis		Less than 10% of sensing distance
ponse frequency		500 Hz	350 Hz	500 Hz	350 Hz	250 Hz	300 Hz	200 Hz	150 Hz
Power supply voltage		12 – 24 V d.c (Usable voltage range 5 – 30 V d.c)
Control output	Open/Close capacitance	100 mA Max. (Resistive load)
Control output	Residual voltage	T(Polarity) : max 3.5 V, U(No polarity) : max 5 V
Current consumption		Max 1 mA
Operation indication		Red LED
Protective circuit		Power reversely connected protective circuit, Surge protective circuit and over current protective
Degree of protection		IP 67 (IEC standard)
Connection structure		Cable type (standard cable length 2m), Relay connector type
Material		Case : PBT resin, Cable holder : Polyester elastomer
Weight	Cable type	approx. 60g	approx. 60g	approx. 80g	approx. 80g	approx. 80g	approx. 90g	approx. 90g	approx. 110g
Weight	Relay connector type	approx. 20g	approx. 20g	approx. 40g	approx. 40g	approx. 40g	approx. 60g	approx. 60g	approx. 80g

Inductive A.C 2 wire type

Model	For A.C	UP25S-5A	UP25S-8A	UP25S-12A	UP30S-10A	UP30S-15A	UP40S-20A
	Size	Side length 25 mm			Side length 30 mm		Side length 40mm
Standard sensing object (mm)		Iron 25X25X1	Iron 30X30X1	Iron 35X35X1	Iron 40X40X1	Iron 50X50X1	Iron 60X60X1
Sensing distance		5 mm	8 mm	12 mm	10 mm	15 mm	20 mm
Setting distance		0~4.0 mm	0~6.4 mm	0~9.6 mm	0~8.0 mm	0~12.0 mm	0~16.0 mm
Hysteresis		Less than 10% of sensing distance
ponse frequency		20 Hz
Power supply voltage		100~240 V a.c (Usable voltage range 90 – 250 V d.c)
Control output		200 mA Max. (Resistive load)
Residual voltage		Max 10 V a.c
Leakage current		Max 2.2 mA
Operation indication		Red LED
Protective circuit		Surge protective circuit is built in.
Degree of protection		IP 67(IEC standard)
Connection structure		Cable type (standard cable length 2m), Relay connector type
Material		Case : PBT resin, Cable holder : Polyester elastomer
Weight	Cable type	approx. 80g	approx. 80g	approx. 80g	approx. 90g	approx. 90g	approx. 110g
	Relay connector type	approx. 40g	approx. 40g	approx. 40g	approx. 60g	approx. 60g	approx. 80g

Model	Code							Information
UP		S-						inductive type proximity sensor
Sensing area size	12							12 X 12 mm
	18							18 X 18 mm
	25							25 X 25 mm
	30							30 X 30 mm
	40							40 X 40 mm
Structure type		S						Square type
Sensing distance			4					4 mm(Only with UP12S-4)
			5					5 mm(Only with UP18S-5, UP25S-5)
			8					8 mm(Only with UP18S-8, UP25S-8)
			10					10mm (Only with UP30S-10)
			12					12mm (Only with UP25S-12)
			15					15mm (Only with UP30S-15)
			20					20mm (Only with UP40S-20)
Power and Output type				N				D.C NPN output
				P				D.C PNP output
				A				A.C 2 wire type(But UP18S is excluded)
				T				D.C 2 wire type(Polarity)
				U				D.C 2 wire type (No polarity)
Output state					A			Normal open(N.O)
Output state					C			Normal close(N.C)
Sensing direction						*		No indication (Detect Front side)
Sensing direction						U		Detect upper side (Only available with the square type UP18S)
Connection structure							*	No indication (Cable type)
Connection structure							CR	Relay connector type
