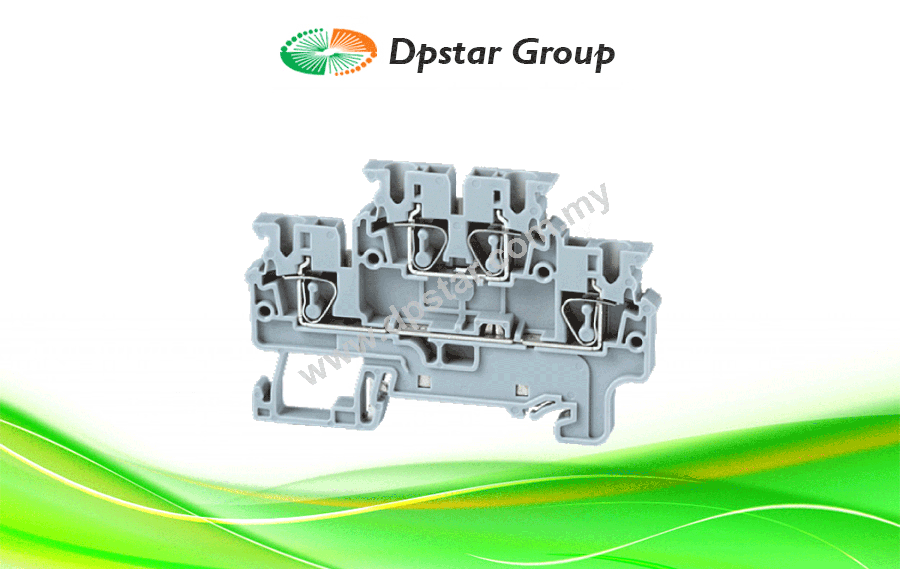

2.5 sq.mm Double Level Spring Clamp Terminal Blocks

CXDL2.5 is a double level Terminal Block used in high density wiring applications.



Enquiry
Category:
2.5 sq.mm Double Level Spring Clamp Terminal Blocks

CXDL2.5 is a double level Terminal Block used in high density wiring applications.

Specification

TECHNICAL DATA

Rated Voltage 1000 V
Rated Current 24 A
Housing Material Polyamide
Product Function Double Level
Wire Entry Orientation Top
Mounting Possibility DIN 35/DIN 35-15 Rail
Operated by Screw Driver
Rated Surge Voltage 8 KV
Pollution Degree 3

CONNECTION DATA

Conductor Cross Section Stranded min. 0.2 mm²
Conductor Cross Section Stranded max. 2.5 mm²
Conductor Cross Section AWG/Kcmil min 24 AWG
Conductor Cross Section AWG/Kcmil max 12 AWG
Conductor Cross Section Stranded with Ferrule/Lug min 0.2 mm²
Conductor Cross Section Stranded with Ferrule/Lug max 2.5 mm²
2 Conductors with same Cross Section Stranded min 0.2 mm²
2 Conductor with same Cross Section Stranded max 1 mm²
Conductor Cross Section Solid min 0.2 mm²
Conductor Cross Section Solid max 4 mm²
Stripping Length 10 mm

DIMENSIONS

Height with DIN 35 x 15 mm rail 57 mm
Height with DIN 35 x 7.5 mm rail 49.5 mm
Length 72.7 mm
Width (Thickness) 5 mm

Ordering Code

CAT. NO. DESCRIPTION STD. PACK
CXDL2.5 2.5 sq.mm 2 Level Compact Spring Clamp Terminal Block in Grey Colour 50
CXDL2.5BU 2.5 sq.mm 2 Level Compact Spring Clamp Terminal Block in Blue Colour 50
CXDL2.5BK 2.5 sq.mm 2 Level Compact Spring Clamp Terminal Block in Black Colour 50
CXDL2.5GN 2.5 sq.mm 2 Level Compact Spring Clamp Terminal Block in Green Colour 50
CXDL2.5R 2.5 sq.mm 2 Level Compact Spring Clamp Terminal Block in Red Colour 50
CXDL2.5Y 2.5 sq.mm 2 Level Compact Spring Clamp Terminal Block in Yellow Colour 50
