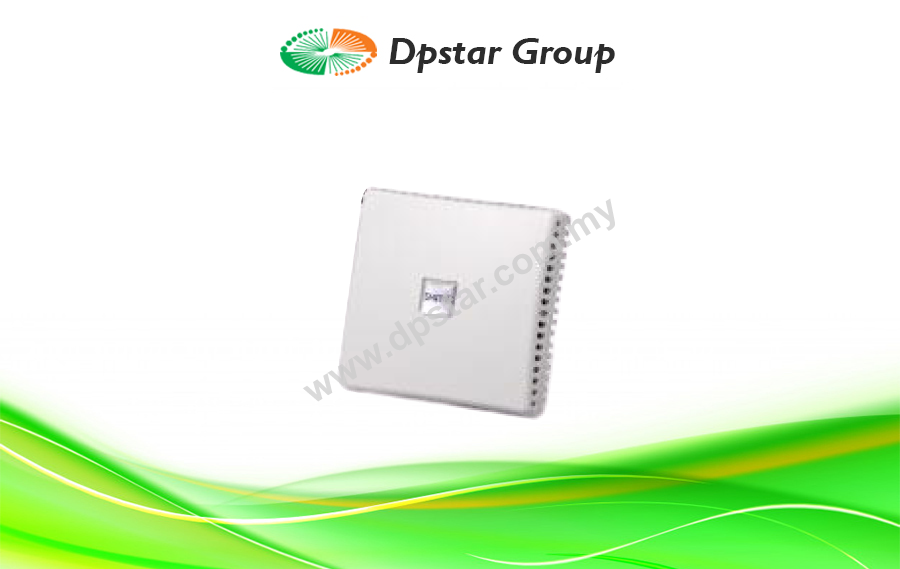

Space Mount Temperature & Humidity Transmitter – Shinyei THT-N163B-A2

Features

  • Various mount type and output signal are available.
  • Long-term stability.
  • Temperature compensated.
Enquiry
Category:
Love0

THT-N Series for optimal detector for indoor measurement of temperature and humidity system come with reliability proven marco-molecule humidity sensor. And temperature sensor is a Pt100 for either voltage signal output or current signal output (4~20 mA) to meet with their application and circuit properly.

Specification

Model THT-N163B (Space Mount)
Operating range Temperature -40℃～＋60℃
Humidity 99%rh or less, non condensing(sensor probe)
95%rh or less, non condensing(electronic)
Accuracy Temperature ±0.3℃（@25℃）
Humidity ±2.0%rh、±3.0%rh、±5.0%rh（@25℃）
Analog output signal Temperature (0-50℃) 0-5V, 0-10V, 4-20mA( 2*2 wire)
Pt100Ω passive
Humidity (0－100%rh) 0-5V, 0-10V, 4-20mA( 2*2 wire)
Sensor element Temperature PT100Ω
Humidity Resistance type
Supply power voltage 12～24VDC
Housing material ABS

Download

Shinyei THT-N163B-A2 Space Mount Temperature & Humidity Transmitter-DpstarGroup
