Solid State Relay – Shimaden PAC04 Series

Features

  • Built-in heat sink & Slim model
  • DIN rail mountable
  • Current Capacity: 10A / 20A / 40A
  • Terminal Cover for greater safety
  • LED indicator turns on when operation
Enquiry
Category:
Love0

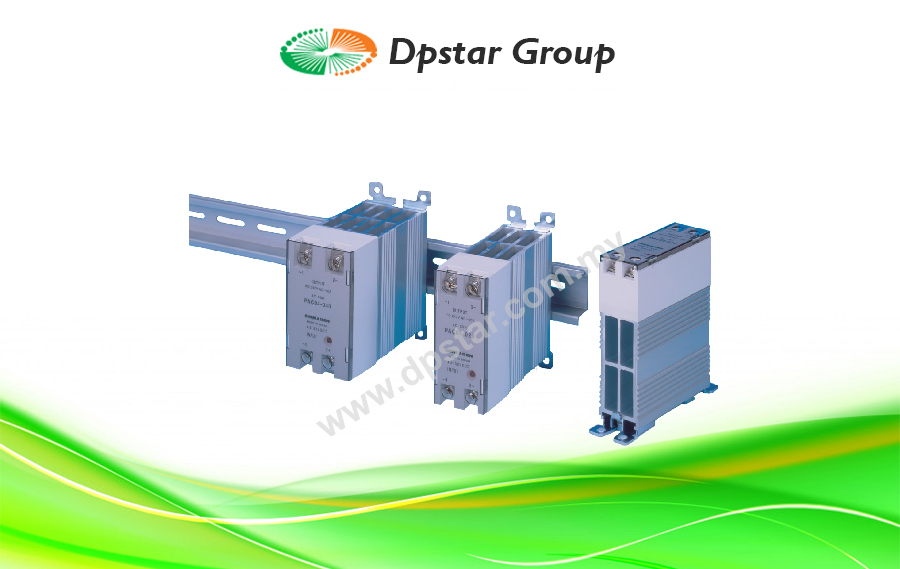

PAC04 Series is a medium power SSR with a maximum load current of 10, 20, and 40 A. It has a slim shape and a radiator is a standard feature. One-touch installation for DIN rail is possible. An action display LED is a standard feature.

Specification

Power Supply 100~240V 50 / 60Hz
Operational Load Voltage Range 50~264V 50 / 60Hz
Current Capacity 10A, 20A, 40A
(Ambient Temperature below 40°C)
Control Input
Control Voltage 4.5~32V DC
Off Voltage 1.0V DC max
Input Impedance 1.5~8kΩ ±20%
(Iin less than 5mA, Operating Temperature 25°C)
Control Element Triac
Control Mode Zero voltage switching
Output Characteristics
Leakage Current (when output ‘OFF’) 12mA max
Voltage Drop (when output ‘ON’) 1.5V max
Minimum Operational Current 100mA
Operational Lamp Red LED lamp
Insulation Resistance Between input/output terminals and housing case 500V DC 100 MΩ min
Dielectric strength Between input/output terminals and housing case 2500V AC 1 minute
Operational Ambient Temperature -20~80°C
Storage temperature -30~100°C
Weight 240g (10A)
420g (40A)
320g (20A)

Ordering Information

ITEM CODE SPECIFICATIONS
Series PAC04- Zero Voltage Switching Control, Solid State Relay with Radiating Fin
Current Capacity 010- 10A
020- 20A
040- 40A
Remarks 0 Without
9 With( Please consult before ordering.)
