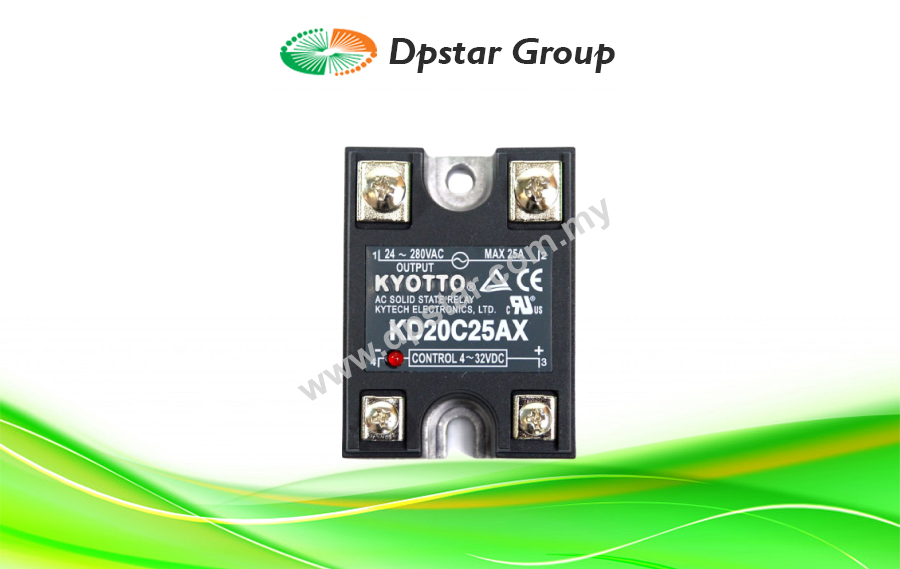

Solid State Relay – Kyotto KD 20 (DC – AC) Series

Features

• Provide high-speed, high-frequency switching operations
• No contact failures
• Generate little noise
• No operation noise





Enquiry
Category:
Love0

A solid-state relay (SSR) is an electronic switching device that switches on or off when a small external voltage is applied across its control terminals. SSRs consist of a sensor which responds to an appropriate input (control signal), a solid-state electronic switching device which switches power to the load circuitry, and a coupling mechanism to enable the control signal to activate this switch without mechanical parts. The relay may be designed to switch either AC or DC to the load. It serves the same function as an electromechanical relay, but has no moving parts.

Application

The most common application of solid state relays is in the switching of an AC load, whether that is to control the AC power for ON/OFF switching, light dimming, motor speed control or other such applications where power control is needed, these AC loads can be easily controlled with a low current DC voltage using a solid state relay providing long life and high switching speeds.

Outline Dimension



Equivalent Circuit



Characteristic Curves

Specification

Model No. Control Voltage Range Must Turn OFF Voltage Input Impedance Max Load Current Load Voltage Range Min Blocking Voltage Max OFF State Leakage Frequency Range Max 1-Cycle Peak Surge
KD20C10AX 4 TO 32 VDC MAX 1.0 VDC 1.5 Kohm 10A 24-280VAC 600VAC LESS 7.5 mA 47-70Hz 100A
KD20C15AX 4 TO 32 VDC MAX 1.0 VDC 1.5 Kohm 15A 24-280VAC 600VAC LESS 7.5 mA 47-70Hz 150A
KD20C25AX 4 TO 32 VDC MAX 1.0 VDC 1.5 Kohm 25A 24-280VAC 600VAC LESS 7.5 mA 47-70Hz 250A
KD20C40AX 4 TO 32 VDC MAX 1.0 VDC 1.5 Kohm 40A 24-280VAC 600VAC LESS 7.5 mA 47-70Hz 400A
KD20C50AX 4 TO 32 VDC MAX 1.0 VDC 1.5 Kohm 50A 24-280VAC 600VAC LESS 7.5 mA 47-70Hz 500A
KD20C75AX 4 TO 32 VDC MAX 1.0 VDC 1.5 Kohm 75A 24-280VAC 600VAC LESS 7.5 mA 47-70Hz 750A
KD20C90AX 4 TO 32 VDC MAX 1.0 VDC 1.5 Kohm 90A 24-280VAC 600VAC LESS 7.5 mA 47-70Hz 900A
KD20C100AX 4 TO 32 VDC MAX 1.0 VDC 1.5 Kohm 100A 24-280VAC 600VAC LESS 7.5 mA 47-70Hz 1000A
Model No. Max OFF State DV/DT Max ON-State Voltage Drop Isolate Impedence Dielectric Strength Input-Output Dielectric Strength Input,Output Case Turn ON Time Turn OFF Time Capacitance In-Out Weight (G)
KD20C10AX 200SEC 2.0VACrms  10⁹ ohm 4000 VACrm 2500 VAC (rms) LESS 2 mSec LESS 1/2 AC CYCLE LESS 15 PF 95 g
KD20C15AX 200SEC 2.0VACrms  10⁹ ohm 4000 VACrm 2500 VAC (rms) LESS 2 mSec LESS 1/2 AC CYCLE LESS 15 PF 95 g
KD20C25AX 200SEC 2.0VACrms  10⁹ ohm 4000 VACrm 2500 VAC (rms) LESS 2 mSec LESS 1/2 AC CYCLE LESS 15 PF 100 g
KD20C40AX 200SEC 2.0VACrms  10⁹ ohm 4000 VACrm 2500 VAC (rms) LESS 2 mSec LESS 1/2 AC CYCLE LESS 15 PF 100 g
KD20C50AX 200SEC 2.0VACrms  10⁹ ohm 4000 VACrm 2500 VAC (rms) LESS 2 mSec LESS 1/2 AC CYCLE LESS 15 PF 100 g
KD20C75AX 200SEC 2.0VACrms  10⁹ ohm 4000 VACrm 2500 VAC (rms) LESS 2 mSec LESS 1/2 AC CYCLE LESS 15 PF 100 g
KD20C90AX 200SEC 2.0VACrms  10⁹ ohm 4000 VACrm 2500 VAC (rms) LESS 2 mSec LESS 1/2 AC CYCLE LESS 15 PF 100 g
KD20C100AX 200SEC 2.0VACrms  10⁹ ohm 4000 VACrm 2500 VAC (rms) LESS 2 mSec LESS 1/2 AC CYCLE LESS 15 PF 100 g

Download
