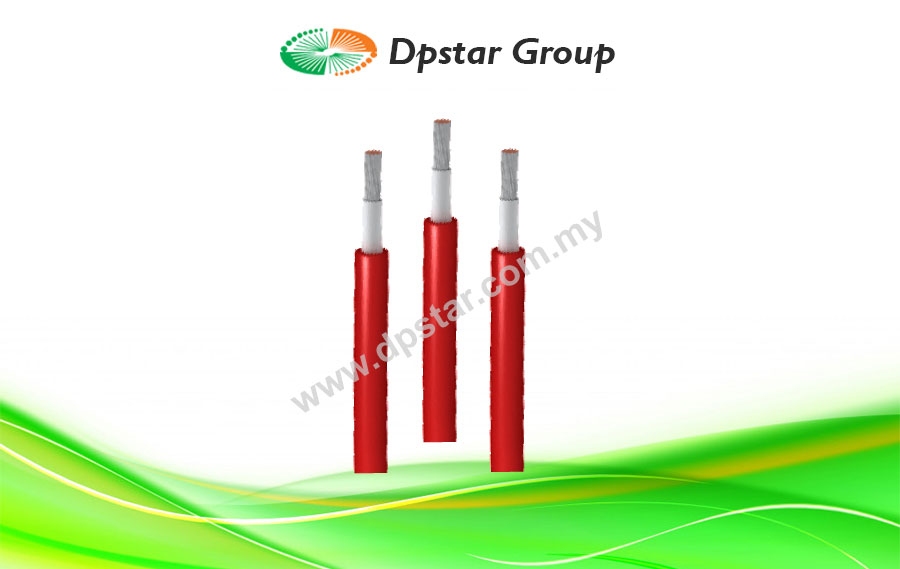

Solar Cable – ZZ-F | H1Z2Z2-K

Features

  • Flexible conductor class 5/6
  • Minimum service temperature: 40°C
  • Maximum service temperature: 120°C
  • Maximum short-circuit temperature: 250°C(max 5s)
  • Minimum bending radius 3x cable diameter
  • Meter by meter marking
  • Flame non-propagation
  • Outdoor installation: permanent
  • Impact resistance AG2 medium impact
  • Water-resistance AD7 immersion
  • Chemical & oil resistance: excellent
  • Low extreme temperature resistance: excellent
  • UV resistant
  • Estimated lifetime 30 years
  • Grease & mineral oils resistance
  • Abrasion resistance
Enquiry
Category:
Love0

ZZ-F / H1Z2Z2-K is a solar PV cable, TÜV & EN certified, specially designed for the connection of photovoltaic panels. This versatile single-conductor cable is designed to meet the varying needs of the solar industry. Highly flexible cable, compatible with all major connectors. Suitable for wet, damp, and humid locations.

Conductor
Class 5 (flexible) tinned copper, based on EN 60228 and IEC 60228.

Insulation
Low smoke zero halogen (LSZH) rubber.

Outer sheath
Low smoke zero halogen (LSZH) rubber, red or black colour.

Applications
Flexible cables for mobile service and for fixed installations. Specially designed for the connection of photovoltaic panels.

Packaging
Available in rolls (length of 50 and 100 m) and coils.

Specification

Dimensions
Cross section (mm2) Diameter (mm2) Weight (Kg/km) Open Air (A) Inst. On surface (A) Inst. Adjoining to surface (A) Voltage drop (V/A · km)
1 x 2,5 4.8 42 41 39 33 23
1 x 4 5.3 57 55 52 44 14.3
1 x 6 5.9 76 70 67 57 9.49
1 x 10 7 120 98 93 79 5.46
1 x 16 8.2 179 132 125 107 3.47
1 x 25 10.8 294 176 167 142 2.23
1 x 35 11.9 390 218 207 176 1.58

Download

ZZ-F | H1Z2Z2-K Solar Cable-DpstarGroup
