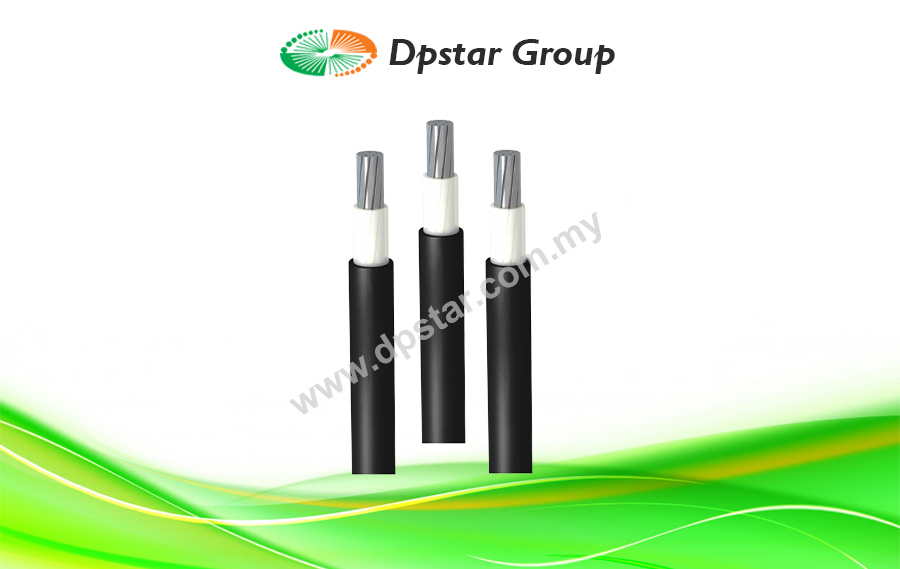

Solar Cable – PV AL 2kV / PV Wire

Features

  • UL-certified cable
  • Suitable for all types of underground and open-air installations.
  • This cable is specially designed for connections in large-scale rooftops and ground farms.
  • Solar PV installations.
  • DC feeders cable.
Enquiry
Category:
Love0

PV AL 2kV / PV Wire is a UL-certified cable suitable for all types of underground and open-air installations. This cable is specially designed for connections in large-scale rooftops and ground farms.

Conductor
Compacted aluminum (8.000 series).

Insulation
Low smoke Halogen Free (LSHF), rubber (XLEVA type according to UL).

Outer Sheath
Low smoke Halogen Free (LSHF), rubber (XLEVA type according to UL).
Black colour.

Specification

Mechanical Performance
Impact Resistance AG2 Medium severity
Minimum Bending Radius x5 cable diameter
Thermal Performance
Maximum Service Temperature 120ºC
Maximum Short-Circuit Temperature 250ºC (max. 5 s)
Minimum Service Temperature -40ºC
Chemical Performance
Chemical & Oil Resistance Excellent
Grease & Mineral Oils Resistance Excellent
UV Resistant based on EN 50618 and UL 2556
Fire Performance
Low Corrosive Gases Emission based on UNE-EN 60754-2 and IEC 60754-2
Low Smoke Emission based on UNE-EN 61034 and IEC 61034.: Light transmittance > 60%
Reduced Halogen Emission Chlorine <15%
Water Performance
Water Presence AD8 submerged
