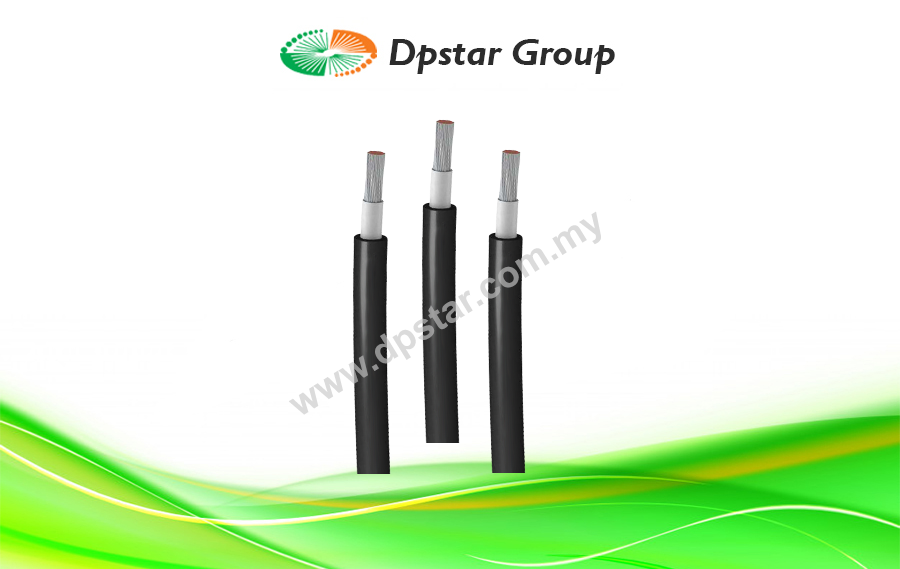

Solar Cable – H1Z2Z2-K Dual

Features

  • Suitable for photovoltaic installations.
  • Highly flexible cable.
  • Suitable for wet, damp, and humid locations.
  • Specially indicated for the connection between photovoltaic panels, and from the panels to the inverter.
  • It is a dual-certified cable as requested by the leading global manufacturers of solar panels and junction boxes.
Enquiry
Category:
Love0

H1Z2Z2-K PV Dual cable is suitable for photovoltaic installations. Highly flexible cable, suitable for wet, damp and humid locations. Specially indicated for the connection between photovoltaic panels, and from the panels to the inverter. It is a dual certified cable as requested by the leading global manufacturers of solar panels and junction boxes.

Conductor
Electrolytic annealed tinned copper conductor, Class 5 (flexible) according to IEC 60228 and EN 60228.

Insulation
Low smoke Halogen Free (LSHF) rubber, XLEVA type according to UL.

Outer Sheath
Low smoke Halogen Free (LSHF) rubber, XLEVA type according to UL.
Black colour.

Packaging
Available in rolls (lengths of 100 m) and reels.

Specification

Electrical Performance
Low Voltage CA 0,6/1kV · CC: 1,8 kV ·UL2000V Type PV/RHW-2 · UL 600 V USE-2
Mechanical Performance
Impact Resistance AG2 Medium severity
Minimum Bending Radius x5 cable diameter
Thermal Performance
Maximum Service Temperature 120ºC
Maximum Short-Circuit Temperature 250ºC (max. 5 s)
Minimum Service Temperature -40ºC
Chemical Performance
Chemical & Oil Resistance Excellent
Grease & Mineral Oils Resistance Excellent
UV Resistant based on EN 50618 and UL 2556
Fire Performance
Flame Non-Propagation based on UNE-EN 60332-1 and IEC 60332-1
Low Corrosive Gases Emission based on UNE-EN 60754-2 and IEC 60754-2
Low Smoke Emission based on UNE-EN 61034 and IEC 61034.: Light transmittance > 60%
LSZH (Low Smoke Zero Halogen) based on UNE-EN 60754-1 and IEC 60754-1.
Water Performance
Water Resistance AD8 Submersion

Download

H1Z2Z2-K Dual – Solar Cable-DpstarGroup
