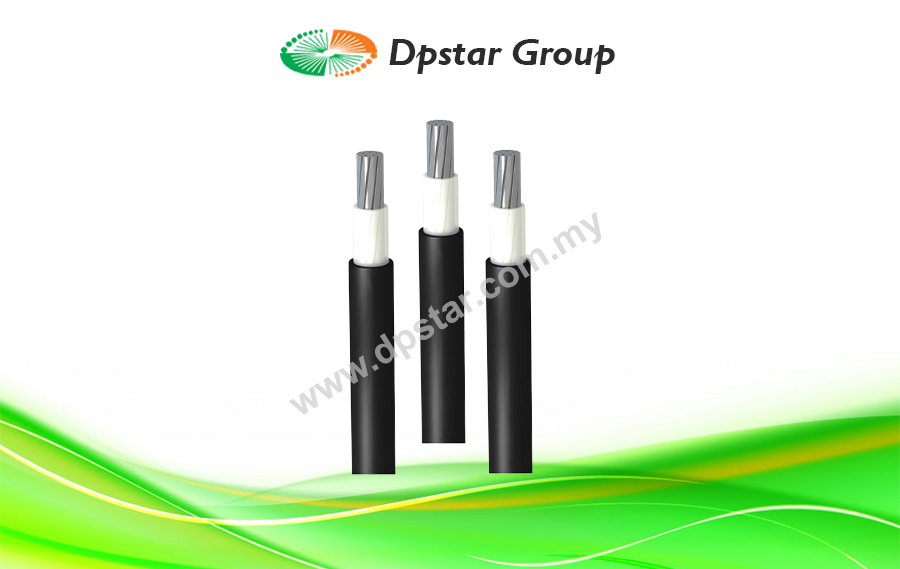

Solar Cable – AL 1500V

Features

  • Suitable for all types of underground and open-air solar installations.
  • Recommended for connections between string boxes and photovoltaic inverters in large-scale rooftops or ground farms.
  • Solar PV installations.
  • Heavy impact and armored versions are also available.
Enquiry
Category:
Love0

PV DC Feeder Aluminium 1500 PV cable is suitable for all types of underground and open-air solar installations. This cable is recommended for connections between string boxes and photovoltaic inverters in large-scale rooftops or ground farms.

Conductor
Aluminium conductor, class 2 according to EN 60228 and IEC 60228.

Insulation
Cross-linked polyethylene insulation, type XLPE according to IEC 60502-1. Natural colour.

Outer Sheath
Special flexible UV resistant PVC, type ST2 according to IEC 60502-1.
Black colour.

Specification

Electrical Performance
Low Voltage CA 01,5/1,5kV · ( 1,8) kV DC
Mechanical Performance
Impact Resistance AG2 Medium severity
Minimum Bending Radius x5 cable diameter
Thermal Performance
Maximum Service Temperature 90ºC
Maximum Short-Circuit Temperature 250ºC (max. 5 s)
Minimum Service Temperature -40ºC (fixed and protected installations)
Chemical Performance
Chemical & Oil Resistance Good
Grease & Mineral Oils Resistance Good
Fire Performance
Flame Non-Propagation based on UNE-EN 60332-1 and IEC 60332-1.
Water Performance
Water Resistance AD8 Submersion

Download

AL 1500V Solar Cable-DpstarGroup
