Silicone Rubber Insulated Glass-Yarn Braided Cables – Ninomiya LKGB

Silicon-rubber insulated glass-yarn braided wire (LKGB series) is made of tin-coated annealed copper wires, coated with silicone-rubber and braided with glass fiber. Maximum operating temperature of this series is 180 ℃. And there are three types in the series, rated at 600V, 3300V and 660V respectively. LKGB(600V) is type-approved and conforms to the regulations of Electrical Appliance and Material Control Law.

Enquiry
Categories: , , ,
Love0

Silicon-rubber insulated glass-yarn braided wire (LKGB series) is made of tin-coated annealed copper wires, coated with silicone-rubber and braided with glass fiber. Maximum operating temperature of this series is 180 ℃. And there are three types in the series, rated at 600V, 3300V and 660V respectively. LKGB(600V) is type-approved and conforms to the regulations of Electrical Appliance and Material Control Law.

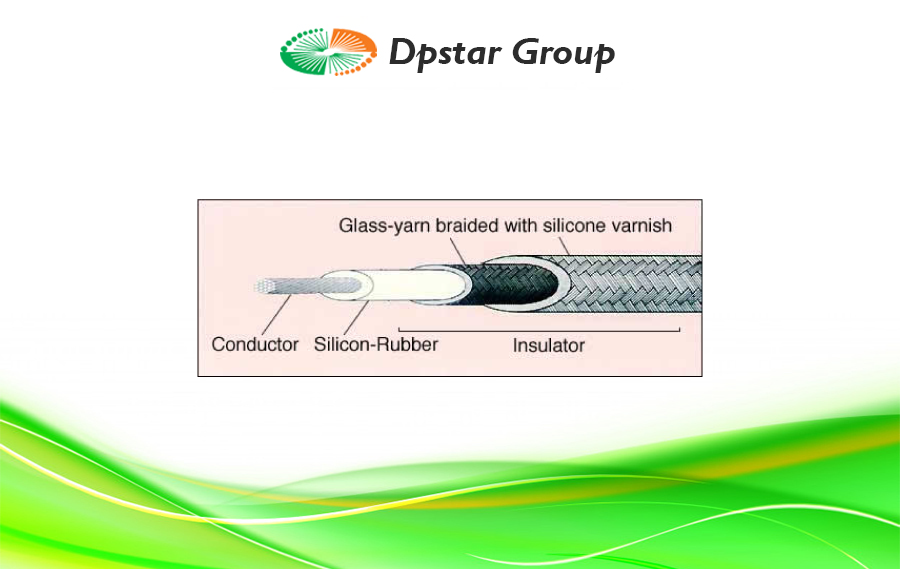

Construction

  • Conductor
    Basically conductor is a stranded wire made of several tin-coated annealed copper elemental wires which correspond with JIS C 3152 (Tin-coated annealed copper wires).
    Construction of the conductor is shown in below table. Nickel-coated annealed copper wire also can be a conductor.
  • Insulator
    Conductor is coated with silicon-rubber evenly with thickness shown in below table, covered with glass-yarn, and a material like silicone varnish is baked on the surface to make an insulator.
  • Color
    Color identification is made by coloring silicone varnish. The standardized color is white. Black, red, green, yellow, brown and blue are also available.

Application

Widely used as leading wires of generators, motors or other electrical equipments.

Specification

Parts No. Conductor Insulation thickness Braind shielding Thickness Finished OD Conductor resistance Insulation resistance Test voltage (AC 1 min.)
Sectional area mom. Construction No. of wires/Dia. of elemental wire OD
mm2 No. of wires/mm mm mm mm mm Ω/Km MΩ・Km V
LKGB(600V) conforms to the regulation of Product Safety Electrical Appliance & Materials
8451LA00N 0.75 30/0.18 1.1 1.1 0.5 4.3 25.8 100 1,500
8551LA00N 1.25 50/0.18 1.5 1.1 0.5 4.7 15.5 100 1,500
8651LA00N 2 37/0.26 1.8 1.1 0.5 5 9.91 100 1,500
8751LA00N 3.5 45/0.32 2.5 1.1 0.5 5.7 5.38 100 1,500
8851LA00N 5.5 35/0.45 3.1 1.1 0.5 6.3 3.46 90 1,500
8951LA00N 8 50/0.45 3.7 1.1 0.5 6.9 2.45 80 1,500
9051LA00N 14 88/0.45 4.9 1.1 0.5 8.3 1.39 60 2,000
9151LA00N 22 7/20/0.45 7 1.4 0.6 11 0.892 70 2,000
9251LA00N 30 7/27/0.45 8.1 1.4 0.6 12.1 0.661 60 2,000
9351LA00N 38 7/34/0.45 9.1 1.4 0.6 13.1 0.525 50 2,500
9451LA00N 50 19/16/0.45 10.4 1.8 0.6 15.2 0.411 60 2,500
9551LA00N 60 19/20/0.45 11.6 1.8 0.6 16.2 0.329 50 2,500
9651LA00N 80 19/27/0.45 13.5 1.8 0.7 18.5 0.243 50 2,500
9751LA00N 100 19/34/0.45 15.2 2.3 0.7 21.2 0.193 50 2,500
LKGB(3,300V)
8951LC00N 8 50/0.45 3.7 3 0.6 10.9 2.45 150 8,000
9051LC00N 14 88/0.45 4.9 3 0.6 12.1 1.39 150 8,000
9151LC00N 22 7/20/0.45 7 3 0.6 14.1 0.892 100 8,000
9251LC00N 30 7/27/0.45 8.1 3 0.6 15.3 0.661 90 8,000
9351LC00N 38 7/34/0.45 9.1 3 0.6 16.3 0.525 80 8,000
9451LC00N 50 19/16/0.45 10.4 3.5 0.7 18.8 0.411 80 8,000
9551LC00N 60 19/20/0.45 11.6 3.5 0.7 20.1 0.329 70 8,000
LKGB(6,600V)
8951LD00N 8 50/0.45 3.7 5 0.6 14.9 2.45 200 15,000
9051LD00N 14 88/0.45 4.9 5 0.6 16.1 1.39 200 15,000
9151LD00N 22 7/20/0.45 7 5 0.7 18.4 0.892 150 15,000
9251LD00N 30 7/27/0.45 8.1 5 0.7 19.5 0.661 150 15,000
9351LD00N 38 7/34/0.45 9.1 5 0.7 20.5 0.525 100 15,000

Download

Ninomiya LKGB – Silicone Rubber Insulated Glass-Yarn Braided Cables-DpstarGroup
