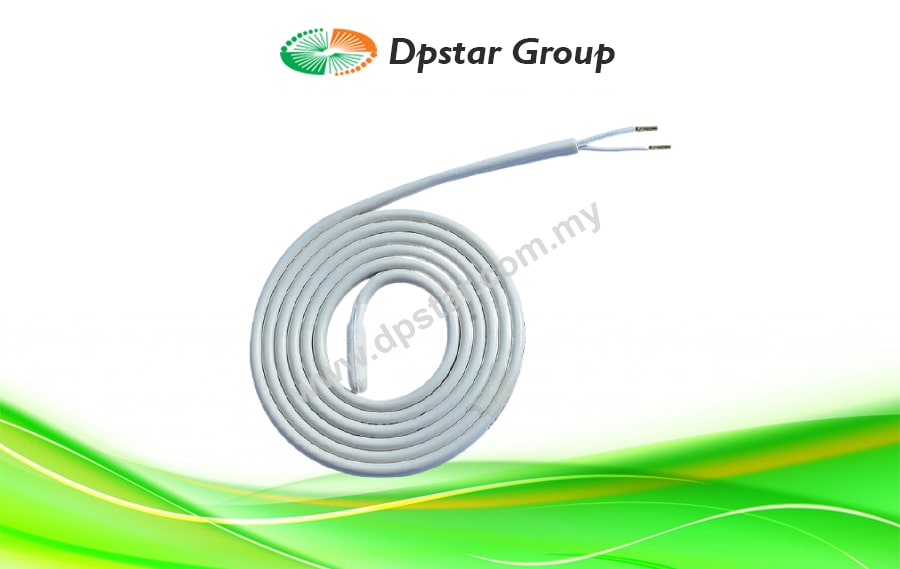

Silicon Insulated Drain-line Heater Cables – Flexelec CSC2

Through our deep knowledge and experience, we are able to supply electrical heat tracing systems and solutions to achieve both dynamic heat up and temperature maintenance applications in Oil and Gas, Palm Oil, Food Industry, and others. To maintain a static or a moving product at an even temperature, Dpstar provides a wide range of heating cables. We understand your requirements and we are specialists in Electrical Heat Tracing solutions and provide reliable systems and solutions. Dpstar is responsible, trustworthy, and accountable you can count on.

FLEXDRAIN drain-line heaters include a heating part and a cold power cable at one end. These drain-line heaters are used in the refrigeration industry for freeze protection of drain pipes and for condensate in the drain pan. Extremely flexible, these drain heating cables are quick, safe and easy to use. Standard sizes or designs as requested these heater cables solve many of the problems in the installation you may be faced with.

CSC2 heaters cables are designed to be laid inside pipes for draining water from thawing refrigeration equipment installed in cold rooms. They operate only during thawing cycles. To ensure that these heating elements enjoy a long service life, we recommend using a control device. Note: The most commonly used power rating is 50 W/m. However, for plastic pipes, we strongly recommend using the 40W/m range.

Characteristics

• Fully sealed.
• Double insulation.
• Extremely flexible.
• Voltage 230 V as standard.
• Power cable: Length 1m.
• Special production on request.

Applications

• Allow water from defrost cycles to flow of the evaporators with heating cables.
• Allow water from defrost cycles to flow using heating cables.
• Protect fluids against ice on refrigerated systems with heating cables.
• Prevent ice from forming of the drain pan with heating cable.
