This type is “U”-shaped, consisting of a combination of one each of the EREMA types E and F respectively. It is a single-phase heating element with both cold ends in one direction, facilitating increased furnace design flexibility, because connection terminals can be centered on one side. In addition, a furnace with an energy saving structure can be built because the number of heating element holes on the furnace can be reduced compared with the E or F types.

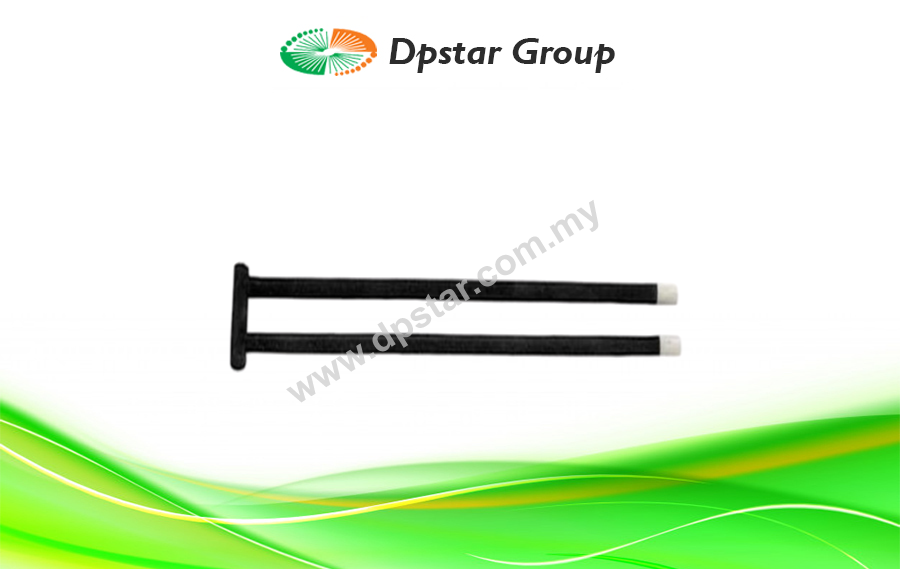

Silicon Carbide Heating Elements – Maltec-H Type U
Features
- Withstands as high as 1600 (surface temperature)
- Generates high heat output per unit surface area, approximately 5-10 times the output of Nichrome wire.
- High strength and excellent shock resistance.
- Chemically very stable.
- Heat source is free of noise and air pollution.
- Various coating products are available for protection against water vapor and harmful gas atmosphere.
- Easy to handle.
- Standard: IEC 60675
Specification
| Characteristics Items | Unit | Type | ||||
| U | U3 | M | E2, F2, U2 | SDL | ||
| Apparent Density | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
| Bulk Density | 2.48 | 2.5 | 2.48 | 2.58 | 2.48 | |
| Apparent Porosity | % | 23 | 22 | 23 | 20 | 23 |
| Bending Strength | Mpa at 25°C | 50 | 70 | 50 | 60 | 50 |
| Specific Heat | KJ/KG · °C at 25°C ~ 1300°C | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
| Heat Conductiviity | W/m · °C at 1000°C | 14 ~ 19 | 14 ~ 19 | 14 ~ 19 | 14 ~ 19 | 14 ~ 19 |
| Specific Resistance | Ω cm at 1000°C | 0.08 | 0.10 | 0.08 | 0.08 (E2, U2) |0.10 (F2) | 0.08 |
| Coefficient of Thermal Expansion | 1000°C (x10⁻⁶/°C | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 |
| Max operating temperature in the furnace chamber | °C | 1400 | 1400 | 1400 | 1400 | 1400 |
| Standard | IEC 60675 | |||||
