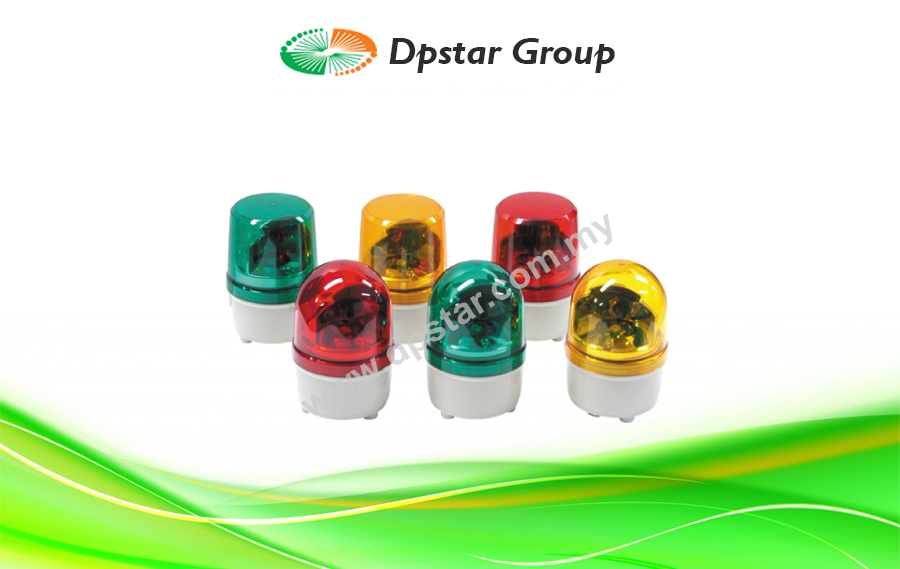

Turn light – Hanyoung Nux TL100

Features

– Long life expectancy due to the flush type HID LED light source
– Excellent diffusibility by applying the rotating reflector (exclusive for LED)
– Simple wiring by applying the terminal method
– Built in the rotating Continuous light and 90dB single melody electrical buzzer.
– Power supply voltage 24 V d.c/a.c or 100 – 240 V a.c 50 – 60 ㎐.

Enquiry
Categories: , , ,
Love0

Features

– Long life expectancy due to the flush type HID LED light source
– Excellent diffusibility by applying the rotating reflector (exclusive for LED)
– Simple wiring by applying the terminal method
– Built in the rotating Continuous light and 90dB single melody electrical buzzer.
– Power supply voltage 24 V d.c/a.c or 100 – 240 V a.c 50 – 60 ㎐.

Specification

Model TL100-AC51 TL100-FC51 TL100-AA11 TL100-FA11
Function Rotating continuous light Rotating continuous light,
buzzer		 Rotating continuous light Rotating continuous
light, buzzer
Dimension Ø100 Dimension
Power supply voltage 24 V d.c / a.c 100 – 240 V a.c. 50 – 60 ㎐
Current consumption Max 3.2 W Max 5.5 W
Rotating speed Approx 180 times/min (reflector)
Light source LED (1 Watt)
Buzzer volume Approx 90 ㏈ (1 m distance)
Cap material Polycarbonate (P.C)
Body Heat – resistant ABS resin
Cap color Red, Yellow, Green
Degree of protection IP53

Ordering Code

Model Code Description
TL100- Turn light (Ø100)
Appearance P Round cap direct mounting type
F Rectangular cap direct mounting type
Operation function A Rotating continuous light
F Rotating continuous light and buzzer
Power supply voltage C51 24 V d.c/a.c 50 – 60 ㎐
C41 12 V d.c/a.c 50 – 60 ㎐ (※ Order-made)
A11 100 – 240 V a.c 50 – 60 ㎐
Cap color R Red
Y Yellow
G Green

Download

Hanyoung Nux TL100 Bulb type turn light-DpstarGroup
