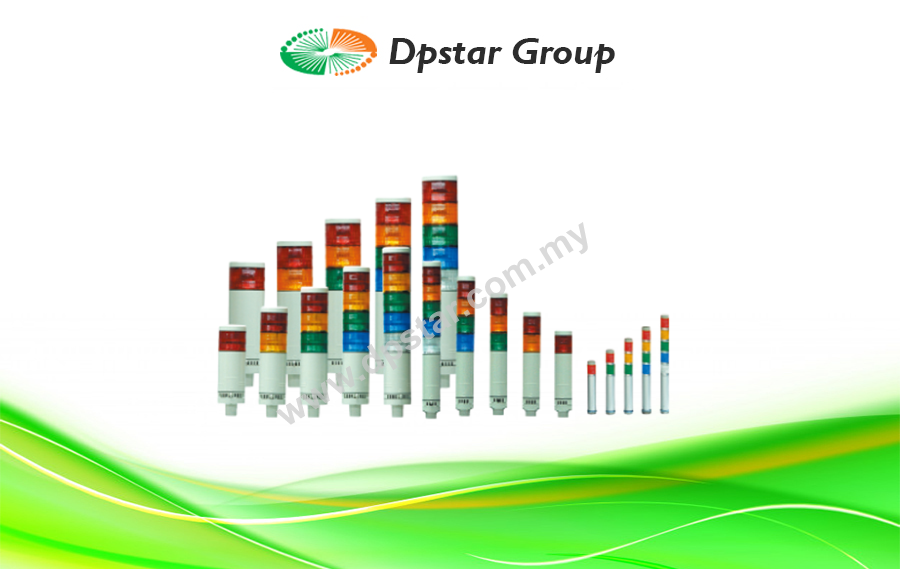

Sign tower – Hanyoung Nux STL

Features

– Ø25 cylinder type, suitable design for the small machine and narrow space
– Long life expectancy due to the HID LED light source
– 1~5 modules stacking structure and colors (5 kinds)
– Install the aluminum pipe directly, simple installation structure design
– Only for continuous light so economical price
– Protective structure IP 54

Enquiry
Categories: , , ,
Love0

Features

– Ø25 cylinder type, suitable design for the small machine and narrow space
– Long life expectancy due to the HID LED light source
– 1~5 modules stacking structure and colors (5 kinds)
– Install the aluminum pipe directly, simple installation structure design
– Only for continuous light so economical price
– Protective structure IP 54

Specification

STL series (Ø25)

Model STL025-D511 STL025-D512 STL025-D513 STL025-D514 STL025-D515
Appearance
Number of stacks 1 stack 2 stack 3 stack 4 stack 5 stack
Diameter size Ø25 (Aluminum pipe)
Power supply voltage 24 V d.c
Power consumption approx. less than 4W (5 stacks standard, 0.6W for each stacks)
Light source LED
Light type Continuous light only
Radiating angle 360°
Lens material Polycarbonate (P.C)
Lens color red, yellow, green, blue and white
Degree of protection IP54

STL series (Ø40, Ø60, Ø80)

Model STL040 – STL060 – STL080 –
Appearance
Diameter size Ø40 Ø60 Ø80
Function Continuous light only, continuous light, flashing light, Buzzer (selected by the external signal)
Number of stacks 1 ~ 5 stack
Flashing time 60 times / 1min
Buzzer melody type Short beeping / Beeping (Volume of buzzer melody spreads out to 1m)
 : PLAY    : STOP  ※ Please press button to listen buzzer
Buzzer melody volume 75 dB 85 dB
Power supply voltage 24 V d.c / a.c (dual usage), 100 – 240 V a.c. 50 – 60 ㎐
Power consumption Approx less than 8 W (5th stack standard, 1.2W for each stacks)
Light source LED
Radiating angle 360°
Lens material Polycarbonate (P.C)
Pipe material Aluminum
Lens color Red, yellow, green, blue and white
Ambient temperature -5 ~ 50 ℃
Ambient humidity 35 – 8/5 % RH
Degree of protection IP54



Ordering Code

STL series (Ø25)

Model Code Description
STL – Sign tower
Diameter size 025 Ø25 cylinder type
Power supply voltage D51 24 V d.c (L.E.D light source)
Stacking modules 1 1 stack (Red)
2 2 stack (Red, green)
3 3 stack (Red, yellow, green)
4 4 stack (Red, yellow, green, blue)
5 5 stack (Red, yellow, green, blue, white)
Polarity N NPN (Common Anode)
P PNP (Common Cathode)

※ Color of modules can be changed at customer’s request

※ L type supporter sold separately



STL series (Ø40, Ø60, Ø80)

Model Code Description
STL – Sign tower (LED light source)
Diameter size 040 Ø40 cylinder type
060 Ø60 cylinder type
080 Ø80 cylinder type
Function A Continuous light only
F Continuous light, flashing light and buzzer (selected by the external signal)
Power supply voltage C51 24 V d.c / a.c 50 – 60 ㎐ (dual usage)
A11 100 – 240 V a.c 50 – 60 Hz
Stacking modules 1 1 stack (Red)
2 2 stack (Red, green)
3 3 stack (Red, yellow, green)
4 4 stack (Red, yellow green, blue)
5 5 stack (Red, yellow, green, blue, white)
Supporter selection D Direct installation (bolt fixing installation)
L L type supporter
M Plastic round supporter
Optional Selecting type supporter (STM)
Elbow type supporter installation (ETM)

※ Composition of stacking modules: Upper side (1st stack) to the lower side.

Download

Hanyoung Nux STL (Ø25-Ø40-Ø60-Ø80) LED type Sign Tower-DpstarGroup
